Centrifuges Guide
HANDZENTRIFUGE SMALL CENTRIFUGE
Ideal for field applications where there is no source of power or for use in education. Available with round bottom or conical tube rotor up to 15 ml tube capacity.
Max. Capacity:
4 x 15 mL
Max. RPM/RCF:
3,000/1,298 (conical)
Rotor Types:
Round and Conical

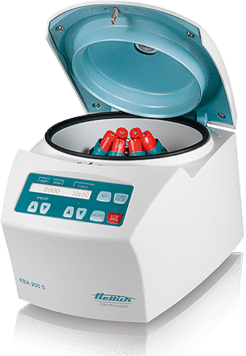

EBA 200 SMALL CENTRIFUGE
Ideal for small clinical applications with built-in, 8-place, angle rotor. Model ‘S’ version for rapid separation.
Max. Capacity:
8 x 15 mL
Max. RPM/RCF:
8,000/6,153 (200 S)
Temp. Control:
Ambient
EBA 270 SMALL CENTRIFUGE
Small centrifuge with a built-in, 6-place, swing-out rotor. Best for gel/SST tubes and urine tubes.
Max. Capacity:
6 x 15 mL
Max. RPM/RCF:
4,000/2,254
Temp. Control:
Ambient
EBA 280 SMALL CENTRIFUGE
Small clinical centrifuge ideal for serology and the rapid separation of your STAT chemistry, coag. and pediatric samples in a 6-place, swing-out rotor at up to 5,071 x g.
Max. Capacity:
6 x 50 mL
Max. RPM/RCF:
6,000/5,071
Temp. Control:
Ambient
HAEMATOKRIT 200 SMALL CENTRIFUGE
With a high RCF of 16,060 the 24-place rotor provides fast results in just 7 mins. Also available with a 20-place, buffy coat analysis rotor.
Max. Capacity:
24 Capillaries
Max. RPM/RCF:
13,000/16,060
Temp. Control:
Ambient
MIKRO 185 MICRO CENTRIFUGE
Run up to 24 microliter tubes, 12 pediatric tubes, or 18 spin column kits in a compact frame. High-performance with a max RCF of up to 18,845.
Max. Capacity:
24 x 1.5/2.0 mL
Max. RPM/RCF:
14,000/18,845
Temp. Control:
Ambient
MIKRO 200 MICRO CENTRIFUGE
Up to 30 micro tubes with high RCF for best sample results. Specialty rotor designed for spin-column kits. 4-place PCR strip rotor available.
Max. Capacity:
30 x 1.5/2.0 mL
Max. RPM/RCF:
15,000/21,382
Temp. Control:
-10 to +40ºC (200 R)
MIKRO 220 MICRO CENTRIFUGE
Up to 48 micro tubes with bio-containment. Wide rotor variety for tubes up to 50 ml. Spin lipemic samples for a fraction of the cost.
Max. Capacity:
48 x 1.5-2.0 mL, 6 x 50 ml
Max. RPM/RCF:
18,000/31,514
Temp. Control:
-20 to +40ºC (220 R)
ROTOFIX 32 A BENCHTOP CENTRIFUGE
Rugged and simple design for uncomplicated performance. Ideal for all standard tubes up to 100 ml and specialty tubes such as cytology clips/funnels and chrome bath tubes.
Max. Capacity:
4 x 100 mL / 6 x 94 mL
Max. RPM/RCF:
6,000/4,226
Temp. Control:
Ambient
UNIVERSAL 320 BENCHTOP CENTRIFUGE
Compact footprint, only 16 in. wide, with or without temperature control. Capable of spinning a variety of standard tubes, plates, cytology clips and bottles (up to 200 ml), the UNIVERSAL 320 centrifuge offers true all-in-one capability.
Max. Capacity:
4 x 200 mL / 6 x 94 mL
Max. RPM/RCF:
15,000/21,382
Temp. Control:
-20 to +40ºC (320 R)

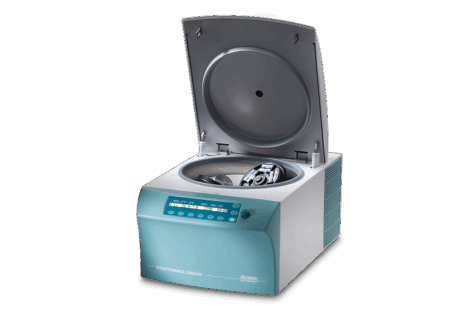

ROTINA 380 BENCHTOP CENTRIFUGE
The ROTINA 380 requires minimal bench space at a width of only 18 in. Capable of spinning up a wide variety of tubes, the ROTINA 380 vastly outperforms its modest size.
Max. Capacity:
4 x 290 mL
Max. RPM/RCF:
15,000/24,000
Temp. Control:
-20 to +40 ºC (380 R)
ROTINA 420 BENCHTOP CENTRIFUGE
For large sample volumes, yet not overly large in size. Featuring Versa-Rotor for tubes, bottles and plates eliminating the need to change, purchase or store additional rotors.
Max. Capacity:
4 x 600 mL
Max. RPM/RCF:
15,000/24,400
Temp. Control:
-20 to +40 ºC (420 R)
ROTANTA 460 BENCHTOP CENTRIFUGE
High-capacity and variety for the most demanding workflows. Featuring our Versa-Rotor for tubes, bottles and plates eliminating the need to change, purchase additional rotors.
Max. Capacity:
4 x 1,000 mL
Max. RPM/RCF:
15,000/24,400
Temp. Control:
-20 to +40ºC (460 R)
ROTOFIX 46 BENCHTOP CENTRIFUGE
Industrial centrifuge for a wide vairety of standard and specialty tubes such as ASTM, Babcock, Schlenk and Chrome bath.
Max. Capacity:
4 x 290 ml | 4 x 100 ml
Max. RPM/RCF:
4,000/3,095 | 2,000/984
Temp. Control:
+10 °C to +90 °C (46 H)
ROTANTA 460 RF FLOOR-STANDING CENTRIFUGE
Floor model, refrigerated centrifuge offering high-capacity while saving bench space. Also accommodates small pediatric blood bags.
Max. Capacity:
4 x 1,000 mL
Max. RPM/RCF:
15,000/24,400
Temp. Control:
-20 to +40ºC
ROTIXA 500 RS FLOOR-STANDING CENTRIFUGE
Entry into whole blood processing. Spin up to (4) 1L blood bags or 200 blood tubes. Robust and steady temperature control for best sample integrity.
Max. Capacity:
4 x 1,000 mL
Max. RPM/RCF:
11,500/18,038
Temp. Control:
-20 to +40ºC
ROTO SILENTA 630 RS FLOOR-STANDING CENTRIFUGE
Engineered for whole blood processing and large sample volumes. both single and double buckets for 6 or 12 positions within the same rotor.
Max. Capacity:
6 x 2,000 mL
Max. RPM/RCF:
6,000/6,520
Temp. Control:
-20 to +40ºC
MIKRO 220 Robotic AUTOMATION CENTRIFUGE
Compact for small volumes with high-speed rotor for up to 18,516 x g, 90° swing-out rotors for microliter and HPLC tubes. Rotor positioning accuracy and continuous status communication.
Max. Capacity:
24 x 1.5/2.0 mL
Max. RPM/RCF:
13,000/18,516
Temp. Control:
Ambient
ROTINA 380 Robotic AUTOMATION CENTRIFUGE
The ROTINA 380 Robotic models are available as air-cooled or cooled benchtop centrifuges and as cooled underbench units. They centrifuge microtitre plates and blood collection tubes fast and reliably.
Max. Capacity:
80 blood tubes/12 plates
Max. RPM/RCF:
5,100/4,696
Temp. Control:
-20 to +40ºC (optional)
ROTANTA 460 Robotic AUTOMATION CENTRIFUGE
Industry leading automatable centrifuge is the only high g-force, high capacity model on the market.
Max. Capacity:
80 blood tubes/16 plates
Max. RPM/RCF:
6,200/6,446
Temp. Control:
-20 to +40ºC
EBA 280 S SMALL CENTRIFUGE
High-performance version of the EBA 280 idealfor rapid separation of your STAT chemistry, coag. and pediatric samples in a 6-place, swing-out rotor at up to 5,071 x g.
Max. Capacity:
6 x 50 mL
Max. RPM/RCF:
6,000/5,071
Temp. Control:
Ambient

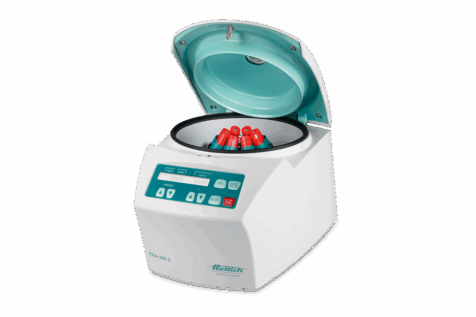

EBA 200 S SMALL CENTRIFUGE
The EBA 200 S provides rapid separation for a quick turnaround of your STAT chemistry, coag. and pediatric samples. Achieve consistent platelet counts in just minutes. Max. speeds of 8,000 RPM in a fixed-angle rotor.
Max. Capacity:
8 x 15 mL
Max. RPM/RCF:
8,000/6,153
Temp. Control:
Ambient

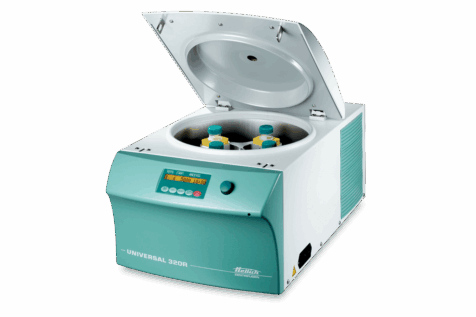

UNIVERSAL 320 R BENCHTOP CENTRIFUGE
Refrigerated version of the UNIVERSAL 320 with a compact footprint of only 16 in. wide. Capable of spinning a variety of standard tubes, plates, cytology clips and bottles (up to 200 ml), the UNIVERSAL 320 centrifuge offers true all-in-one capability.
Max. Capacity:
4 x 200 mL / 6 x 94 mL
Max. RPM/RCF:
15,000/21,382
Temp. Control:
-20 to +40ºC (320 R)

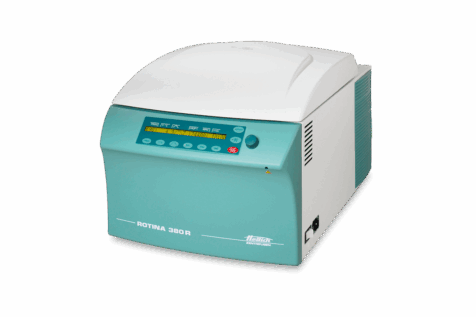

ROTINA 380 R BENCHTOP CENTRIFUGE
Refrigerated version of the ROTINA 380 requires minimal bench space at a width of only 18 in. Capable of spinning up a wide variety of tubes, the ROTINA 380 vastly outperforms its modest size.
Max. Capacity:
4 x 290 mL
Max. RPM/RCF:
15,000/24,000
Temp. Control:
-20 to +40ºC (380 R)

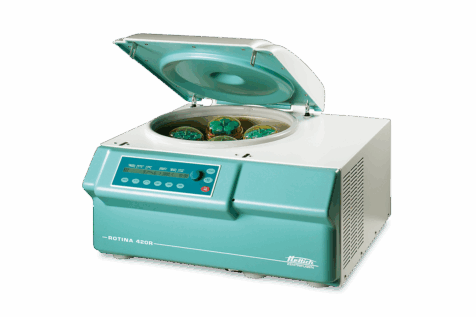

ROTINA 420 R BENCHTOP CENTRIFUGE
For large sample volumes, yet not overly large in size. Featuring Versa-Rotor for tubes, bottles and plates eliminating the need to change, purchase or store additional rotors.
Max. Capacity:
4 x 600 mL
Max. RPM/RCF:
15,000/24,400
Temp. Control:
-20 to +40ºC

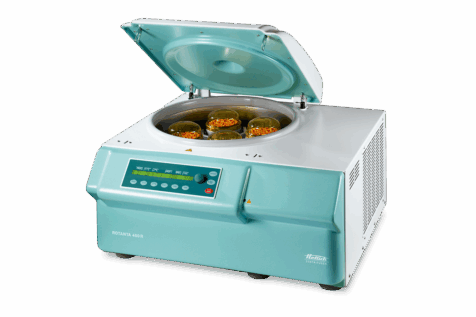

ROTANTA 460 R BENCHTOP CENTRIFUGE
Refrigerated version of the ROTANTA 460 offering high-capacity with wide variety of accessories for the most demanding workflows. Versa-Rotor for tubes, bottles and plates eliminating the need to change or purchase additional rotors.
Max. Capacity:
4 x 1,000 mL
Max. RPM/RCF:
15,000/24,400
Temp. Control:
-20 to +40ºC (460 R)
ROTOFIX 46 H SPECIALTY CENTRIFUGE
Industrial centrifuge for a wide vairety of standard and specialty tubes such as ASTM, Babcock, Schlenk and Chrome bath.
Max. Capacity:
4 x 290 ml | 4 x 100 ml
Max. RPM/RCF:
4,000/3,095 | 2,000/984
Temp. Control:
+10 °C to +90 °C (46 H)
MIKRO 200 R MICRO CENTRIFUGE
Refrigerated version of the MIKRO 200. Spin up to 30 micro tubes with high RCF for best sample results. Specialty rotor designed for spin-column kits. 4-place PCR strip rotor available.
Max. Capacity:
30 x 1.5/2.0 mL
Max. RPM/RCF:
5,000/21,382
Temp. Control:
-10 to +40ºC (200 R)

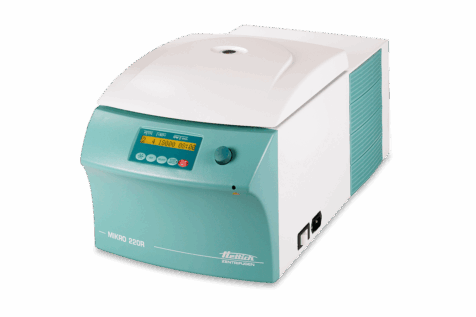

MIKRO 220 R MICRO CENTRIFUGE
Refrigerated version of the MIKRO 220, spin up to 48 micro tubes with bio-containment. Wide rotor variety for tubes up to 50 ml. Spin lipemic samples for a fraction of the cost.
Max. Capacity:
48 x 1.5-2.0 mL, 6 x 50 ml
Max. RPM/RCF:
18,000/31,514
Temp. Control:
-20 to +40ºC (220 R)

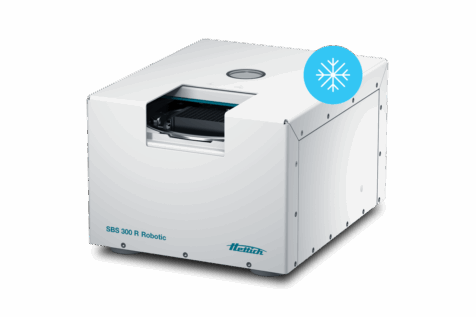

SBS 300 Robotic AUTOMATION CENTRIFUGE
The SBS 300 ROBOTIC is a front-loading centrifuge developed and optimized for microplates in high-throughput screening.
Max. Capacity:
2 plates (±50mm height)
Max. RPM/RCF:
6,300/4,593
Temp. Control:
Optional
