EBA 280 | S

SMALL CENTRIFUGE

Max. Capacity
6 x 50 mL
Max. RPM/RCF
6,000/5,071
Temperature Control
Ambient

BLOOD / URINE / PEDIATRIC / STAT / PPP / COAG.

Separating Ourselves 90º From The Competition

High-performance with easy to exchange rotors including a 90° swing-out rotor for flat separation of all standard blood tubes. The EBA 280 model ‘S’ is used for rapid separation of your STAT chemistry, coag. and pediatric samples with a max. speed of 6,000 RPM in a swing-out rotor. The EBA 280 is ideal for serology, manual cell washing and clinical chemistry applications.

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Give Your Workflow a Quick-Lift

Hettich’s Quick-Lift rotor allows you to effortlessly change-out rotors and manage your samples without tools or physical stress.

Flat Separation for Optimal Results

The EBA 280 maximizes its compact dimensions to fit 90º swing-out rotors for flat separation.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS

Shown below are the most common application packages for the EBA 280 | S centrifuge. Custom packages are available, please inquire for details.

EBA 280 | S Application Packages

EBA 280
BLOOD TUBE PACKAGE - 6

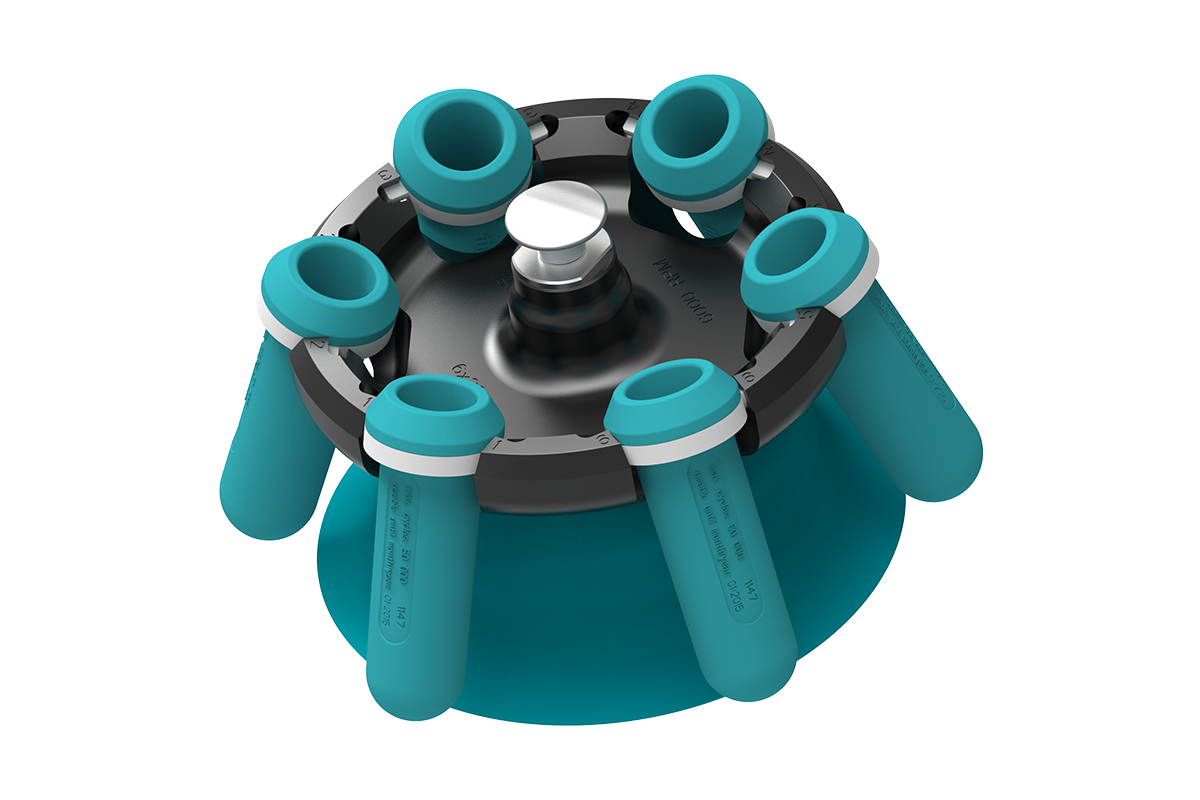

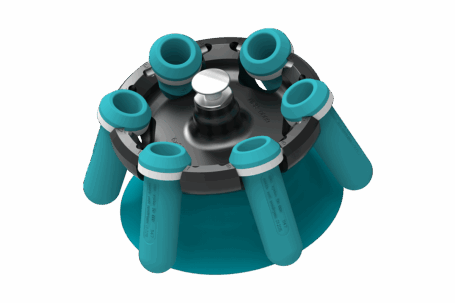

The EBA 280 Blood Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
1.6 - 5
13 x 75
≤ 4,700
≤ 2,618
6
4 - 7
13 x 100
≤ 4,700
≤ 3,112
6
4 - 7
16 x 75
≤ 4,700
≤ 2,865
6
8.5 - 10
16 x 100
≤ 4,700
≤ 3,112
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adpaters 13 x 75 mm, (6) Adpaters 16 x 75 mm

Request More Information

EBA 280 S
BLOOD TUBE PACKAGE - 6

The EBA 280 S Blood Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 S centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
1.6 - 5
13 x 75
≤ 6,000
≤ 4,266
6
4 - 7
13 x 100
≤ 6,000
≤ 5,071
6
4 - 7
16 x 75
≤ 6,000
≤ 4,669
6
8.5 - 10
16 x 100
≤ 6,000
≤ 5,071
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adpaters 13 x 75 mm, (6) Adpaters 16 x 75 mm

Request More Information

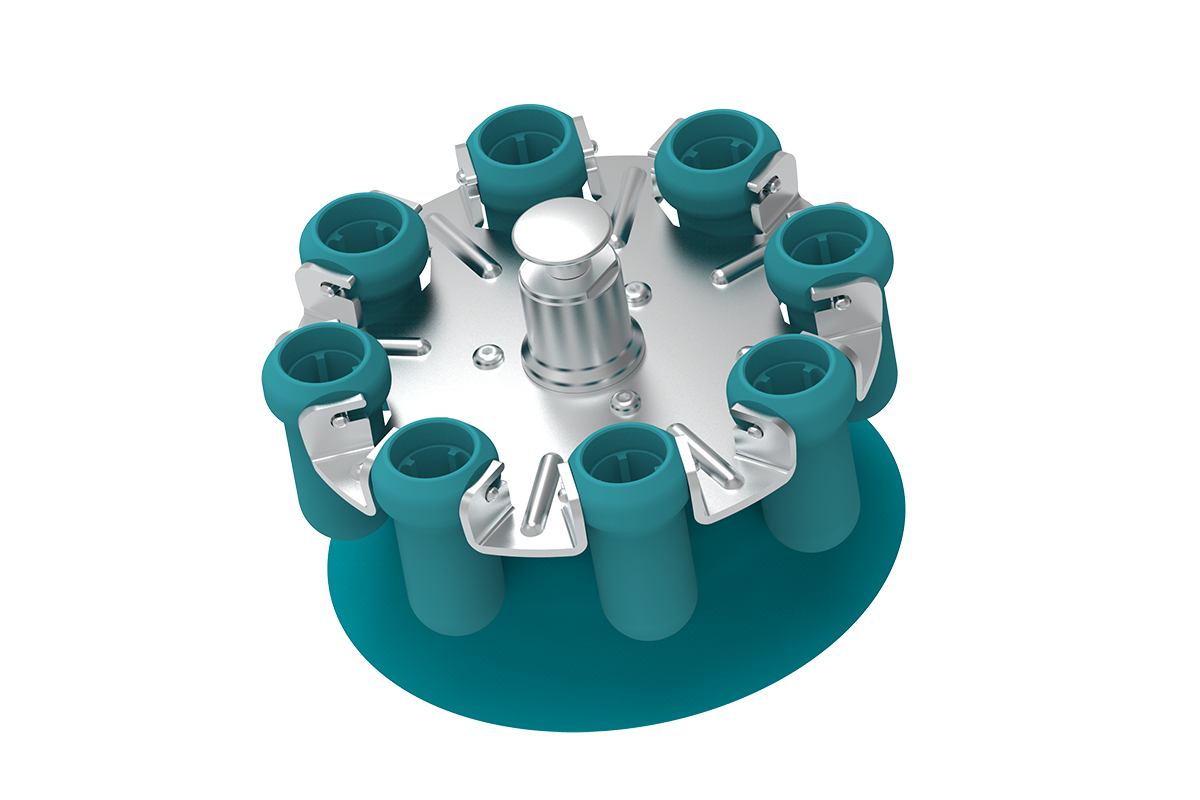

EBA 280
BLOOD TUBE PACKAGE - 8

The EBA 280 Blood Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
1.6 - 5
13 x 75
≤ 5,000
≤ 2,991
8
4 - 7
16 x 75
≤ 5,000
≤ 2,991
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (8) Buckets 13 x 75 mm, (8) Buckets 16 x 75 mm

Request More Information

EBA 280
BLOOD TUBE PACKAGE - 12

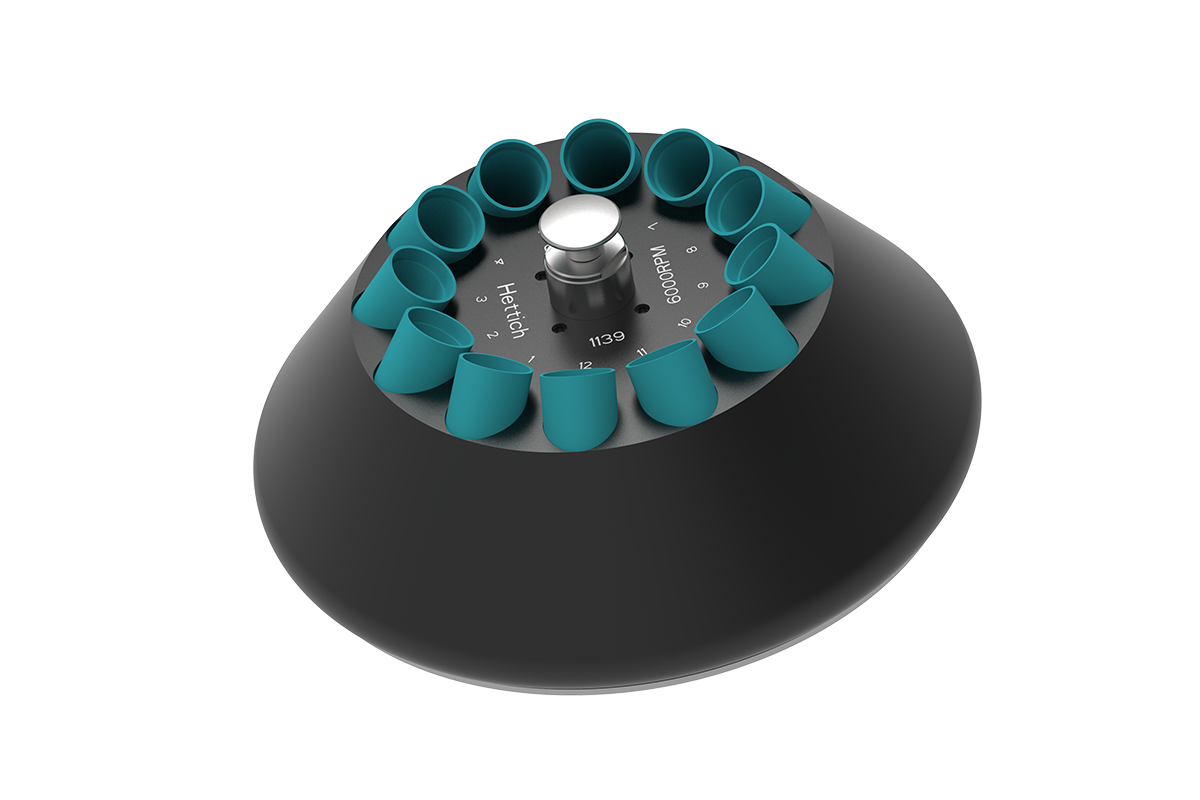

The EBA 280 Blood Tube Package 12 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm blood tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
1.6 - 5
13 x 75
≤ 6,000
≤ 3,300
12
4 - 7
13 x 100
≤ 6,000
≤ 4,146
12
4 - 10
16 x 75/100
≤ 6,000
≤ 4,146
PACKAGE CONTENTS

(1) Centrifuge, (1) Fixed-angle Rotor, (12) Adapters 13 x 75/100 mm

Request More Information

EBA 280
PEDIATRIC TUBE PACKAGE - 6

The EBA 280 Pediatric Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, 6-place swing-out rotor, buckets and adpaters for 10.7 x 36 mm tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
0.5
10.7 x 36
≤ 4,700
≤ 1,877
PACKAGE CONTENTS

(1) Centrifuge, (1) 90° Swing-out Rotor, (6) Buckets, (6) Adapters

Request More Information

EBA 280 S
PEDIATRIC TUBE PACKAGE - 6

The EBA 280 S Pediatric Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 S centrifuge, 6-place swing-out rotor, buckets and adpaters for 10.7 x 36 mm tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
0.5
10.7 x 36
≤ 6,000
≤ 3,059
PACKAGE CONTENTS

(1) Centrifuge, (1) 90° Swing-out Rotor, (6) Buckets, (6) Adapters

Request More Information

EBA 280
SEROLOGY PACKAGE - 12

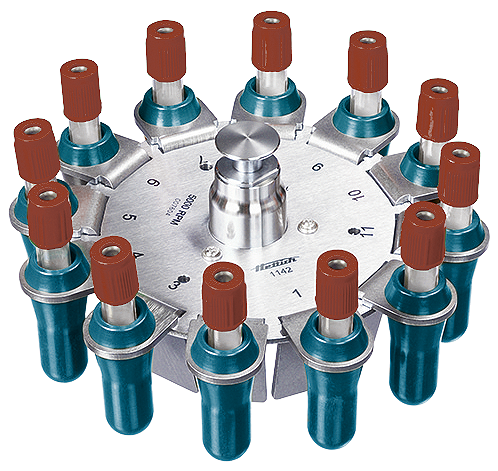

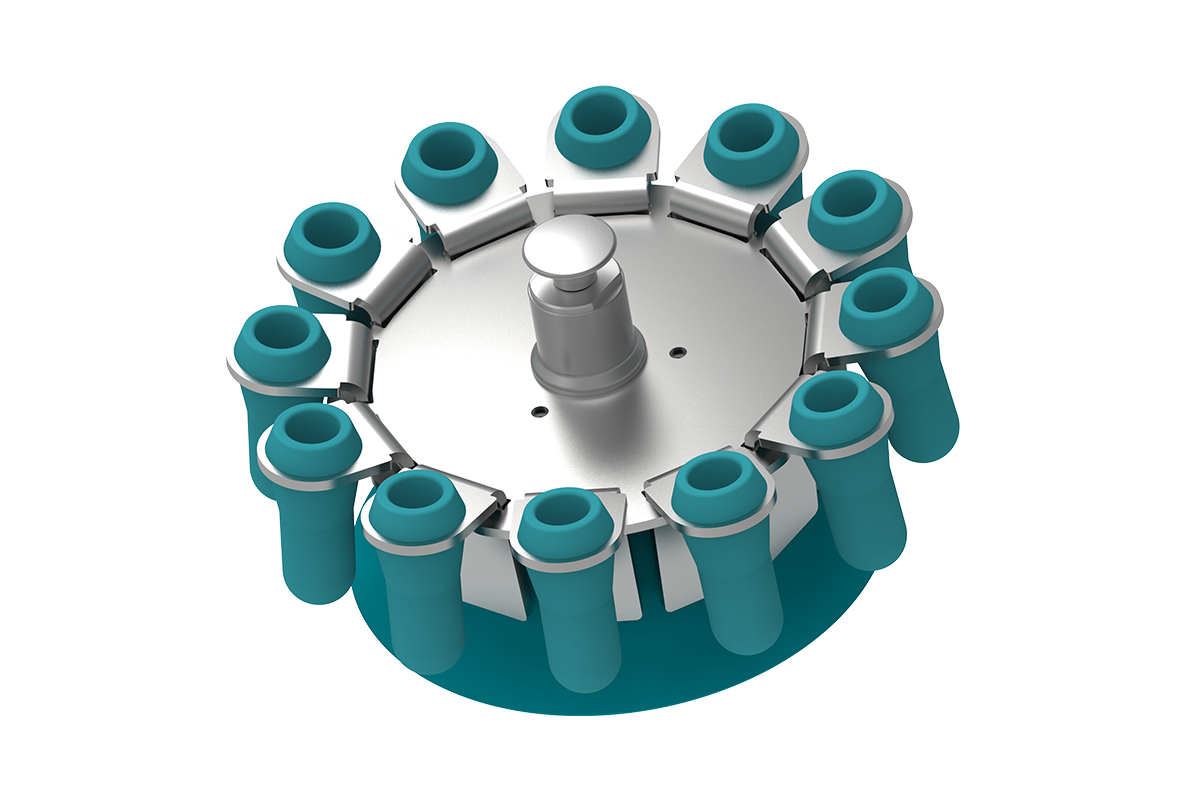

The EBA 280 Serology Package 12 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, 12-place swing-out rotor and buckets for 10/12/13 x 75 mm tubes. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
1.6 - 5
10/12/13 x 75
≤ 5,000
≤ 2,963
PACKAGE CONTENTS

(1) Centrifuge, (1) Swing-out Rotor, (12) Buckets

Request More Information

EBA 280
SEROLOGY DECANTING Package

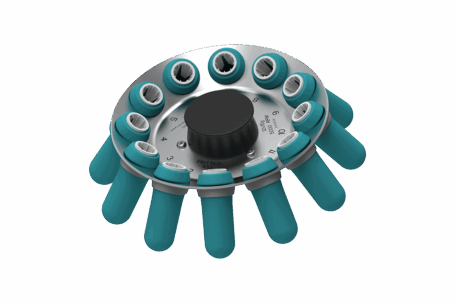

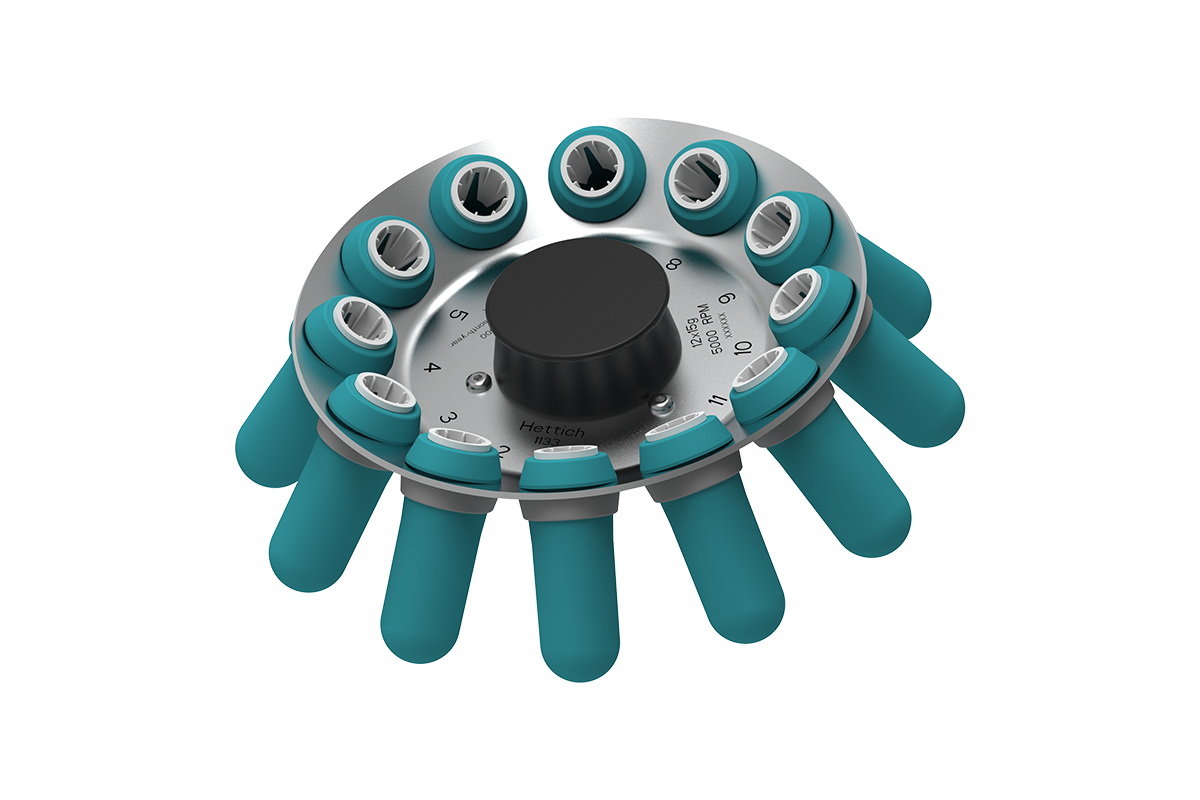

The EBA 280 Serology Decanting Package comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge and a 12-place fixed angle rotor. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm) R
PM
RCF
12
5 - 7
12 x 75/100
≤ 5,000
≤ 2,879
12
5 - 7
10 x 75
≤ 5,000
≤ 2,879
PACKAGE CONTENTS

(1) Centrifuge, (1) Fixed-angle Rotor

Request More Information

EBA 280
URINALYSIS PACKAGE - 6

The EBA 280 Urinalysis Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor and buckets for KOVA tubes. Many a-la-carte options are available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
12 - KOVA
17 x 102
≤ 4,700
≤ 3,112
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets

Request More Information

Supports Over

60Application Configurations
TUBE OPTIONS

blood, urine, pediatric, standard and conical up to 50 mL

EBA 280 | S
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications


Model
EBA 280
EBA 280 S
Max. Capacity
6 x 50 ml
6 x 50 ml
Max. RPM/RCF
6,000/4,146
6,000/5,071
Temp. Control
Ambient
Ambient
Dims. (HxWxD) mm
242 x 326 x 400
242 x 326 x 400
Dims. (HxWxD) in
9.5 x 13 x 15.75
9.5 x 13 x 15.75
Weight (kg)
12
12
Weight (lbs)
24
24
Power Supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Decanting
Swing-out, Fixed-angle, Decanting
Request More Information
