ROTANTA 460 Robotic

AUTOMATION CENTRIFUGE

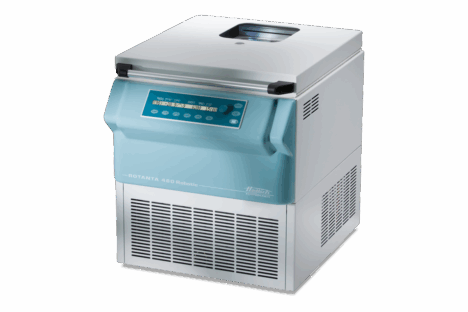

Hettich ROTANTA 460 Robotic automation centrifuge
Max. Capacity
80 blood tubes/16 plates
Max. RPM/RCF
6,200/6,446
Temp. Control
-20 to +40ºC

PLATES / BLOOD COLLECTION TUBES

Proven and Powerful

Our ROTANTA 460 automated centrifuge models have been successfully deployed in many of today’s industry leading automation systems. With more than 20 years of centrifugation in clinical laboratories as well as biotechnology research laboratories and in the pharmaceutical industry for high throughput screening. The ROTANTA is the only high g-force, high capacity model in the market today.

Standard Configurations

In addition to the configurations below we manufacture special buckets and adapters catered for your laboratory’s configurations. Please let us know your requirements!

ROTANTA 460 Robotic automation centrifuge 4 place rotor

Swing-out 4-place Rotor

Hettich ROTANTA 460 Robotic Swing-out 4-place Rotor

Swing-out 4-place Rotor

Hettich ROTANTA 460 Robotic Swing-out 2-place Rotor

Swing-out 2-place Rotor

ROTANTA 460 Robotic Packages

Shown below are common application packages for the ROTANTA 460 Robotic centrifuge. There are many additional configurations available. Please inquire.

Hettich ROTANTA 460 Robotic Swing-out 4-place Rotor

ROTANTA 460
ROBOTIC High Capacity Package

Get the most out of your unused under-bench space by equipping your automated platform with the ability to process large quantities of plates and tubes – using Hettich’s novel SBS adapter concept and pass-through robotic hatch. The Rotanta 460 Robotic can handle tall labware, like filter or deep-well plates, to achieve what very few automated centrifuges can. The centrifuge is certified REACH compliant and has MDS and IVDS certifications. The Rotanta 460 Robotic is incorporated into the automated solutions of all major integrators and has an abundance of drivers already developed for their scheduling software.

PLATE QTY.
TEMP. CONTROL
DIMS (mm)
RPM
RCF
Up to 12 stacked
Refrigerated
723 x 554 x 762
4,500
4,188
PACKAGE CONTENTS

Compatible with tube racks

Request More Information
Hettich ROTANTA 460 Robotic Swing-out 2-place Rotor

ROTANTA 460
Robotic High-G Package

Specific laboratory processes require the application of additional force during centrifugation. Whether separating your solutions or pelletizing a sample, the nearly 6,500 xG of RCF force this configuration generates will match your requirements. Because of the ROTANTA 460 Robotic’s pass-through hatch, the centrifuge can fit seamlessly under the deck with your automated liquid handler. Routinely integrated by all major automation providers, the centrifuge is certified REACH compliant and has MDS and IVDS certifications.

PLATE QTY.
TEMP. CONTROL
DIMS (mm)
RPM
RCF
Up to 6 stacked
Refrigerated
723 x 554 x 762
5,000
6,446
PACKAGE CONTENTS
Request More Information

Specifications


Hettich ROTANTA 460 Robotic automation centrifuge
Model
ROTANTA 460 Robotic
Max. Capacity
Inquire
Max. RPM/RCF
6,200/6,446
Temp. Control
-20 to +40°C
