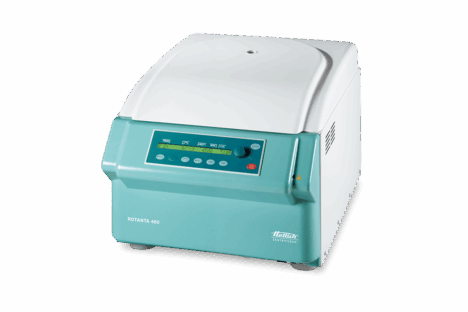

ROTINA 460 | R

BENCHTOP CENTRIFUGE

Max. Capacity
4 x 750 mL
Max. RPM/RCF
15,000/24,400
Temperature Control
-20 to +40ºC (460 R)

BLOOD / CELL CULTURE / PLATES / BOTTLES

Benchmark Benchtop

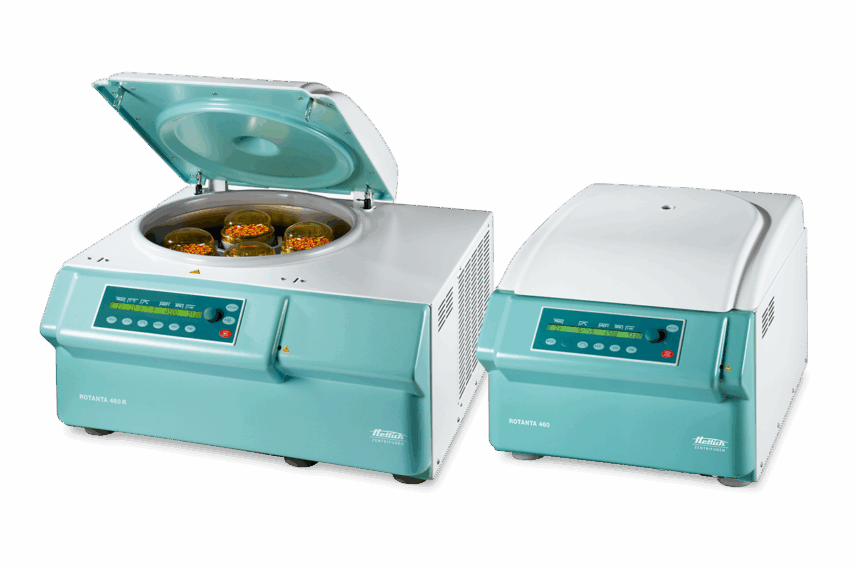

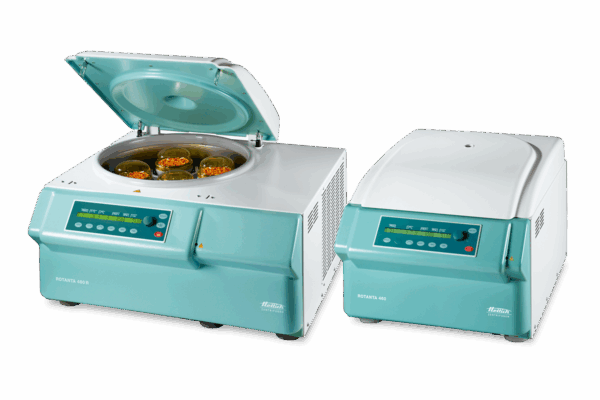

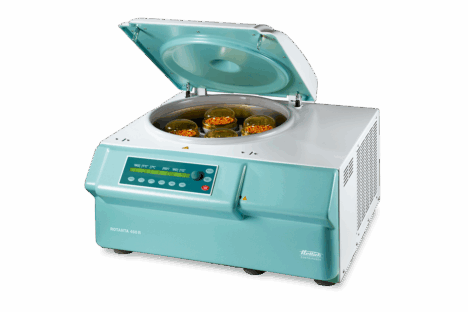

Powerful and versatile with robust and steady temperature control system (refrigerated version: ROTANTA 460 R ). At a 3 L capacity per run, this benchtop centrifuge is capable of virtually any application you choose. Supports a high-speed plate rotor that reaches a RCF of 6,446. Available air-ventilated or with built-in refrigeration; as a benchtop or floor model.

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

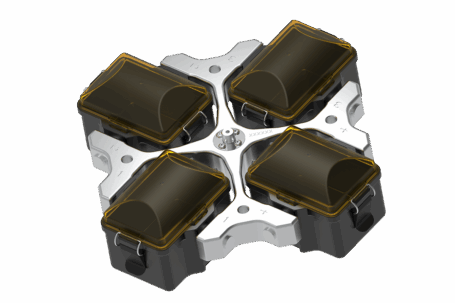

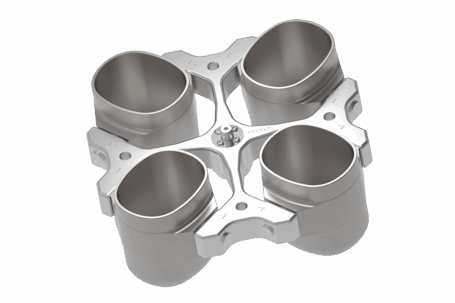

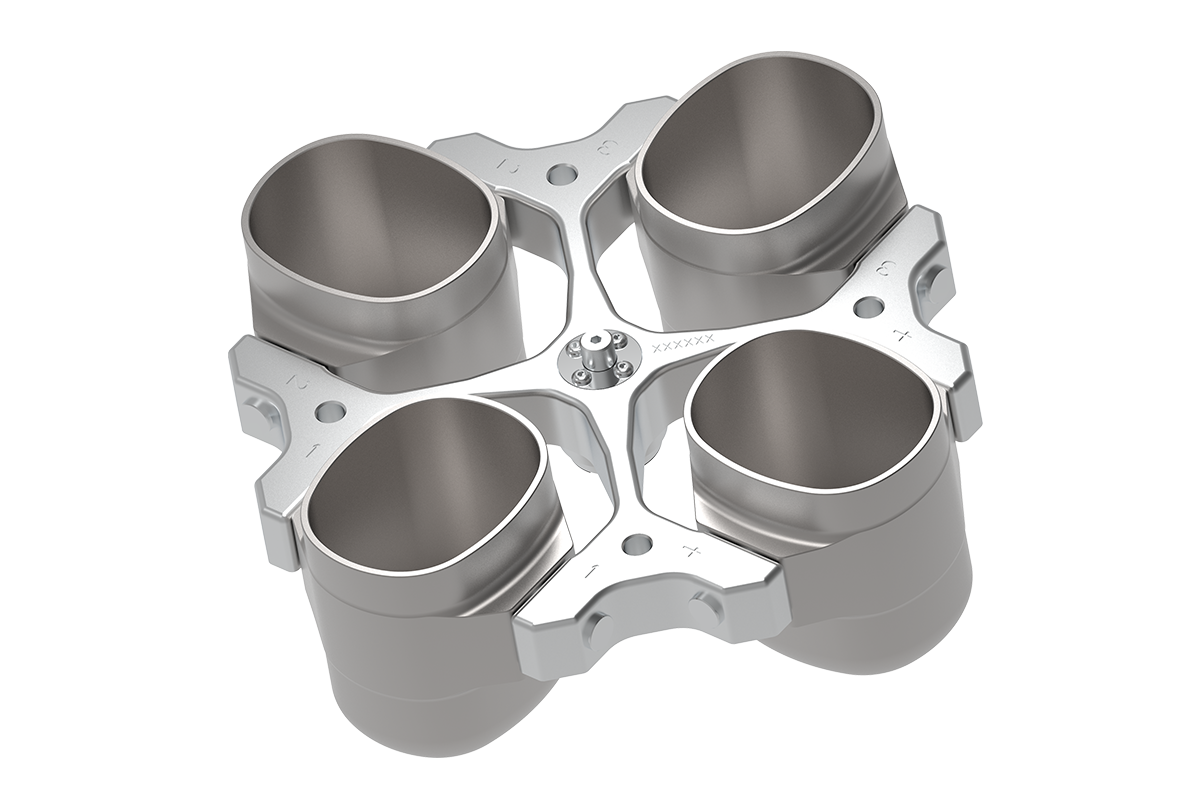

Versa-Rotor For Multiple Applications

Hettich’s high-capacity Versa-Rotor for tubes, bottles and plates eliminates the need to change, purchase or store additional rotors. Have peace of mind for long-term capability.

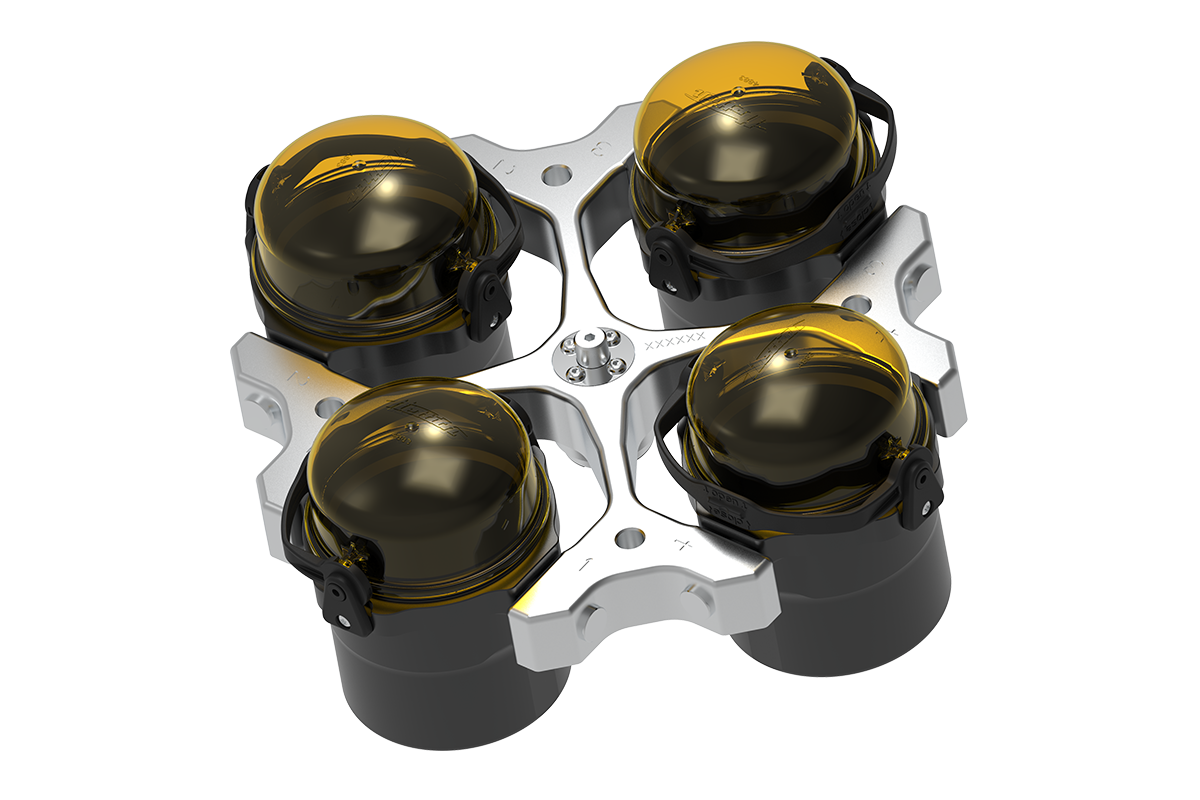

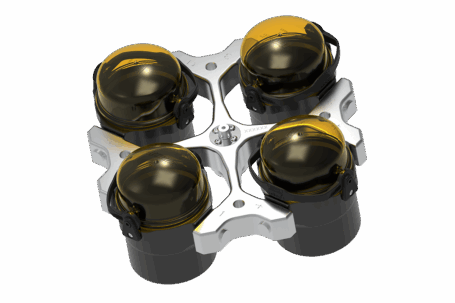

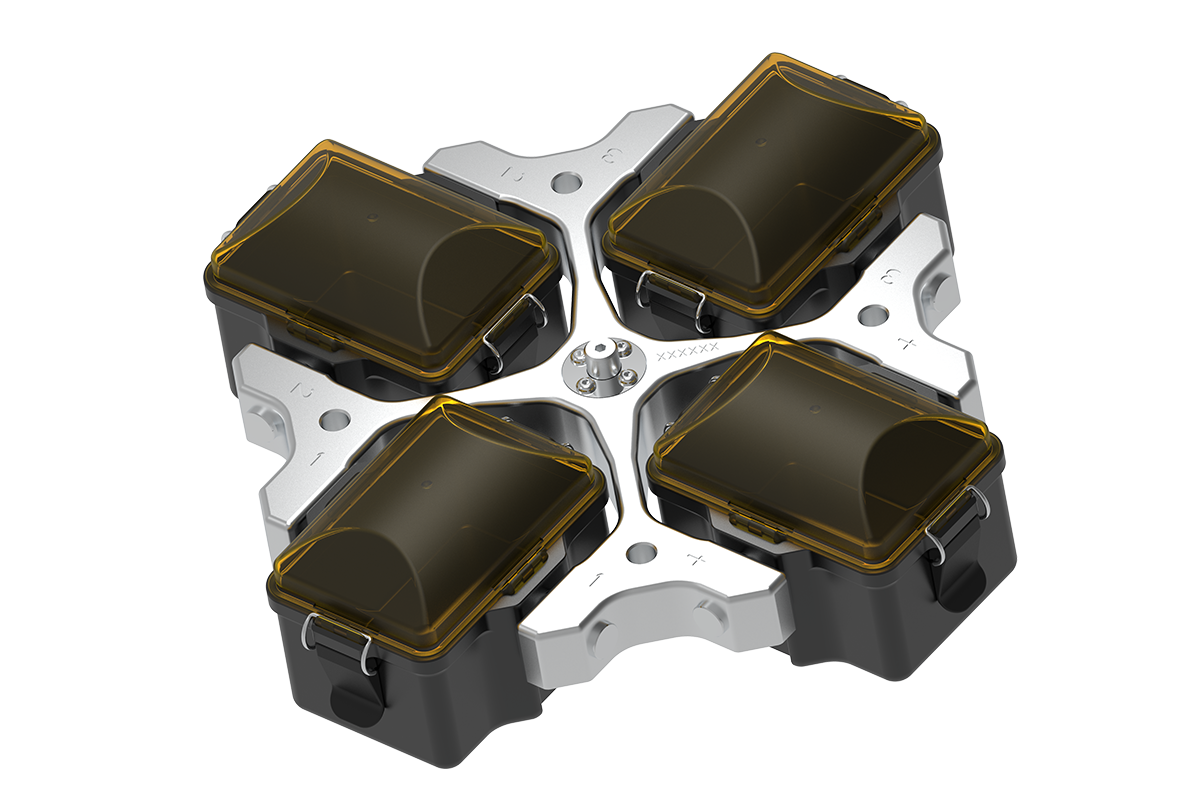

Versa-Lock Buckets Easy to Load, Unload, Carry and Seal

Hettich’s VERSA-LOCK buckets feature an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as locking mechanism for your bio-containment lids.

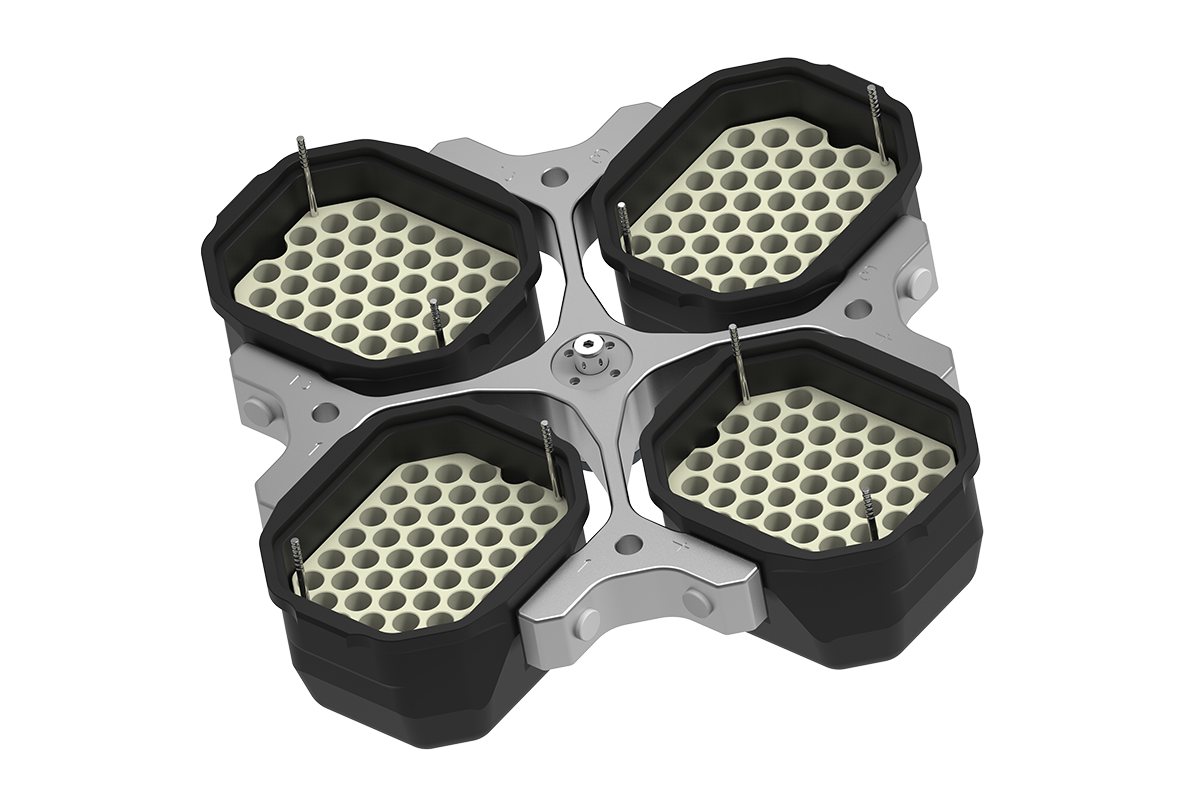

Up to 196 Blood Tubes

Spin up to 196 blood tubes with the ROTANTA 460 Blood Tube Package – High Capacity.

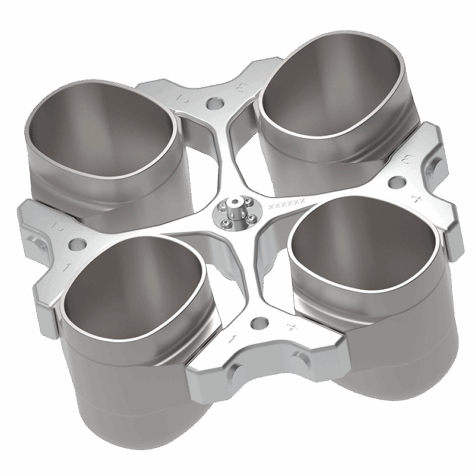

Pediatric Blood Bags

Capable of spinning up to (4) 450 mL blood bags with or without bio-containment.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS

Shown below are the most common application packages for the ROTANTA 460 | R centrifuge. Custom packages are available, please inquire for details.

ROTANTA 460 | R Application Packages

ROTANTA 460 / ROTANTA 460 R
BLOOD TUBE PACKAGE - 4 - BC

The ROTANTA 460 Blood Tube Package 4 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
84
1.6 - 7
13 x 75/100
≤ 4,600
≤ 4,471
76
4 - 10
16 x 75/100
≤ 4,600
≤ 4,637
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information

ROTANTA 460 / ROTANTA 460 R
BLOOD TUBE PACKAGE - 2 - BC

The ROTANTA 460 Blood Tube Package 2 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
42
1.6 - 7
13 x 75/100
≤ 4,600
≤ 4,471
38
4 - 10
16 x 75/100
≤ 4,600
≤ 4,637
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information

ROTANTA 460 / ROTANTA 460 R
BLOOD TUBE PACKAGE - 4B - BC

The ROTANTA 460 Blood Tube Package 4B BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
108
1.6 - 5
13 x 75
≤ 4,600
≤ 4,116
108
4 - 7
13 x 100
≤ 4,600
≤ 4,684
88
4 - 10
16 x 75/100
≤ 4,600
≤ 4,684
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information

ROTANTA 460 / ROTANTA 460 R

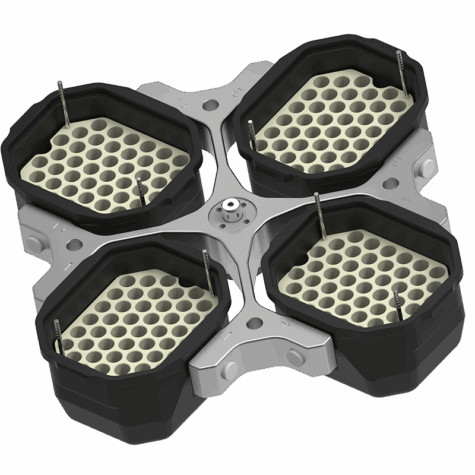

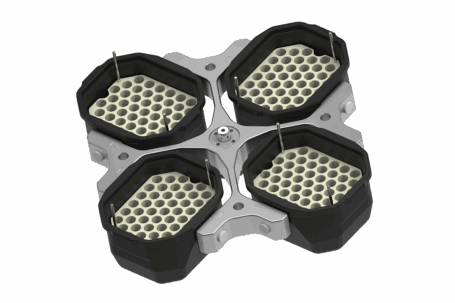

BLOOD TUBE PACKAGE HIGH CAPACITY

The ROTANTA 460 Blood Tube Package High Capacity comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
196
1.6 - 7
13 x 75/100
≤ 3,80
≤ 2,906
148
4 - 10
16 x 75/100
≤ 3,800
≤ 2,970
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment Lids (optional)

Request More Information

ROTANTA 460 / ROTANTA 460 R
BLOOD BAG PACKAGE - 4

The ROTANTA 460 Blood Bag Package 4 comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and holders with and without filters. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
450
--
≤ 4,600
≤ 4,637
PACKAGE CONTENTS

(1) Centrifuge, (1) Horiz. Rotor, (4) Buckets, (4) Adapters 450 mL, (4) Holders, without filter, (4) Holders with/without filter
Notes: Triple/Quadruplicate, comes with holder for systems without filter

Request More Information

ROTANTA 460 / ROTANTA 460 R
BLOOD BAG PACKAGE - 6

The ROTANTA 460 Blood Bag Package 4 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
450
--
≤ 4,600
≤ 5,063
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Bio-containment Lids
Notes: Triple/Quadruplicate system without filter

Request More Information

ROTANTA 460 / ROTANTA 460 R
CELL CULTURE PACKAGE - 4 - BC

The ROTANTA 460 Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and adapters for 15 and 50 mL and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
56
15 Conical
17 x 120
≤ 4,600
≤ 4,755
28
50 Conical
29 x 115
≤ 4,600
≤ 4,613
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-containment Lids

Request More Information

ROTANTA 460 / ROTANTA 460 R
CELL CULTURE PACKAGE - 2

The ROTANTA 460 Cell Culture Package 2 comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and adapters for 15 and 50 mL and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm) R
PM
RCF
28
15 Conical
17 x 120
≤ 4,600
≤ 4,755
14
50 Conical
29 x 115
≤ 4,600
≤ 4,613
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 15 mL, (2) Adapters 50 mL, (4) Bio-containment Lids

Request More Information

ROTANTA 460 / ROTANTA 460 R
CELL CULTURE PACKAGE - HC

The ROTANTA 460 Cell Culture Package High Capacity comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and adapters for 15 and 50 mL and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
96
15 Conical
17 x 120
≤ 3,800
≤ 3,196
40
50 Conical
29 x 115
≤ 3,800
≤ 3,196
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-lids (optional)

Request More Information

ROTANTA 460 / ROTANTA 460 R
PLATE Package

The ROTANTA 460 Plate Package comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets, adapters and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

PLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
24
Microtiter
--
≤ 4,600
≤ 4,211
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids (optional)

Request More Information

ROTANTA 460 / ROTANTA 460 R

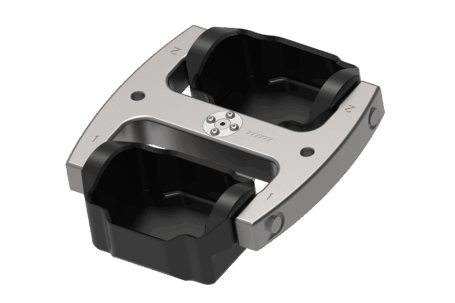

PLATE PACKAGE - HIGH SPEED - BC

The ROTANTA 460 Plate Package High Speed comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets, adapters and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

PLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
Microtiter
--
≤ 5,900/6,200*
≤ 5,838/6,446*
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (2) Buckets, (2) Adapters, (2) Bio-containment Lids
* higher value applies to the ROTANTA 460 R version

Request More Information

ROTANTA 460 / ROTANTA 460 R

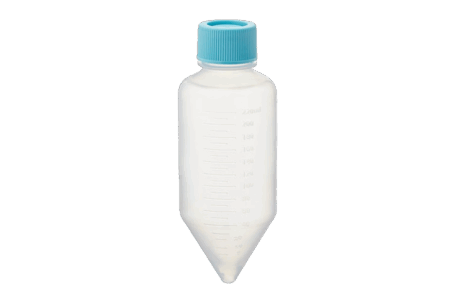

BOTTLE PACKAGE - BC

The ROTANTA 460 Bottle Package comes complete with everything you need to perform your application. This includes the ROTANTA 460 or ROTANTA 460 R centrifuge, swing-out rotor, buckets and adapters for 250/290 or 650/750 mL bottles and bio-lids. Many a-la-carte options are also available, contact us for more details.

BOTTLE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
250/290
--
≤ 4,600
≤ 4,873
4
650/750
--
≤ 4,600
≤ 4,873
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 250/290 mL or 650/750 mL, (2) Bio-containment Lids

Request More Information

Supports Over

470Application Configurations
TUBE OPTIONS

blood, pediatric, blood bags, urine, conical, skirted, round, plates, bottles, flasks, specialty, ASTM, Schlenk, Babcock, racks

ROTANTA 460 | R
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications


Model
ROTANTA 460
ROTANTA 460 R
Max. Capacity
4 x 750 ml
4 x 750 ml
Max. RPM/RCF
15,000/24,400
15,000/24,400
Temp. Control
Ambient
-20 °C to +40 °C
Dims. (HxWxD) mm
456 x 554 x 715
456 x 770 x 715
Dims. (HxWxD) in
18 x 22 x 28
18 x 30 x 28
Weight (kg)
111
151
Weight (lbs)
245
333
Power Supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)

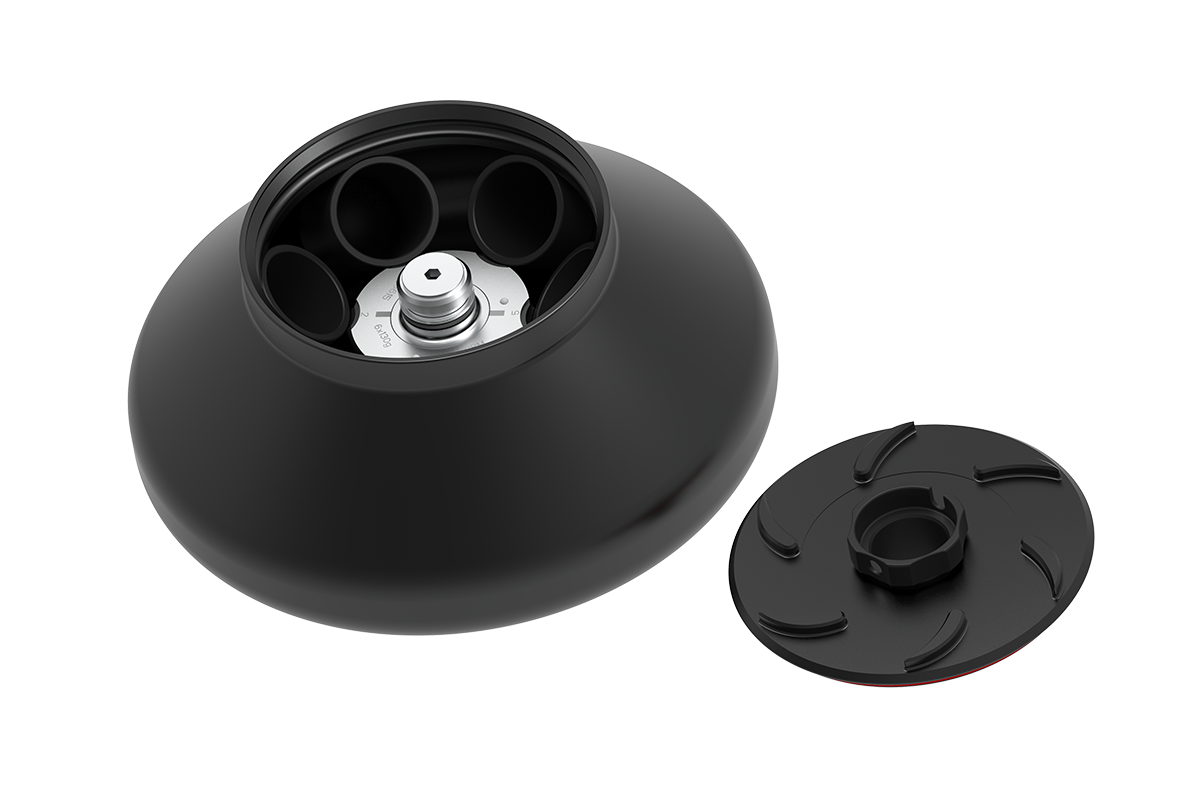

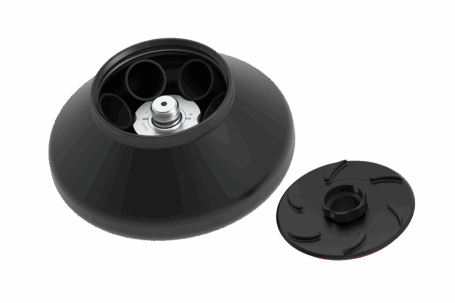

Swing-out, Fixed-angle, High-capacity, Plates
Swing-out, Fixed-angle, High-capacity, Plates
Request More information

You may also consider...

ROTINA 420

For large sample volumes, yet not overly large in size. Featuring Versa-Rotor for tubes, bottles and plates eliminating the need to change, purchase or store additional rotors.

Learn More
ROTANTA 460 RF

Floor model, refrigerated centrifuge offering high-capacity while saving bench space. Also accommodates small pediatric blood bags.

Learn More

Comparison Tool

Compare different centrifuge models to find the one that is right for you.

Resources

ROTANTA 460 | R Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 250.2 kb
Download now

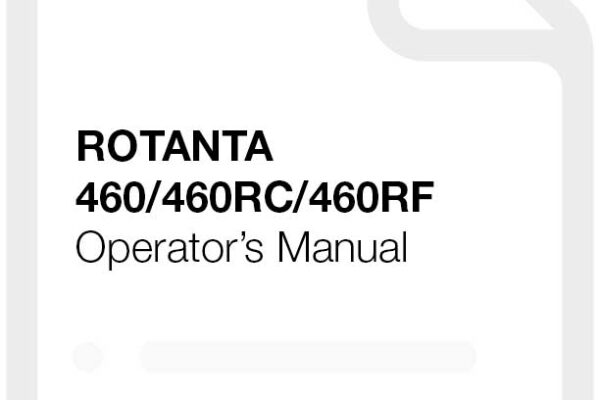

ROTANTA 460 | R Operator’s Manual
