HettCube 600 | R

INCUBATOR & COOLED INCUBATOR

Hettich HettCube 600 glass door
Hettich HettCube 600 incubator
Hettich HettCube incubator with glass door open
Internal Volume
520 L
Temperature Range
up to +65 °C
Dimensions (mm)
710 x 825 x 1990

Ideal for all pharmaceutical, research and industrial applications

HettCube Incubator Series

On this page, you will find a detailed list of specifications unique to the HettCube 600 incubator. The HettCube series of incubators and cooled incubators share a robust set of features and benefits standard to all models in the series.

HettCube series of incubators

See the complete list of features and learn more about the HettCube series.

Hettich HettCube 600 R incubator

Glass door

Optional glass door allows for easy visual inspection of your cultures.

View Accessories
Hettich HettCube Controllable, 4-way external socket

Switchboard

Controllable, 4-way external socket.

View Accessories
rails on Hettich tray system incubators

Hettich Tray System (HTS)

The Hettich Tray System, which fits in all three incubator sizes, allows the internal space of the HettCube to be used optimally.

View Accessories

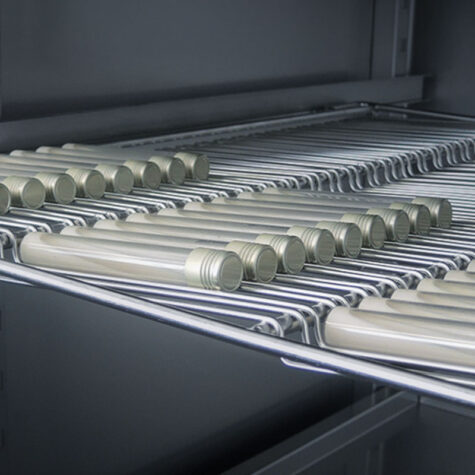

Hettich tubes in incubator

Loewenstein shelf

Stainless steel shelf with 81 piece capacity.

View Accessories
Hettich HettCube Petri Rack accessory

Petridish rack

Hold up to 180 petri dishes per shelf.

View Accessories
Hettich HettCube Rack accessory

Large and XL racks

Convenient racks with angle adjustment.

View Accessories

Standard Equipment

HettCube models come complete with an extensive list of standard equipment.

4.3 inch Touchscreen

Our intuitive touchscreen offers many features providing optimal flexibility and user control.

Dual control panel and door lock

USB service interface

Stainless steel interior (W-St. 1.4301) (ASTM 304)

Ø 42 mm bushing on rear panel

Potential-free alarm output

Compensation for unneeded standard shelves - please inquire

2 standard stainless steel shelf and 1 HTS

HettCert factory certificate

9-point temperature validation according to DIN 12880: 2007-05

Specifications

HettCube 600 | R


Hettich HettCube 200 R incubator
Model
HettCube 600 | R
Temp. range: incubators | cooled incubators
1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
Internal Volume (L)
520
Internal Volume (cuft)
18.3
Validated usable volume (L)
351
Validated usable volume / internal volume
67%
Temp. fluctuation at +37 °C
± 0.1 K
Temp. uniformity at +37 °C
± 0.2 K
Temp. uniformity at +25 °C
± 0.1 K
Recovery time door opened for 30 s at +37 °C
≤ 5.5 min
Exterior dims. (WxDxH) mm
710 x 825 x 1990
Exterior dims. (WxDxH) in
28 x 32.5 x 78.3
Interior dims. (WxDxH) mm
535 x 690 x 1415
Interior dims. (WxDxH) in
21 x 27 x 55.7
Footprint (m²)
0.6
Footprint (cuft)
16.4
Trays provided as standard
4 (3 standard + 1 HTS)
Noise level dB(A)
≤42 | ≤44
Weight (lbs)
372.5 | 397
Weight (kg)
169 | 180
Power Supply
120 V
Energy consumption at +37 °C
0.06 kWh
Warranty
2 years
Download Brochure

Other HettCube Models

Hettich HettCube 200 incubator

HettCube 200 | R

Learn More
Hettich HettCube 600 R incubator

HettCube 400 | R

Learn More

HettCube Resources

Below are resources to help you get famiiar with HettCube line of incubators.

Hettich HettCube incubators product sheet

HettCube 600 | R Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 263.0 kb
Download now
Hettich HettCube operator's manual

HettCube Operator’s Manual

HettCube operator's manual for models 200 | R, 400 | R, 600 | R. When using Hettich equipment, please refer to your products operators manual for important safety and product-use instructions. read more...

File type: PDF
File size: 21.8 mb
Download now
Hettich HettCube incubator

HettCube Brochure

This brochure provides a detailed overview of the product features, benefits and components. (more…) read more...

File type: PDF
File size: 1.4 mb
Download now
