HettCube 400 | R

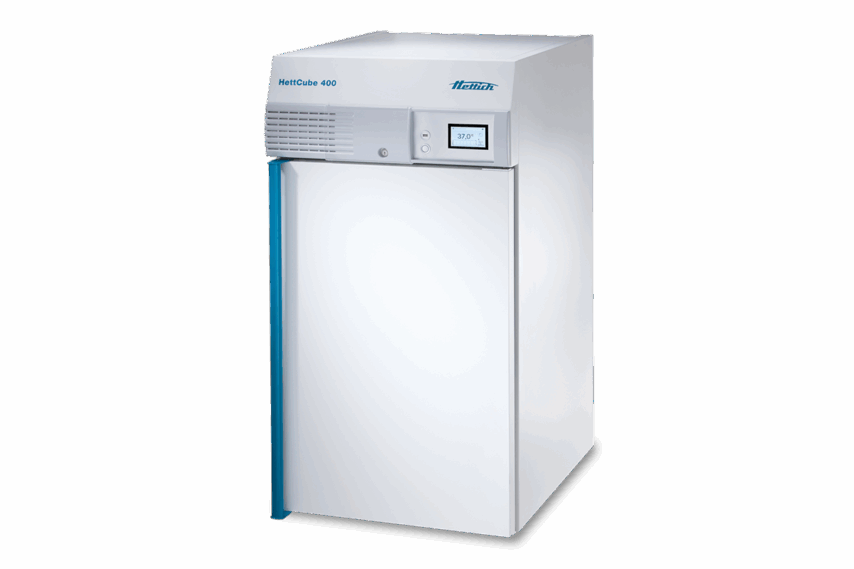

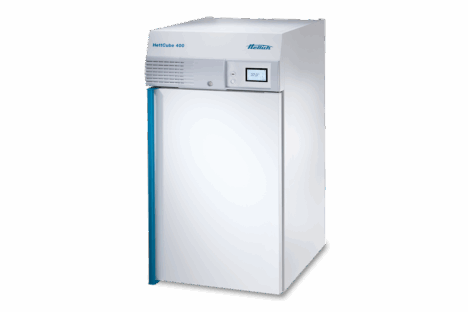

Hettich HettCube 400 incubator
Hettich HettCube 400 with glass door open
Hettich HettCube 400 incubator with glass door
Internal Volume
310 L
Temperature Range
up to +65 °C
Dimensions (mm)
710 x 825 x 1425

Ideal for all pharmaceutical, research and industrial applications

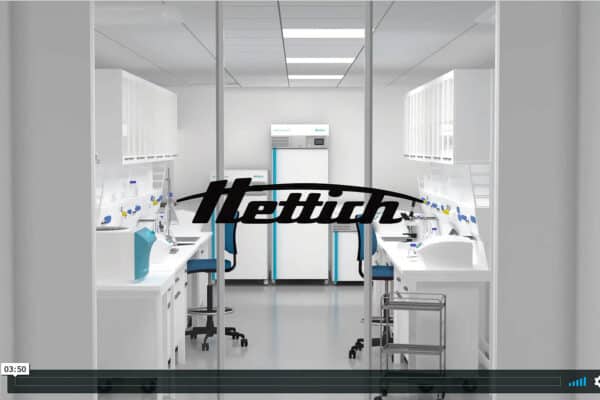

HettCube Incubator Series Overview

Efficient use of valuable space. Learn how HettCube series incubators and cooled incubators will benefit your laboratory workflow.

Hettich HettCube 400 incubator with glass door

Glass door

Optional glass door allows for easy visual inspection of your cultures.

View Accessories
Hettich HettCube Controllable, 4-way external socket


Controllable, 4-way external socket.

View Accessories
rails on Hettich tray system incubators

Hettich Tray System (HTS)

The Hettich Tray System, which fits in all three incubator sizes, allows the internal space of the HettCube to be used optimally.

View accessories
Hettich tubes in incubator

Loewenstein shelf

Stainless steel shelf with 81 piece capacity.

View Accessories

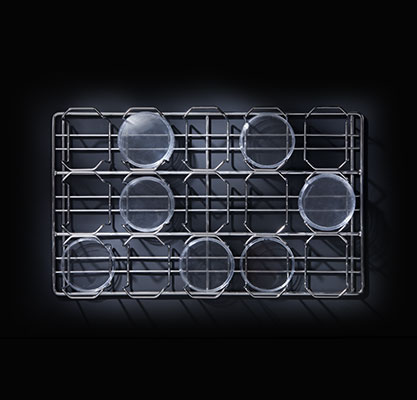

Hettich HettCube Petri Rack accessory

Petridish rack

Hold up to 180 dishes per shelf

View Accessories

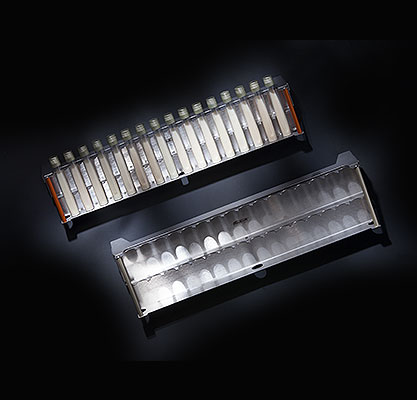

Hettich HettCube Rack accessory

Large and XL racks

Convenient racks with angle adjustment

View Accessories

Standard Equipment

HettCube models come complete with an extensive list of standard equipment.

4.3 inch Touchscreen

Our intuitive touchscreen offers many features providing optimal flexibility and user control.

Stainless steel interior (W-St. 1.4301) (ASTM 304)

Compensation for unneeded standard shelves - please inquire

Dual control panel and door lock

Ø 42 mm bushing on rear panel

2 standard stainless steel shelf and 1 HTS

USB service interface

Potential-free alarm output

HettCert factory certificate

9-point temperature validation according to DIN 12880: 2007-05


HettCube 400 | R

Hettich HettCube 200 R incubator
HettCube 400 | R
Temp. range: incubators | cooled incubators
1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
Internal Volume (L)
Internal Volume (cuft)
Validated usable volume (L)
Validated usable volume / internal volume
Exterior dims. (WxDxH) mm
710 x 825 x 1425
Exterior dims. (WxDxH) in
28 x 32.5 x 56
Interior dims. (WxDxH) mm
535 x 690 x 850
Interior dims. (WxDxH) in
21 x 27 x 33.5
Footprint (m²)
Footprint (cuft)
Weight (lbs)
269 | 293
Weight (kg)
123 | 133
Trays provided as standard
3 (2 standard + 1 HTS)
Temp. fluctuation at +37 °C
± 0.1 K
Temp. uniformity at +37 °C
± 0.2 K
Temp. uniformity at +25 °C
± 0.1 K
Recovery time door opened for 30 s at +37 °C
≤ 4.5 min
Energy consumption at +37 °C
0.05 kWh
Noise level dB(A)
≤42 | ≤44
Power Supply
120 V
2 years
Download Brochure

Other HettCube Models

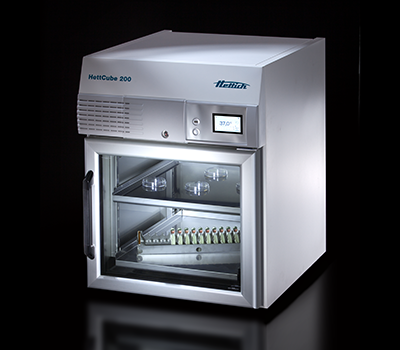

Hettich HettCube 200 incubator with glass door

HettCube 200 | R

Learn More
Hettich HettCube incubator

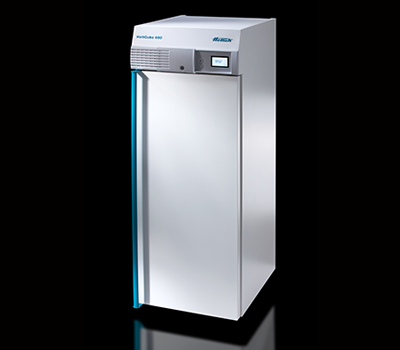

HettCube 600 | R

Learn More

HettCube Resources

Below are resources to help you get famiiar with HettCube line of incubators.

Hettich HettCube incubators product sheet

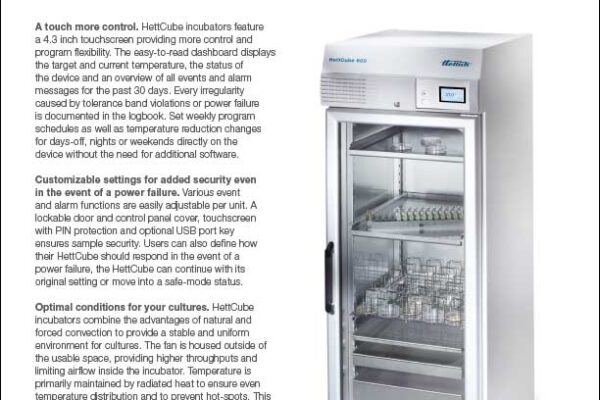

HettCube 400 | R Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 263.0 kb
Download now
Hettich HettCube operator's manual

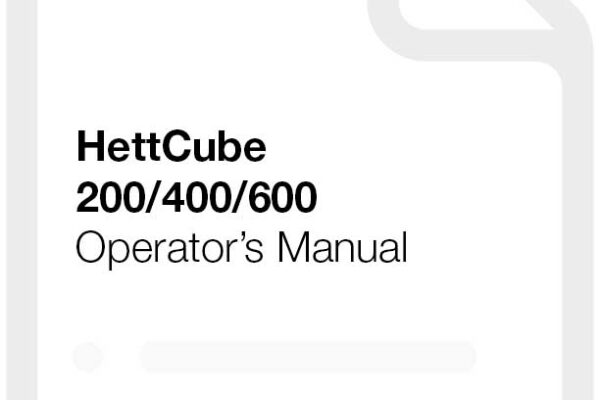

HettCube Operator’s Manual

HettCube operator's manual for models 200 | R, 400 | R, 600 | R. When using Hettich equipment, please refer to your products operators manual for important safety and product-use instructions. read more...

File type: PDF
File size: 21.8 mb
Download now
Hettich HettCube incubator

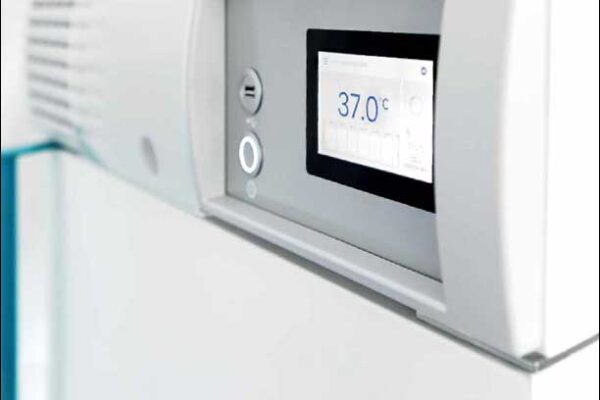

HettCube Brochure

This brochure provides a detailed overview of the product features, benefits and components. (more…) read more...

File type: PDF
File size: 1.4 mb
Download now
