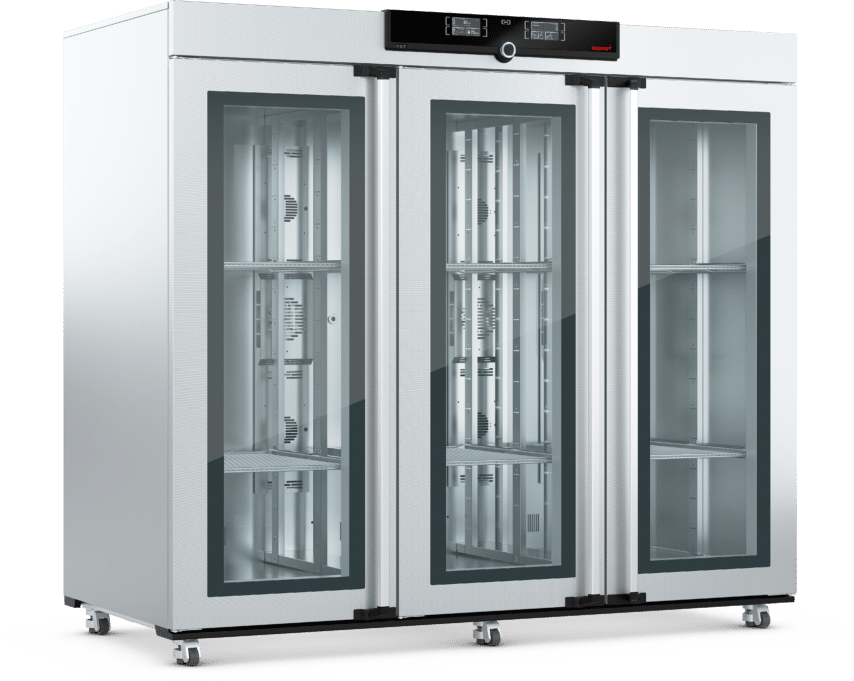

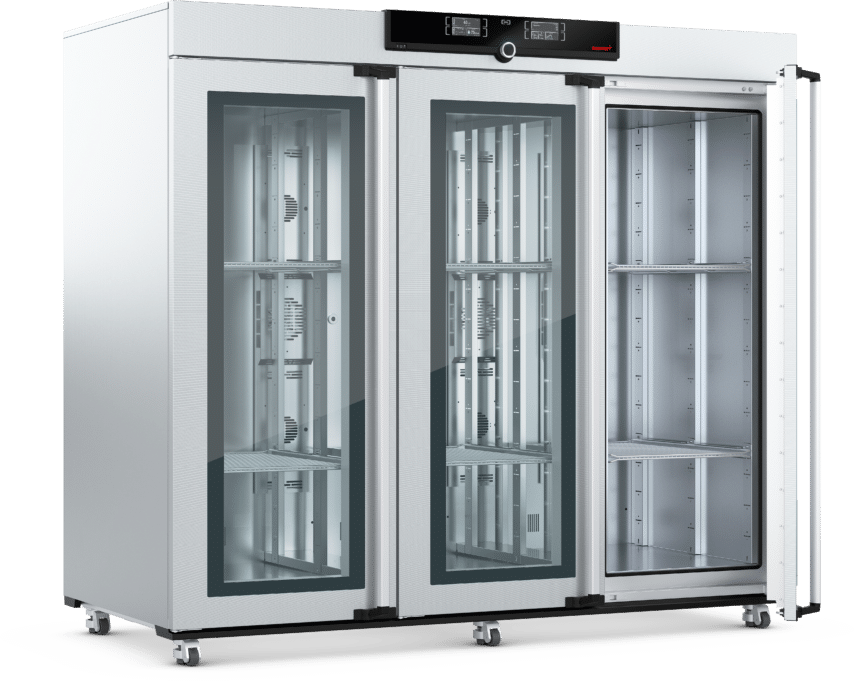

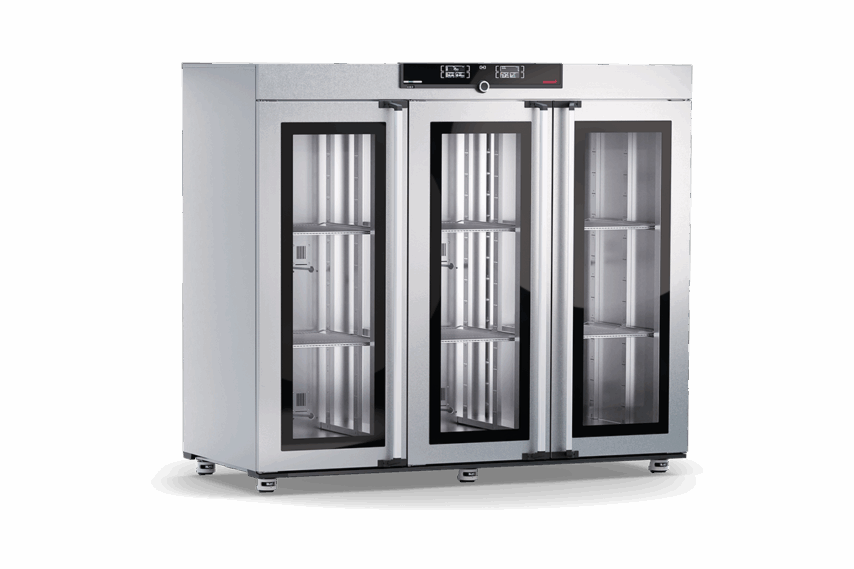

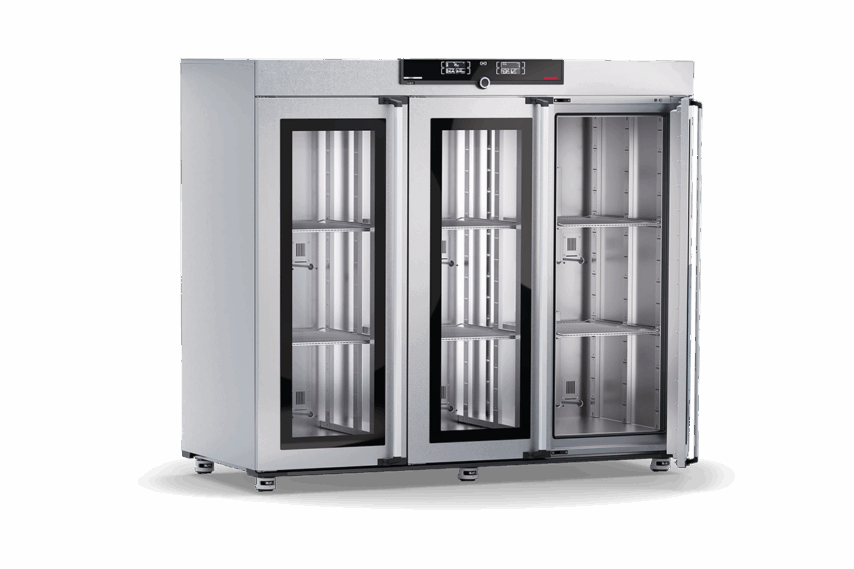

HPP2200eco

Stability/Constant Climate Chamber

Internal Volume
2140 L (75 cu.ft.)
Temp. Range
15 to +60 °C
Dimensions (in)
85 x 75.25 x 35.5

Standard Delivery Constant Climate Chamber

Memmert Climate Chambers Overview

Various stability/constant climate chambers, humidity chambers, and environmental test chambers are highly efficient and provide accurate controls for a homogeneous and stable environment. Learn more about the many benefits Memmert series climate chambers have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Stainless steel doors with glass sectors and 2-point locking (compression door lock)

Inner Door

Fully heated inner glass panes integrated with the full-sight glass door

Internals

4 stainless steel grid(s), electropolished

Water Tank

Water tank including connection hose (110-750: 2.5 liter, 1060-2200: 10 liter)

Calibration Certification

Works calibration certificate for +25 °C/40 % rh and +40 °C/75 % rh

Warranty

3-year warranty

Specifications


Model
HPP2200eco
Internal volume (cuft)
75
Temp. range
Without light, with humidity: +15 (at least 10 below ambient temperature) to +60 °C. Without light, without humidity: 15 (at least 10 below ambient temperature) to +60 °C
Set Temp. Range
Without light, with humidity: +15 to +60 °C. Without light, without humidity: +15 to +60 °C.
Set Temp. Accuracy
0.1 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Humidity
Humidity supply with distilled water from external tank by self-priming pump
Control Panel
TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Programming
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Temp. Control
Over and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
additionally integrated over- and undertemperature protection "ASF", automatically following the Setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature
Heating
Peltier - energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)
Humidity rh
Max. 70 %, non-condensing
Interior Dims (WxHxD) in.
77.75 x 57 x 29.5 (d less 1.25 in. for fan - Peltier)
Max. number of internals
42
Exterior dims (WxHxD) in.
85 x 75.25 x 35.5 (d +2.25in. door handle & +4.25in. Peltier element)
Weight (lbs.)
1087
Power
230 V, 50/60 Hz, approx. 2000 W
Warranty
3 years
Other
With Humidity, Light optional
