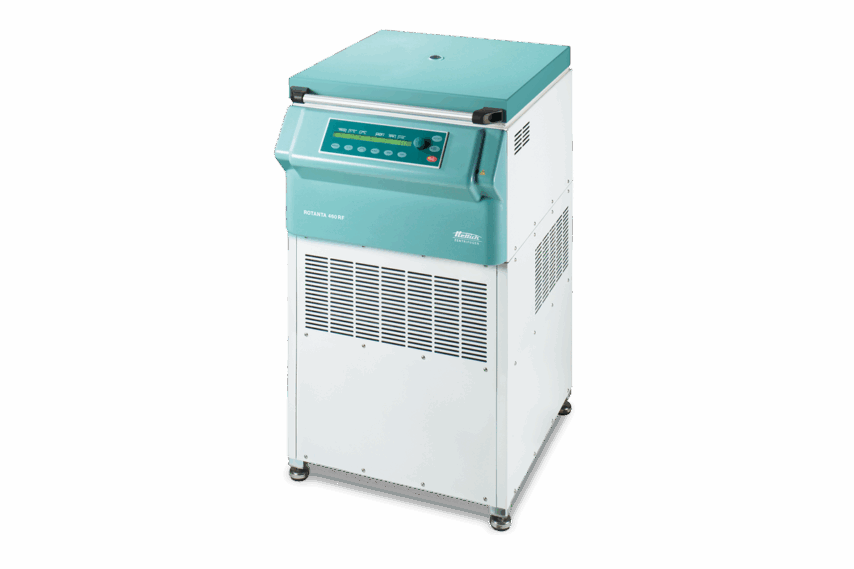

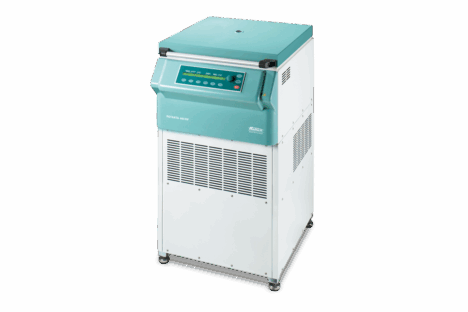

ROTANTA 460 RF

FLOOR-STANDING CENTRIFUGE

Max. Capacity
4 x 750 mL
Max. RPM/RCF
15,000/24,400
Temperature Control
-20 to +40ºC

BLOOD / CELL CULTURE / PLATES / BOTTLES

Just The Right Height

Powerful and versatile with robust and steady temperature control system. At a 3 L capacity per run, this floor model centrifuge is capable of virtually any application you choose. Supports a high-speed plate rotor that reaches a RCF of 6,446. Also available as an underbench or benchtop model. Inquire for more information.

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Just The Right Height

The ROTANTA 460 RF is the perfect height for loading and unloading while saving valuable space on the benchtop.

Versa-Rotor For Multiple Applications

Hettich’s Versa-Rotor saves time and effort. Spin a variety of media types and many configurations all with one rotor.

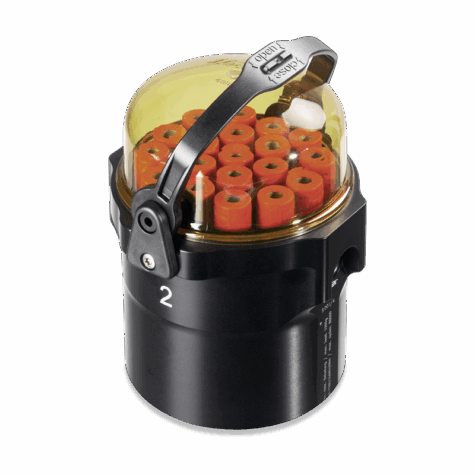

Versa-Lock Buckets Easy to Load, Unload, Carry and Seal

Hettich’s VERSA-LOCK buckets feature an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as locking mechanism for your bio-containment lids.

Up to 196 Blood Tubes

Spin up to 196 blood tubes with the ROTANTA 460 RF Blood Tube Package – High Capacity.

Pediatric Blood Bags

Capable of spinning up to (4) 450 mL blood bags with or without bio-containment.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS

Shown below are the most common application packages for the ROTANTA 460 RF centrifuge. Custom packages are available, please inquire for details.

ROTANTA 460 RF Application Packages

ROTANTA 460 RF
BLOOD TUBE PACKAGE - 4 - BC

The ROTANTA 460 RF Blood Tube Package 4 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
84
1.6 - 7
13 x 75/100
≤ 4,600
≤ 4,471
76
4 - 10
16 x 75/100
≤ 4,600
≤ 4,637
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information

ROTANTA 460 RF
BLOOD TUBE PACKAGE - 2 - BC

The ROTANTA 460 RF Blood Tube Package 2 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
42
1.6 - 7
13 x 75/100
≤ 4,600
≤ 4,471
38
4 - 10
16 x 75/100
≤ 4,600
≤ 4,637
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information

ROTANTA 460 RF
BLOOD TUBE PACKAGE - 4B - BC

The ROTANTA 460 RF Blood Tube Package 4B BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
108
1.6 - 5
13 x 75
≤ 4,600
≤ 4,116
108
4 - 7
13 x 100
≤ 4,600
≤ 4,684
88
4 - 10
16 x 75/100
≤ 4,600
≤ 4,684
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

Request More Information

ROTANTA 460 RF
BLOOD TUBE PACKAGE HIGH CAPACITY

The ROTANTA 460 RF Blood Tube Package High Capacity comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
G-FORCE
196
1.6 - 7
13 x 75/100
≤ 3,800
≤ 2,906
148
4 - 10
16 x 75/100
≤ 3,800
≤ 2,970
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment Lids (optional)

Request More Information

ROTANTA 460 RF
BLOOD BAG PACKAGE - 4

The ROTANTA 460 RF Blood Bag Package 4 comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets and holders with and without filters. Many a-la-carte options are also available, contact us for more details.

BAG QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
450
--
≤ 4,600
≤ 4,637
PACKAGE CONTENTS

(1) Centrifuge, (1) Horiz. Rotor, (4) Buckets, (4) Adapters 450 mL, (4) Holders, without filter, (4) Holders with/without filter
Notes: Triple/Quadruplicate, comes with holder for systems without filter

Request More Information

ROTANTA 460 RF
BLOOD BAG PACKAGE - 4 - BC

The ROTANTA 460 RF Blood Bag Package 4 BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

BAG QTY.
VOLUME (mL)
SIZE (mm) R
PM
RCF
4
450
--
≤ 4,600
≤ 5,063
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Bio-containment Lids
Notes: Triple/Quadruplicate system without filter

Request More Information

ROTANTA 460 RF
CELL CULTURE PACKAGE - 4 - BC

The ROTANTA 460 RF Cell Culture Package 4 comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

BAG QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
56
15 Conical
17 x 120
≤ 4,600
≤ 4,755
28
50 Conical
29 x 115
≤ 4,600
≤ 4,613
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-containment Lids

Request More Information

ROTANTA 460 RF
CELL CULTURE PACKAGE - 2 - BC

The ROTANTA 460 RF Cell Culture Package 2 comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
28
15 Conical
17 x 120
≤ 4,600
≤ 4,755
14
50 Conical
29 x 115
≤ 4,600
≤ 4,613
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 15 mL, (2) Adapters 50 mL, (4) Bio-containment Lids

Request More Information

ROTANTA 460 RF
CELL CULTURE PACKAGE - HIGH CAPACITY

The ROTANTA 460 RF Cell Culture Package High Capacity comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
G-FORCE
96
15 Conical
17 x 120
≤ 3,800
≤ 3,196
40
50 Conical
29 x 115
≤ 3,800
≤ 3,196
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-containment Lids (optional)

Request More Information

ROTANTA 460 RF
PLATE Package

The ROTANTA 460 RF Plate Package comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

PLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
24
Microtiter
--
≤ 4,600
≤ 4,211
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids (optional)

Request More Information

ROTANTA 460 RF
PLATE PACKAGE - HIGH SPEED - BC

The ROTANTA 460 RF Plate Package High Speed comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

PLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
Microtiter
--
≤ 6,200
≤ 6,446
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (2) Buckets, (2) Adapters, (2) Bio-containment Lids.

Request More Information

ROTANTA 460 RF
BOTTLE PACKAGE - BC

The ROTANTA 460 RF Bottle Package BC comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 250/290 mL or 650/750 mL bags and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
250/290
--
≤ 4,600
≤ 4,873
4
650/750
--
≤ 4,600
≤ 4,873
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 250/290 mL or 650/750 mL, (4) Bio-containment Lids

Request More Information

Supports Over

470Application Configurations
TUBE OPTIONS

blood, pediatric, blood bags, urine, conical, skirted, round, plates, bottles, flasks, specialty, ASTM, Schlenk, Babcock, racks

ROTANTA 460 RF
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications


Model
ROTANTA 460 RF
ROTANTA 460 R
Max. Capacity
4 x 750 ml
4 x 750 ml
Max. RPM/RCF
15,000/24,400
15,000/24,400
Temp. Control
-20 to +40°C
-20 °C to +40 °C
Dims. (HxWxD) mm
961 x 554 x 697
456 x 770 x 715
Dims. (HxWxD) in
38 x 22 x 27
18 x 30 x 28
Weight (kg)
174
151
Weight (lbs)
362
333
Power Supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Swing-out, Fixed-angle, High-capacity, Plates, Bottles
Swing-out, Fixed-angle, High-capacity, Plates
Request More Information
