The Hettich Cyto-System

Familiar and Flexible

Familiar and flexible for a productive workflow.

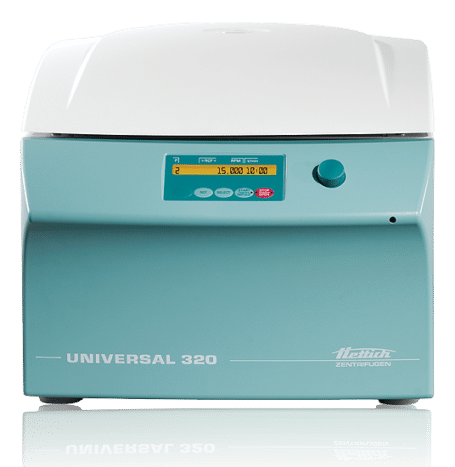

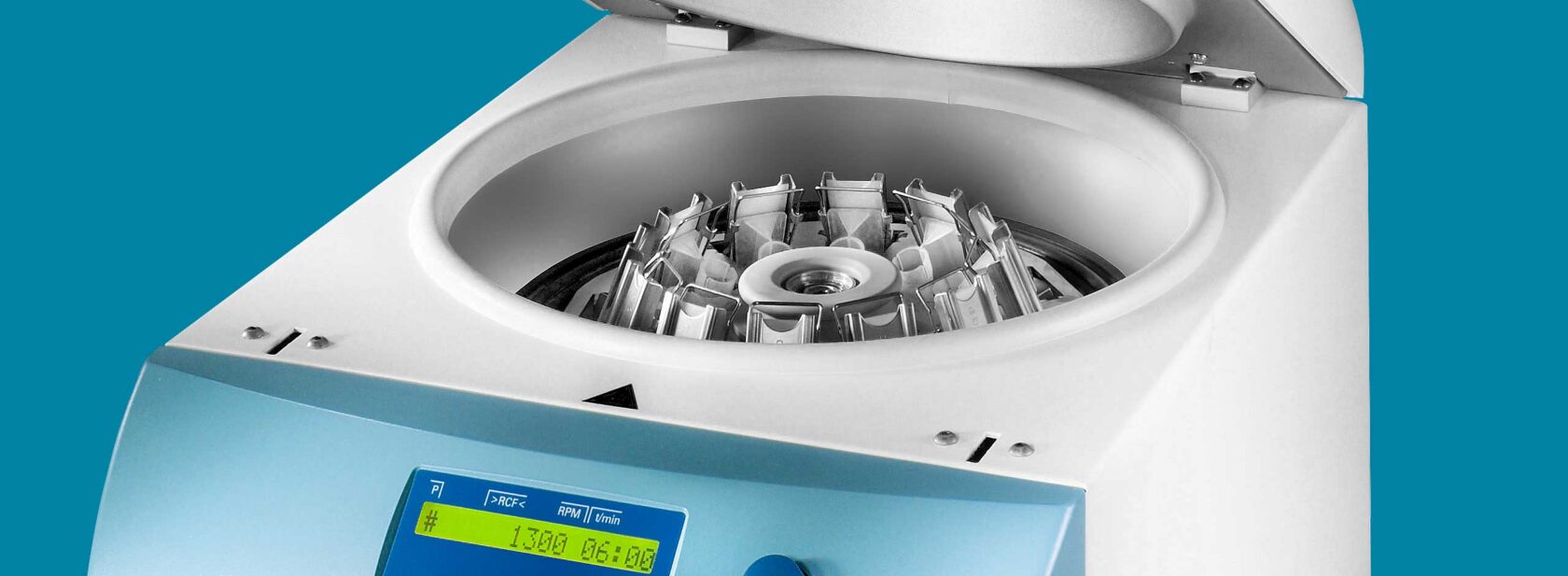

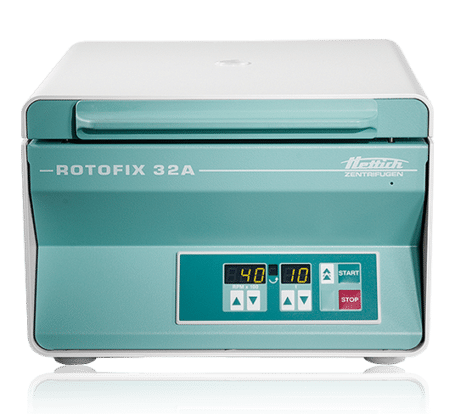

The Hettich Cyto-System provides greater flexibility by allowing our cytology Clip Rotor to be used in two of our most popular general-purpose benchtop centrifuges, the ROTOFIX 32 A and UNIVERSAL 320.  No need to change your method or your accessories, the Hettich Clip Rotor for cytology is compatible with popular cytocentrifuge accessories currently on the market.

Spend Less

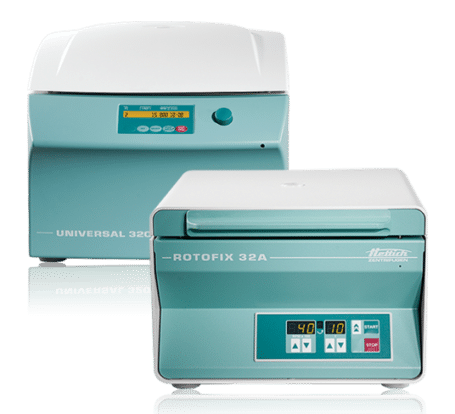

General-purpose capability eliminates the need to purchase an expensive dedicated cytocentrifuge. Spin all common tubes, micro-plates and cyto-clips in the same high-performance centrifuge. Two benchtop models to choose from.

View centrifuge packages

Versatile

Our 12-place Clip Rotor is available in basic (open) and shielded (closed- w/bio-containment) formats. The Hettich Clip Rotor accommodates 0.2 mL to 6 mL, single, double and large funnel formats.

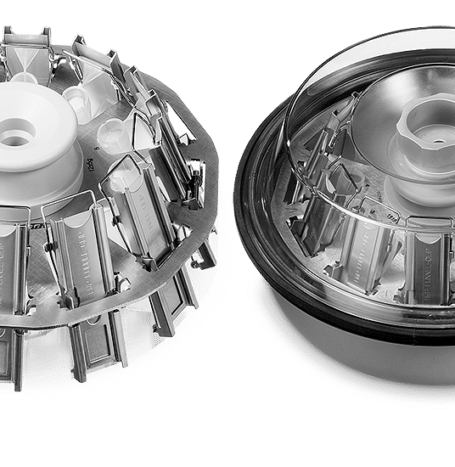

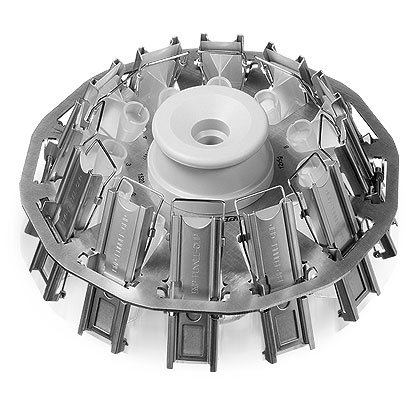

Basic Clip-Rotor (Open)

Shielded Clip-rotor (Closed)

Bio-Seal Rotors

In addition to our popular Clip Rotor, we offer a unique Bio-Seal Rotor with bio-containment (please inquire for more details).

Tell me more

Hettich Cyto-System Accessories

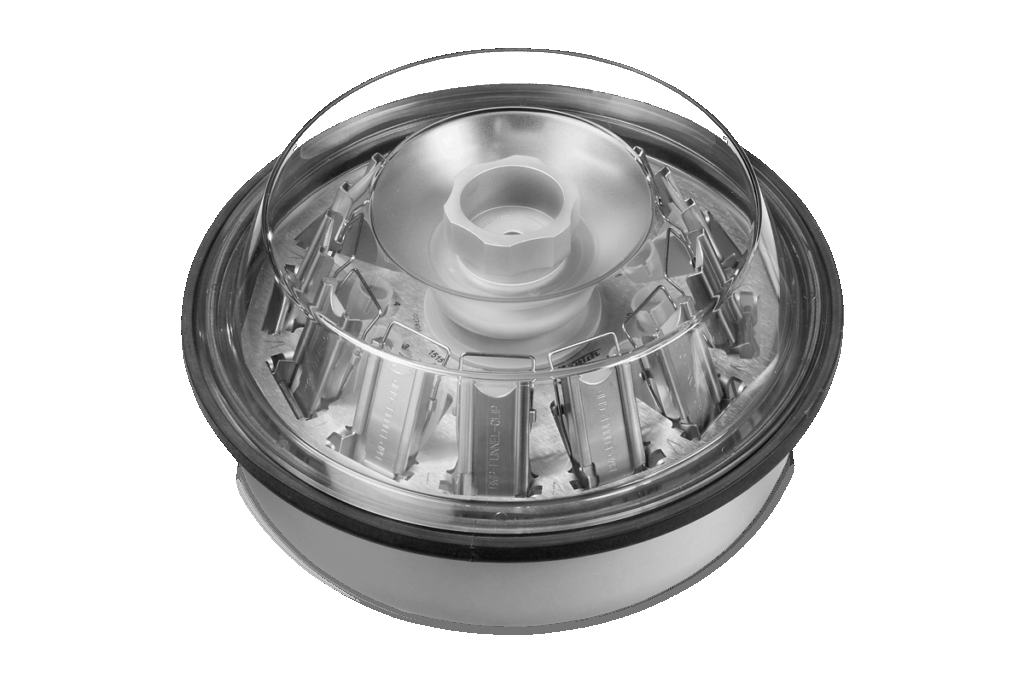

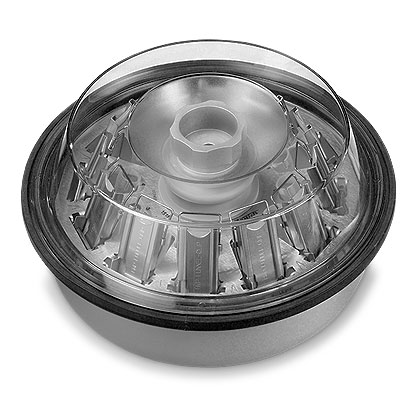

Closed Clip-Rotor w/bio-containment

Max. Capacity:
12-place
Max. RPM:
2,000
Max. RCF:
438

Cyto Clips For cyto chambers

Clips, cytology clip rotor, autoclavable, 4/pk

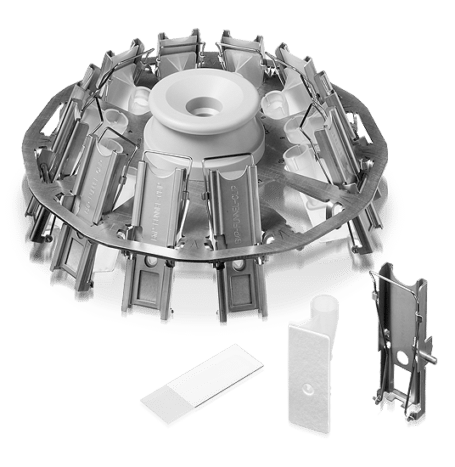

Open Clip-Rotor

Max. Capacity:
12-place
Max. RPM:
2,000
Max. RPM:
438

Cyto Funnel Disposable

The practical disposable cyto chambers eliminate the problem of cross-contamination with cells and save time as there is no need for cleaning and disinfection. The filter card / seal fixed to the chamber guarantees that handling is very simple.

Rotor Stand For Open Clip-rotor

Stand for basic, open, cytology clip-rotor only

Cyto Funnel Reusable

These cyto chambers can be re-used many times and are supplied without filter cards / seals. They must be cleaned and disinfected after use before they are used again.

Cytology Packages

Cytology
Clip Rotor Only Package

For current owners of the ROTOFIX 32 A or UNIVERSAL 320 centrifuges. The package comes complete with choice of Open or Closed clip rotor and accessories. Please specify rotor type when ordering (basic or shielded)

Slide Qty
Cyto clips
Funnel - 0.4 mL
RPM
RCF
12
12
(50) Single, Disposable
2,000
438
PACKAGE CONTENTS

(1) Basic or Shielded Cytology Rotor, (2) Steel Cyto Clip 6-packs, (1) Cell Funnel Disposable 50-pack

Request More Information

Cytology
Starter Package - Basic with Centrifuge

The Clip Rotor Starter Package – Basic includes your choice of the ROTOFIX 32 A or UNIVERSAL 320 centrifuge with the basic – open clip rotor and accessories. Many a-la-carte options are also available, contact us for more details.

Slide Qty
Volume (ml)
Size (mm)
RPM
RCF
12
0.4 - 6
--
2,000
438
PACKAGE CONTENTS

(1) ROTOFIX 32 A or UNIVERSAL 320 Centrifuge, (1) Basic Cytology Clip Rotor, (2) Cyto Clip 6-packs, (1) Cell Funnel, disposable 50-pack

Request More Information

Cytology
Starter Package - Shielded with Centrifuge

The Clip Rotor Starter Package – Shielded includes your choice of the ROTOFIX 32 A or UNIVERSAL 320 centrifuge with the shielded – closed clip rotor and accessories. Many a-la-carte options are also available, contact us for more details.

Slide Qty
Volume (ml)
Size (mm)
RPM
RCF
12
0.4 - 6
--
2,000
438
PACKAGE CONTENTS

(1) ROTOFIX 32 A or UNIVERSAL 320 Centrifuge, (1) Shielded Cytology Clip Rotor, (2) Cyto Clip 6-packs, (1) Cell Funnel, disposable 50-pack

Request More Information
clipart of clipboard in blue

Suggested Parameters
For urine with Hettich Clip Rotor

Funnel
Run Time
RPM
RCF
6 ml
10 min.
1,500
247
clipart of clipboard in blue

Suggested Parameters
For CSF With Hettich Clip Rotor

Note: For cerebrospinal fluid and other body fluids such as effusions, ascites, FNA, etc.

Funnel
Run Time
RPM
RCF
0.4 ml
6 min.
1,300
185
