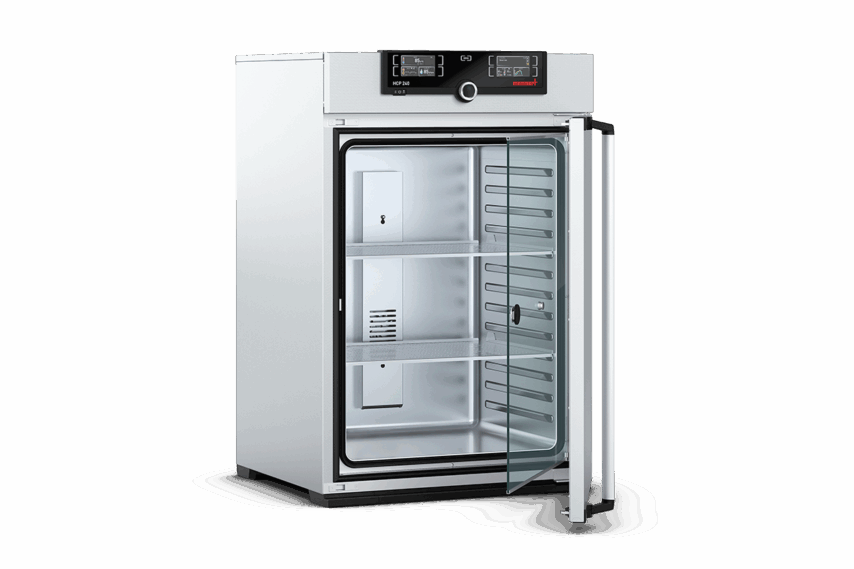

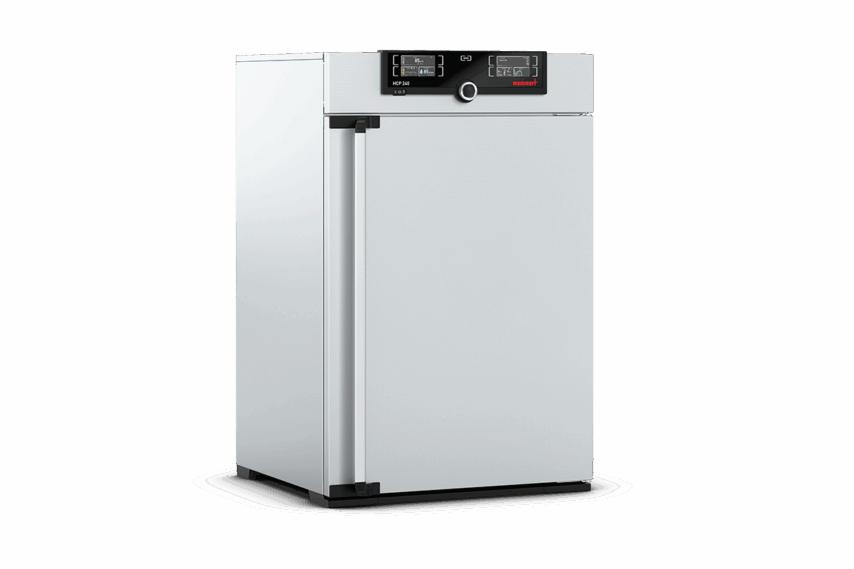

HCP240

Humidity Chamber

Internal Volume
241 L (8 cu.ft.)
Temp. Range
+7 to +90 °C
Dimensions (in)
29.75 x 46.5 x 27.25

Standard Delivery Humidity Chamber

Memmert Climate Chambers Overview

Various stability/constant climate chambers, humidity chambers, and environmental test chambers are highly efficient and provide accurate controls for a homogeneous and stable environment. Learn more about the many benefits Memmert series climate chambers have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock).

Inner Door

Additional heated inner glass door.

Internals

2 perforated stainless steel shelf/shelves

Entry Port

Entry port (silicone), 40 mm clear diameter, for introducing connections, moisture tight, can be closed by silicone stopper, at the back, centre left.

Calibration Certification

Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh.

Warranty

3-year warranty

Specifications


Model
HCP240
Internal volume (cuft)
8
Temp. range
+7 above ambient temperature up to +90 °C
Set Temp. Range
+18 to +90 °C
Set Temp. Accuracy
0.1 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Control Panel
TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Programming
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Heating
Large-area multi-function heating system on four sides with additional door and back heating to avoid condensation
Humidity rh
Max. 70 %, non-condensing
Interior Dims (WxHxD) in.
23.5 x 32 x 19.5 (d less 1.25 in. for fan)
Max. number of internals
12
Exterior dims (WxHxD) in.
29.75 x 46.5 x 27.25 (d +2.25 in. door handle)
Weight (lbs.)
243
Power
115 V, 50/60 Hz, approx. 1840 W
Warranty
3 years
Other
Active humidity control
