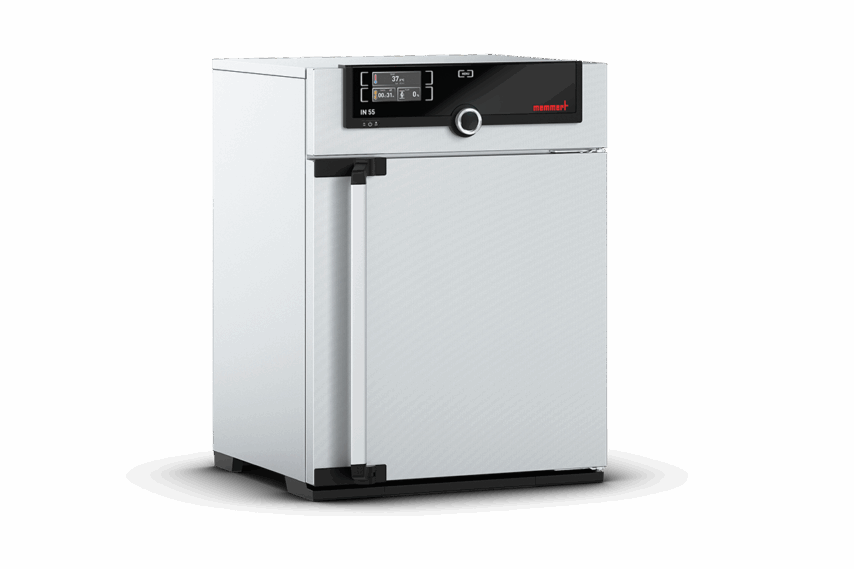

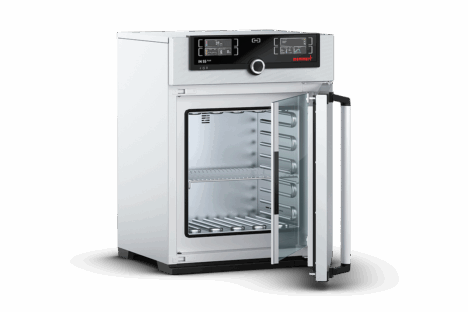

Memmert IN/IF 55

Standard/Heated Incubator

Internal Volume
53 L (2 cu.ft.)
Temp. Range
+5 to +80 °C
Dimensions (in)
23 x 31 x 20.25

Standard Delivery Incubator

Memmert Incubators Overview

Memmert incubators are ideal for all applications with temperatures up to +80°C – specifically for incubating living cultures at +37 °C. Learn more about the many benefits Memmert series incubators have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock)

Calibration Certificate

Works calibration certificate for +37°C

Internals

1 stainless steel grid(s) – electropolished

Warranty

3-years

Inner Door

Inner glass door

Specifications


Model
Memmert IN55, IN55plus, IF55, IF55plus
Internal volume (cuft)
2
Temp. range
IN55/IN55plus: At least 5 above ambient temperature to +80 °C. IF55/IF55plus: Min. 10°C above ambient up to +80°C
Sensor
1 Pt100 sensor DIN class A in 4-wire-circuit. Plus models: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
0.1 °C
Control Panel
ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display. Plus models: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Sterilization
Plus models: Fixed sterilization programme (4 hours/160°C) for sterilization of working chamber, not for sterilizing the load
Convection/Fan
(IN) Natural Convection / (IF) Forced Air (Fan)
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). Plus models: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Temp. Control
Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Plus models: Add mechanical temperature limiter TB, Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Plus models: Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Plus models: Visual and acoustic
Humidity rh
max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Interior Dims (WxHxD) in.
15.75 x 15.75 x 13 (IF models: d less 1.5 in. for fan)
Exterior dims (WxHxD) in.
23 x 31 x 20.25 (d +2.25 in. door handle)
Power
115 V, 50/60 Hz, approx. 800 W
Warranty
3 years
Request More Info on the Memmert IN/IF 55

You may also consider...

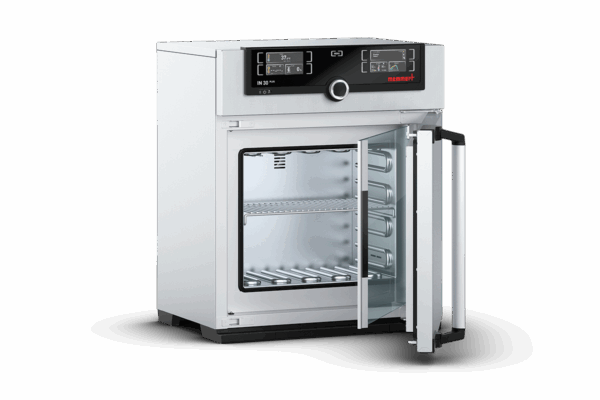

Memmert IN30, IN30plus, IF30, IF30plus

A natural convection (IN30, IN30plus) or forced air circulation, (IF30, IF30plus) 1 cu.ft., standard/heated incubator with homogenous and gentle warming for valuable chamber loads. Stainless steel construction, intuitive single or twin display, 3-year warranty, and a temperature range up to +80 °C.

Learn More

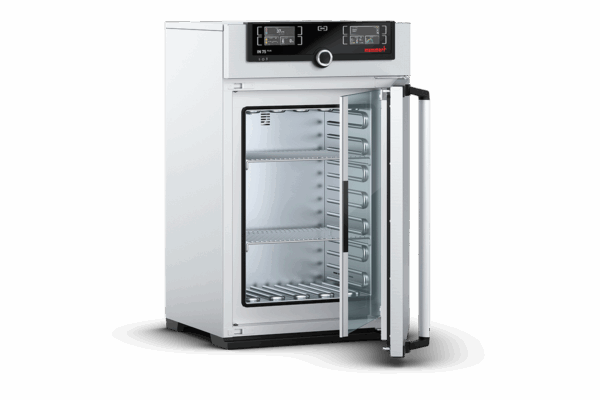

Memmert IN75, IN75plus, IF75, IF75plus

A natural convection (IN75, IN75plus) or forced air circulation, (IF75, IF75plus) 3 cu.ft., standard/heated incubator with homogenous and gentle warming for valuable chamber loads. Stainless steel construction, intuitive single or twin display, 3-year warranty, and a temperature range up to +80 °C.

Learn More
