EBA 200 | S

SMALL CENTRIFUGE

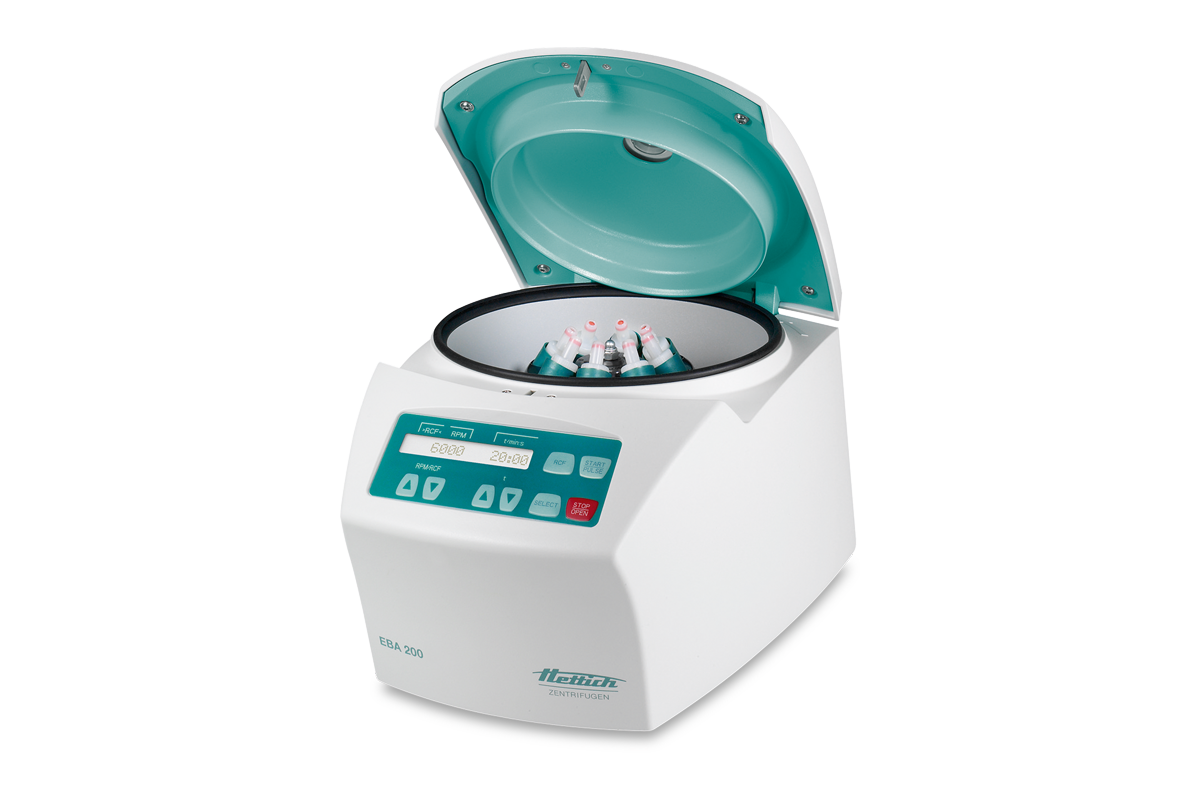

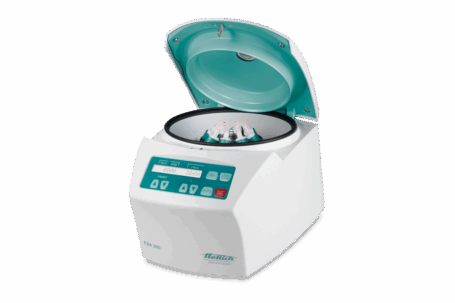

hettich EBA 200 small centrifuge open

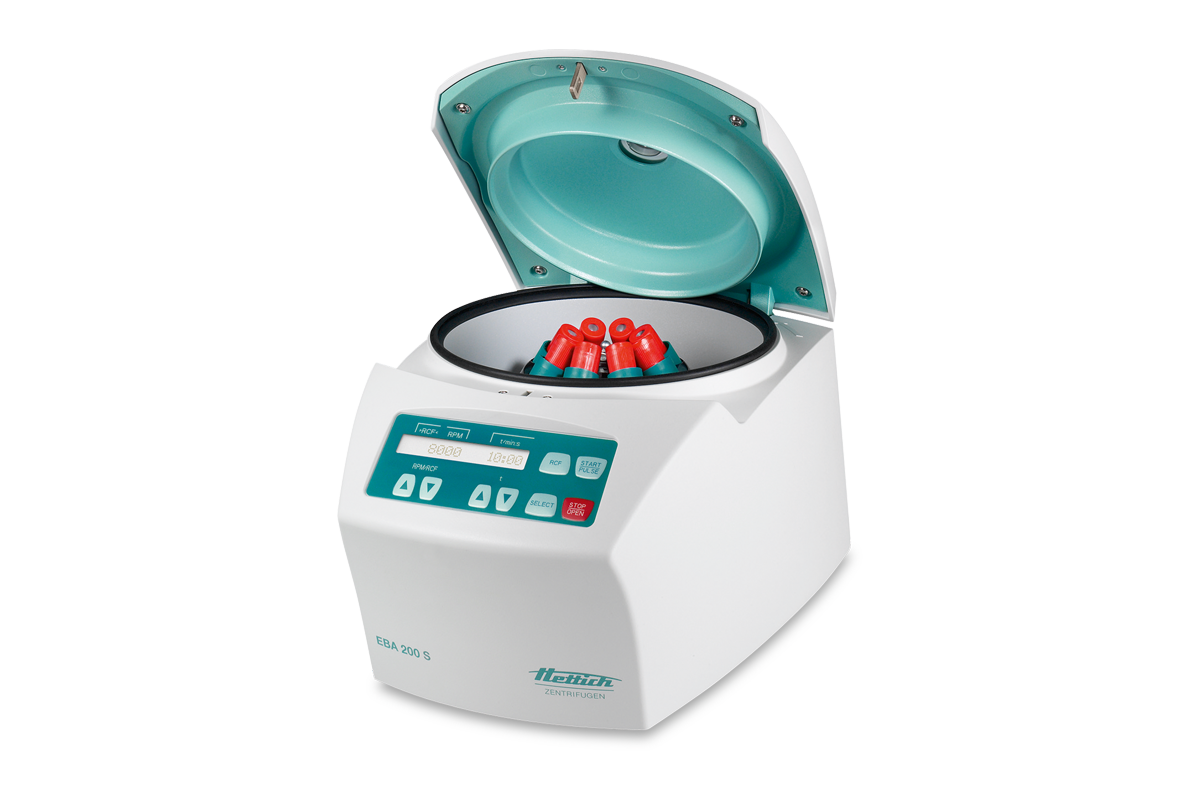

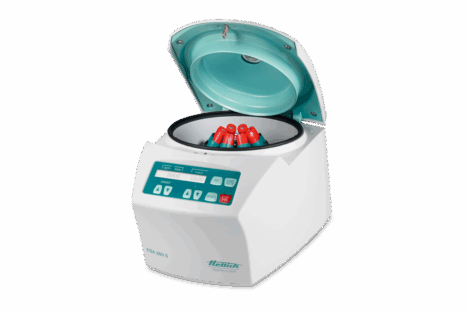

Hettich EBA 200 S small centrifuge open
Max. Capacity
8 x 15 mL
Max. RPM/RCF
8,000/6,153 (200 S)
Temperature Control
Ambient

BLOOD / URINALYSIS / PEDIATRIC

Compact performance with built-in versatility

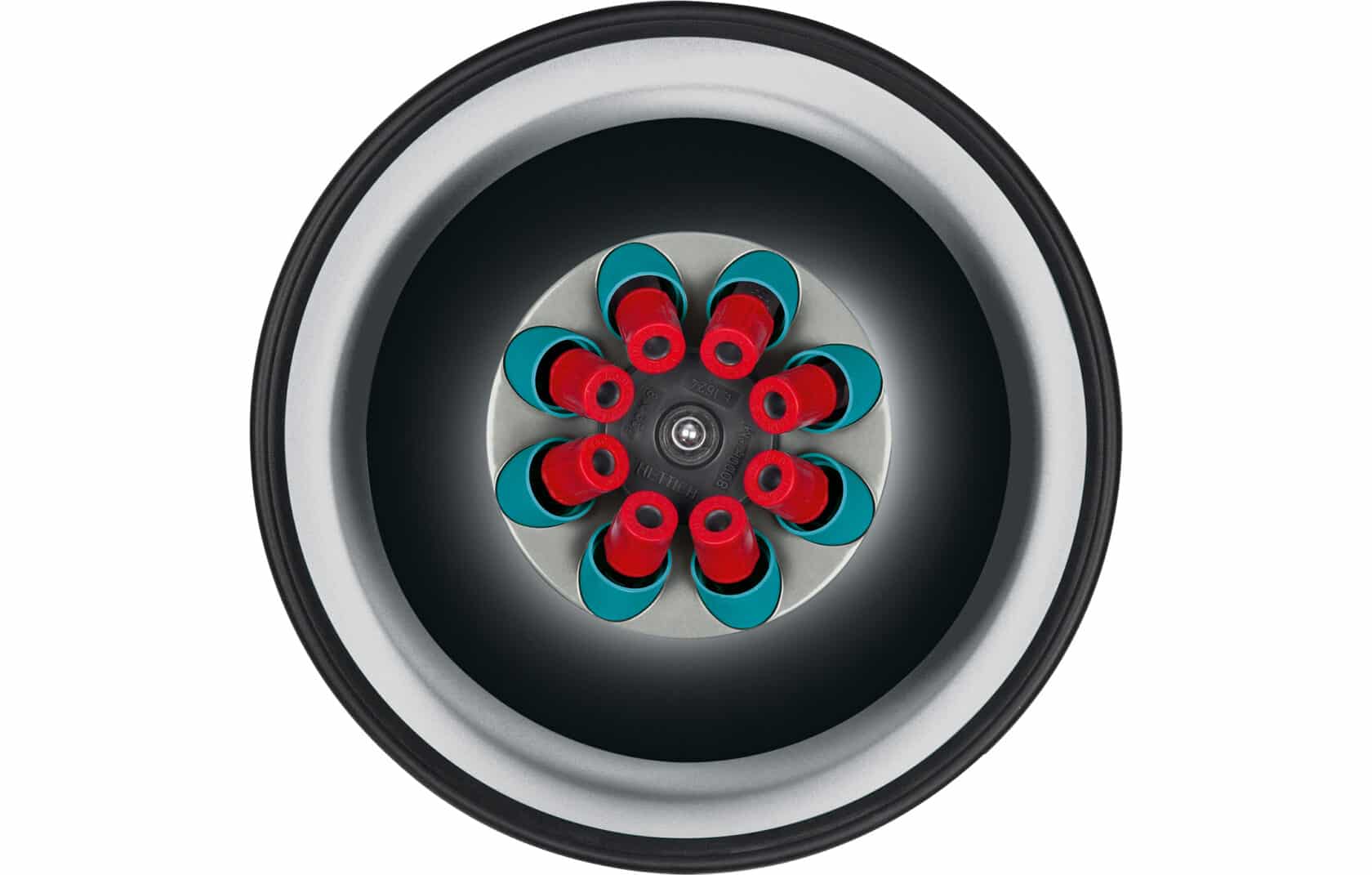

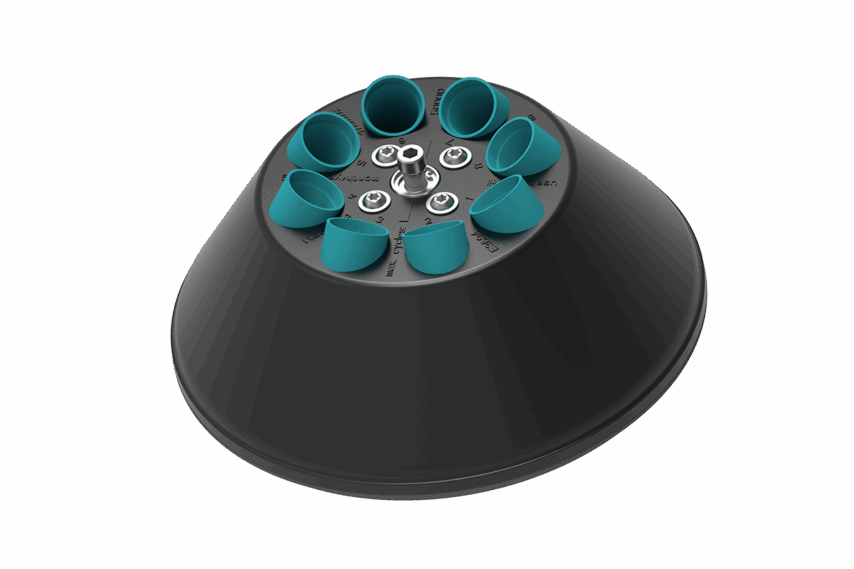

The EBA 200 is a compact clinical centrifuge offering performance and safety for small sample volumes. The EBA 200 features a built-in, versatile, 8-place, fixed-angle rotor and adjustable LCD for convenient and quick operation. The higher-performance “S” version is best for a quick turnaround of time-sensitive samples and delivers an RCF of 6,153, making it ideal for STAT, PPP, and Coag. Achieve consistent platelet in just minutes for Platelet Poor Plasma (PPP).

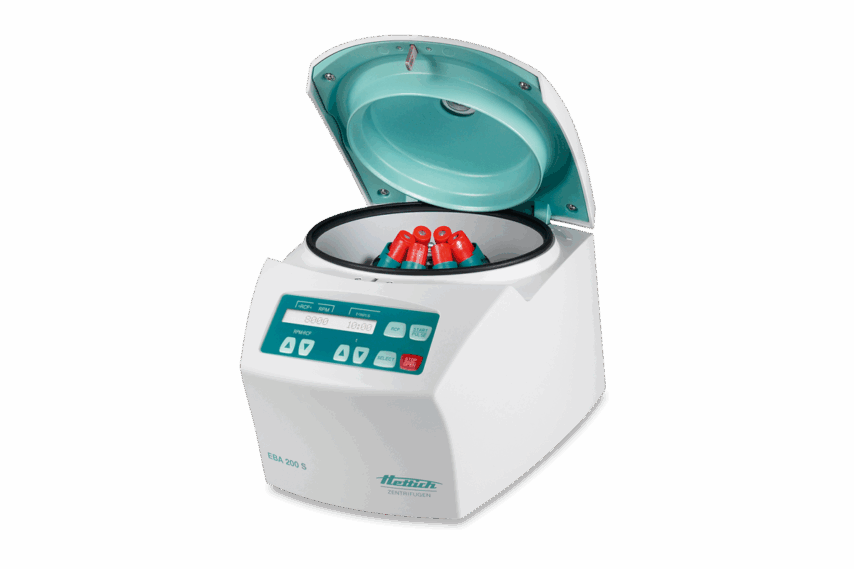

Hettich EBA 200 S small centrifuge open

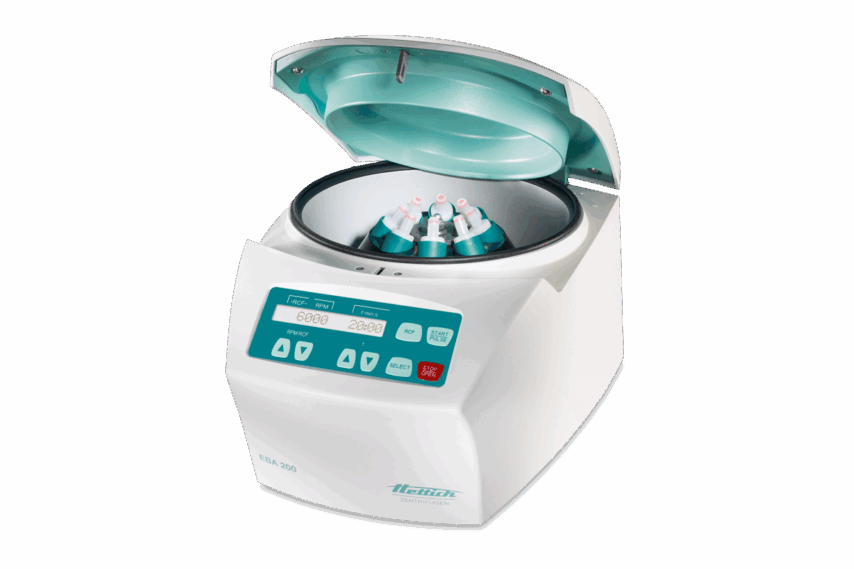

The Hettich EBA 200 small centrifuge

See the versatility of the Hettich EBA 200 small centrifuge

AABB Standards-Compliant Product Logo

AABB Standards-Compliant Product

Products that achieve AABB’s Standards-Compliant Product recognition have been thoroughly reviewed by AABB and confirmed as adhering to the AABB Standards related to equipment, process control, and document control.

Quiet Operation Icon

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

icon

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five 5 Year Warranty Icon

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified Icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Hettich ambulance icon

STAT Centrifuge

The EBA 200 S provides rapid separation for a quick turnaround of your STAT chemistry, coag. and pediatric samples. Achieve consistent platelet counts in just minutes. Max. speeds of 8,000 RPM in a fixed-angle rotor.

More about STAT centrifugation
Hettich small centrifuge end of cycle panel

End-of-cycle notification

The Hettich EBA 200 comes standard with optional visual and acoustic end-of-cycle notifications for an efficient workflow.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS
Hettich EBA 200 small centrifuge open

Shown below are the most common application packages for the EBA 200 centrifuge. Custom packages are available, please inquire for details.

EBA 200 | S Application Packages

Hettich EBA 200 small centrifuge open

EBA 200
BLOOD TUBE PACKAGE - 8

The EBA 200 Blood Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 200 centrifuge, built-in, fixed-angle rotor and adapters for 13 x 75/100 mm blood tubes. In addition to this package, many a-la-carte options are available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
1.6 - 5
13 x 75
≤ 6,000
≤ 2,697
8
4 - 7
13 x 100
≤ 6,000
≤ 3,461
8
8.5 - 10
16 x 100
≤ 6,000
≤ 3,461
4
8
16 x 125
≤ 6,000
≤ 3,461
PACKAGE CONTENTS

(1) Centrifuge, (1) Built-in Angle Rotor, (8) Adapters 13 x 75 mm, (8) Adapters 13 x 100 mm

Request More Information
Hettich EBA 200 small centrifuge open

EBA 200 S (HIGH SPEED)
BLOOD TUBE PACKAGE - 8

The EBA 200 S Blood Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 200 S centrifuge, built-in fixed-angle rotor and adapters for 13 x 75/100 mm blood tubes. In addition to this package, many a-la-carte options are available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
1.6 - 5
13 x 75
≤ 8,000
≤ 4,794
8
4 - 7
13 x 100
≤ 8,000
≤ 6,153
8
8.5 - 10
16 x 100
≤ 8,000
≤ 6,153
4
8
16 x 125
≤ 8,000
≤ 6,153
PACKAGE CONTENTS

(1) Centrifuge, (1) Built-in Angle Rotor, (8) Adapters 13 x 75 mm, (8) Adapters 13 x 100 mm

Request More Information
Hettich EBA 200 small centrifuge open

EBA 200
PEDIATRIC TUBE PACKAGE - 8

The EBA 200 Pediatric Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 200 centrifuge, 8-place built-in, fixed-angle rotor and adapters for 10.7 x 36 mm tubes. In addition to this package, many a-la-carte options are available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
0.5
10.7 x 36
≤ 6,000
≤ 2,214
PACKAGE CONTENTS

(1) Centrifuge, (1) Built-in Angle Rotor, (8) Adapters 0.5 mL

Request More Information
Hettich EBA 200 small centrifuge open

EBA 200 S (HIGH PERFORMANCE)
PEDIATRIC TUBE PACKAGE - 8

The EBA 200 S Pediatric Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 200 S centrifuge, 8-place built-in, fixed-angle rotor and adapters for 10.7 x 36 mm tubes. In addition to this package, many a-la-carte options are available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
0.5
10.7 x 36
≤ 8,000
≤ 3,935
PACKAGE CONTENTS

(1) Centrifuge, (1) Fixed-angle Rotor, (8) Adapters 0.5 mL

Request More Information
Hettich EBA 200 small centrifuge open

EBA 200
URINALYSIS PACKAGE - 4

The EBA 200 Urinalysis Package 4 comes complete with everything you need to perform your application. This includes the EBA 200 centrifuge and a built-in, fixed-angle rotor for KOVA tubes. In addition, many a-la-carte options are available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
12 KOVA
17 x 102
6,000
≤ 3,461
4
15 Conical
17 x 120
6,000
≤ 3,461
PACKAGE CONTENTS

(1) Centrifuge, (1) Built-in, Angle Rotor

Request More Information

Supports Over

19Application Configurations
TUBE OPTIONS

standard, blood, pediatric, urine, and conical up to 15 mL

EBA 200 | S
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications


hettich EBA 200 small centrifuge open

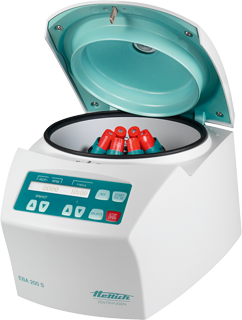

Hettich EBA 200 S small centrifuge open
Model
EBA 200
EBA 200 S
Max. Capacity
8 x 15 ml
8 x 15 ml
Max. RPM/RCF
6,000/3,461
8,000/6,153
Temp. Control
Ambient
Ambient
Dims. (HxWxD) mm
228 x 261 x 353
228 x 261 x 353
Dims. (HxWxD) in
9 x 10 x 14
9 x 10 x 14
Weight (kg)
9
11
Weight (lbs.)
20
24
Power supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Built-in, Fixed-angle
Built-in, Fixed-angle
Request More Information
