ROTOFIX 46 | H

BENCHTOP CENTRIFUGE

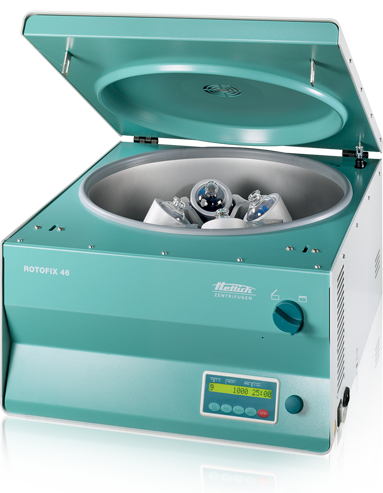

Hettich ROTOFIX 46 benchtop centrifuge
Max. Capacity
4 x 290 ml | 4 x 100 ml
Max. RPM/RCF
4,000/3,095 | 2,000/984
Temperature Control
+10 °C to +90 °C (46 H)

INDUSTRIAL / ENVIRONMENTAL

Industrial centrifuge for specialty applications

The ROTOFIX 46, available with optional heating from +10 to +90 °C, offers solutions for organic and inorganic chemistry, preparatory and analytical chemistry, electroplating, and petro-chemistry. A universal swing-out rotor also accommodates standard tubes & bottles ranging from 3 mL to 290 ml.

Quiet Operation Icon

Quiet Operation

Our centrifuges are as quiet as a normal conversation and will not increase noise levels within your lab.

icon

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Hettich Safety-Lock ensures a safe, tight closure of the all metal centrifuge chamber during operation.

Five 5 Year Warranty Icon

Five Year Warranty

Quality you can trust. All Hettich centrifuges come with a limited 5-year warranty for worry-free ownership.

Fully Certified Icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Hettich ROTOFIX 46 ASTM package

5 ASTM Application Packages

The ROTOFIX 46 offers 5 different ASTM packages ensuring that you will find the right one for your application. The ROTOFIX 46 H is the heated version should your application require it.

Hettich ROTOFIX 46 Chrome bath package

Spin 6 Chrome Bath Tubes

Spin (6) 30 mL Chrome Bath tubes with the ROTOFIX 46 Chrome Bath Package.

Hettich ROTOFIX 46 SCHLENK PACKAGE

Schlenk Package

Spin (6) 25 or 50 mL Schlenk tubes.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS
Hettich ROTOFIX 46 benchtop centrifuge

Shown below are the most common application packages for the ROTOFIX 46 centrifuge. Custom packages are available, please inquire for details.

ROTOFIX 46 | H Application Packages

Hettich ROTOFIX 46 5 ASTM Application Packages

ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE - 50

The ROTOFIX 46 ASTM Package 50 comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 50 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
50
45 x 130
≤ 2,000
≤ 984
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 50 mL

Request More Information
Hettich ROTOFIX 46 5 ASTM Application Packages

ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE - 100A

The ROTOFIX 46 ASTM Package 100A comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
58 x 161
≤ 2,000
≤ 984
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL

Request More Information
Hettich ROTOFIX 46 5 ASTM Application Packages

ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE - 100B

The ROTOFIX 46 ASTM Package 100B comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
44 x 168
≤ 2,000
≤ 961
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL

Request More Information
Hettich ROTOFIX 46 5 ASTM Application Packages

ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE - 100C

The ROTOFIX 46 ASTM Package 100C comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
37 x 200
≤ 2,000
≤ 961
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL

Request More Information
Hettich ROTOFIX 46 5 ASTM Application Packages

ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE - 100D

The ROTOFIX 46 ASTM Package 100D comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
45 x 165
≤ 2,000
≤ 961
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL

Request More Information
Hettich ROTOFIX 46 Spin 6 Chrome Bath Tubes

ROTOFIX 46 / ROTOFIX 46 H
CHROME BATH Package

The ROTOFIX 46 Chrome Bath Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
30
24 x 151
≤ 2,000
≤ 917
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets

Request More Information
Hettich ROTOFIX 46 Schlenk Package

ROTOFIX 46 / ROTOFIX 46 H
SCHLENK Package

The ROTOFIX 46 Schlenk Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
25
24 x 146.5
≤ 2,000
≤ 783
6
50
38 x 146.5
≤ 2,000
≤ 805
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (6) Adapters

Request More Information
Hettich ROTOFIX 46 5 ASTM Application Packages

ROTOFIX 46 / ROTOFIX 46 H
BABCOCK Package

The ROTOFIX 46 Babcock Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets, adapters and inserts. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
--
165 (height)
≤ 934
≤ 215
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Inserts

Request More Information

Supports Over

210Application Configurations
TUBE OPTIONS

ASTM, Schlenk, Babcock, Chrome Bath, Standard up to 250 mL, Conical and Skirted up to 50 mL, Bottles up to 290 mL, Specialty

ROTOFIX 46 | H
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications


Hettich ROTOFIX 46 benchtop centrifuge
Hettich ROTOFIX 46 benchtop centrifuge
Model
ROTOFIX 46
ROTOFIX 46 H
Max. Capacity
4 x 290 ml
4 x 100 ml
Max. RPM/RCF
4,000/3,095
2,000/984
Temp. Control
Ambient
+10 °C to +90 °C
Dims. (HxWxD) mm
345 x 538 x 647
345 x 538 x 647
Dims. (HxWxD) in
14 x 21 x 25
14 x 21 x 25
Weight (kg)
60
60
Weight (lbs.)
132
132
Power supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Specialty
Exchangeable
Request More Information

Resources

Hettich ROTOFIX 46 H benchtop centrifuge product sheet

ROTOFIX 46 | H Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 242.8 kb
Download now

ROTOFIX 46 | H Operator’s Manual

Operator's manual for model(s) ROTOFIX 46 and ROTOFIX 46 H. When using Hettich equipment, please refer to your products operators manual for important safety and product-use instructions. read more...

File type: PDF
File size: 3.2 mb
Download now
Hettich Benchtop Centrifuges sell sheet

Benchtop Centrifuges Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 182.4 kb
Download now

Resource Library

Find all ROTFIX 46 | H resources in the Resource Library.

Need Help Choosing a Centrifuge?

Hettich manufactures a complete range of centrifuges for nearly all standard laboratory applications. To help you choose the right centrifuge for your lab, we created a quick laboratory centrifuge guide to help narrow your choice.
