ROTINA 380 | R

BENCHTOP CENTRIFUGE

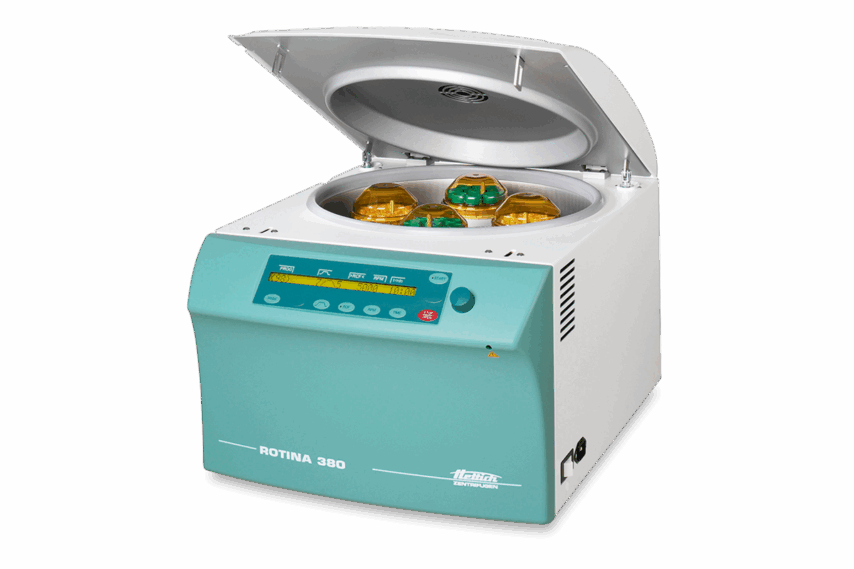

hettich ROTINA 380 Benchtop Centrifuge open

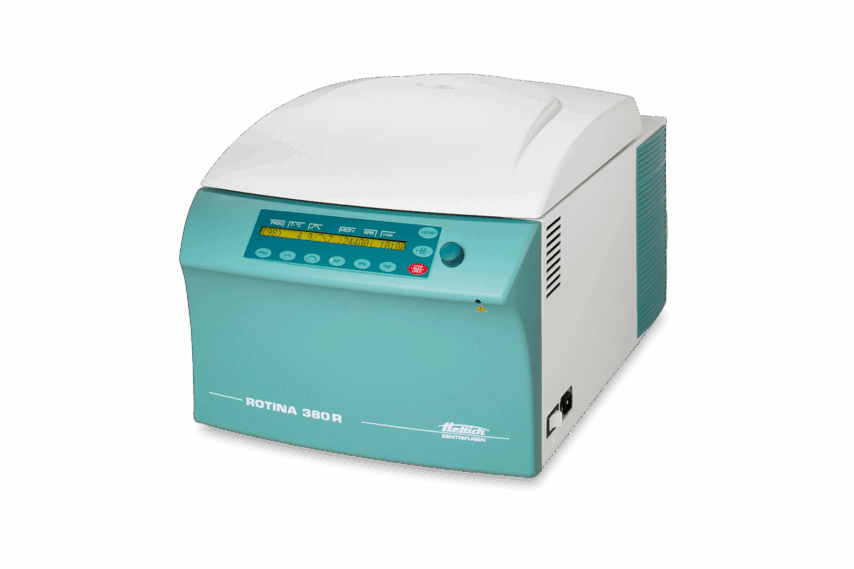

hettich ROTINA 380 R Benchtop Centrifuge closed

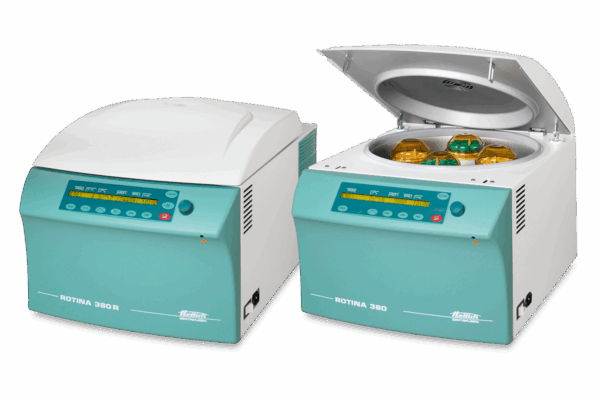

Hettich ROTINA 380 R and ROTINA 380 Benchtop Centrifuge
Max. Capacity
4 x 290 mL
Max. RPM/RCF
15,000/24,000
Temperature Control
-20 to +40 ºC (380 R)

BLOOD / CELL CULTURE / BOTTLES / PLATES

Extremely versatile centrifuge that maximizes your bench space and exceeds performance.

High-performance benchtop centrifuge supporting a wide array of accessories for multiple applications in just one rotor. The ROTINA 380 requires minimal bench space at a width of only 457 mm (18 inches), with or without temperature control. Capable of spinning up to 76 blood tubes, 36 conical, 32 urine and 12 plates the ROTINA 380 vastly outperforms its modest size. Its size and performance make it the ideal benchtop centrifuge for most clinical, research and industrial laboratories.

icon

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

icon

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

5 Yr icon

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

clipboard with checkmark icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Hettich ROTINA 380 benchtop centrifuge versa rotor

Versa-Rotor For Multiple Applications

Hettich’s Versa-Rotor saves time and effort. Spin a variety of media types and many configurations all with one rotor.

Hettich ROTINA 380 benchtop centrifuge blood tube package

Up to 64 Blood Tubes

Spin up to 64 blood tubes with the ROTINA 380 Blood Tube Package – 4 with optional bio-containment lids.

Hettich ROTINA 380 benchtop centrifuge spin 10 microtiter plates

Spin 10 Microtiter Plates

Capable of spinning up to 10 microtiter plates at a max. RPM of 4,000 and max. RCF of 2,397.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS

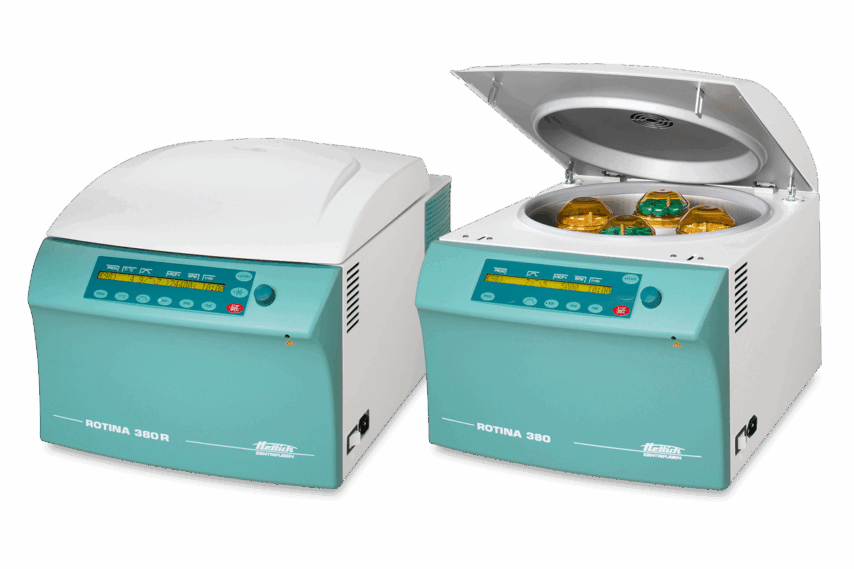

Hettich ROTINA 380 R, ROTINA 380 benchtop centrifuge

Shown below are the most common application packages for the ROTINA 380 centrifuge. Custom packages are available, please inquire for details.

ROTINA 380 | R Application Packages

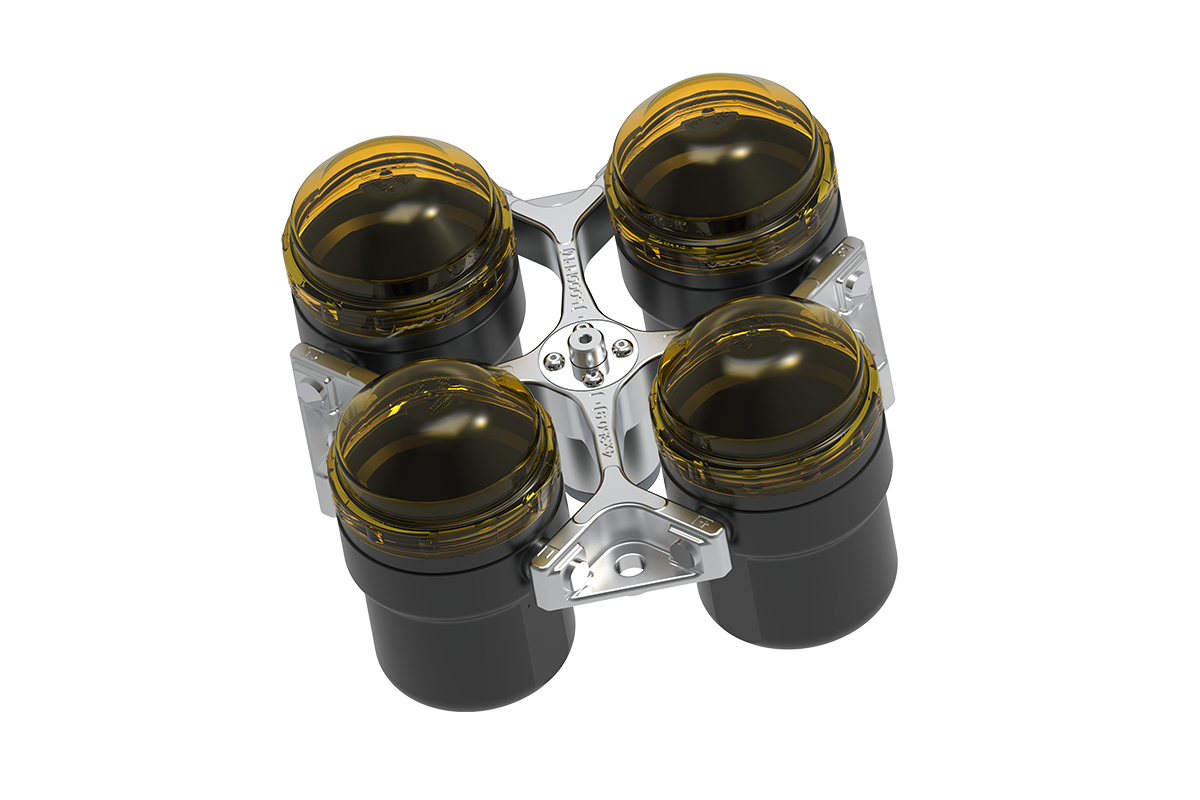

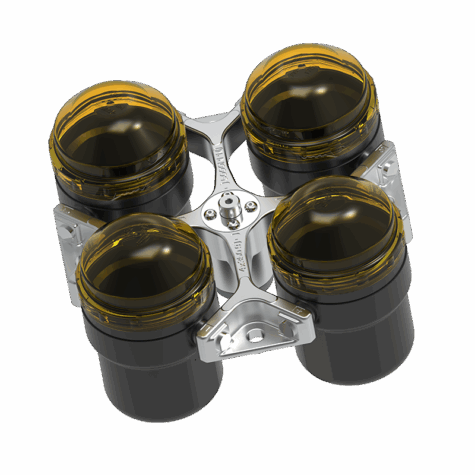

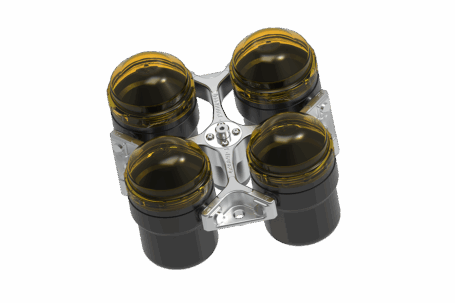

Hettich ROTINA 380 benchtop centrifuge blood tube package

ROTINA 380 / ROTINA 380 R
BLOOD TUBE PACKAGE - 4

The ROTINA 380 Blood Tube Package 4 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
64
1.6 - 7
13 x 75/100
≤ 5,000
≤ 4,668
52
4 - 10
16 x 75/100
≤ 5,000
≤ 4,668
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100, (4) Bio-containment Lids (optional)

Request More Information
Hettich ROTINA 380 benchtop centrifuge blood tube package

ROTINA 380 / ROTINA 380 R
BLOOD TUBE PACKAGE - 2

The ROTINA 380 Blood Tube Package 2 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
32
1.6 - 7
13 x 75/100
≤ 5,000
≤ 4,668
26
4 - 10
16 x 75/100
≤ 5,000
≤ 4,668
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100, (4) Bio-containment Lids (optional)

Request More Information

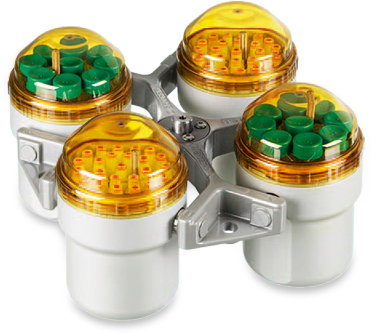

Hettich ROTINA 380 benchtop centrifuge cell culture package

ROTINA 380 / ROTINA 380 R
CELL CULTURE PACKAGE - 4

The ROTINA 380 Cell Culture Package 4 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
36
15 Conical
17 x 120
≤ 5,000
≤ 4,863
16
50 Conical
29 x 115
≤ 5,000
≤ 4,863
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-containment Lids (optional)

Request More Information
Hettich ROTINA 380 benchtop centrifuge cell culture package

ROTINA 380 / ROTINA 380 R
CELL CULTURE PACKAGE - 2

The ROTINA 380 Cell Culture Package 2 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
18
15
17 x 120
≤ 5,000
≤ 4,863
8
50
29 x 115
≤ 5,000
≤ 4,863
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 15 mL, (2) Adapters 50 mL, (4) Bio-containment Lids (optional)

Request More Information

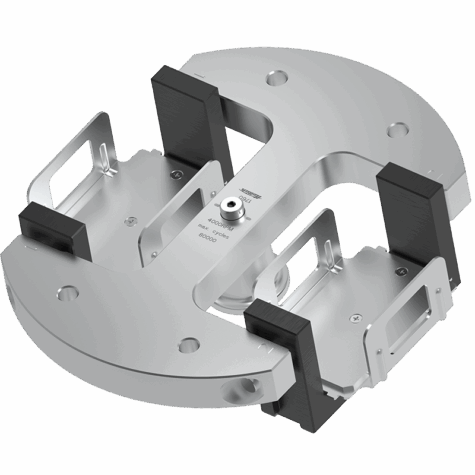

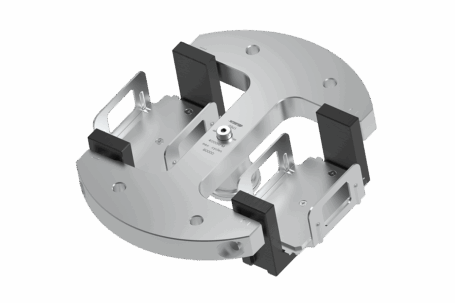

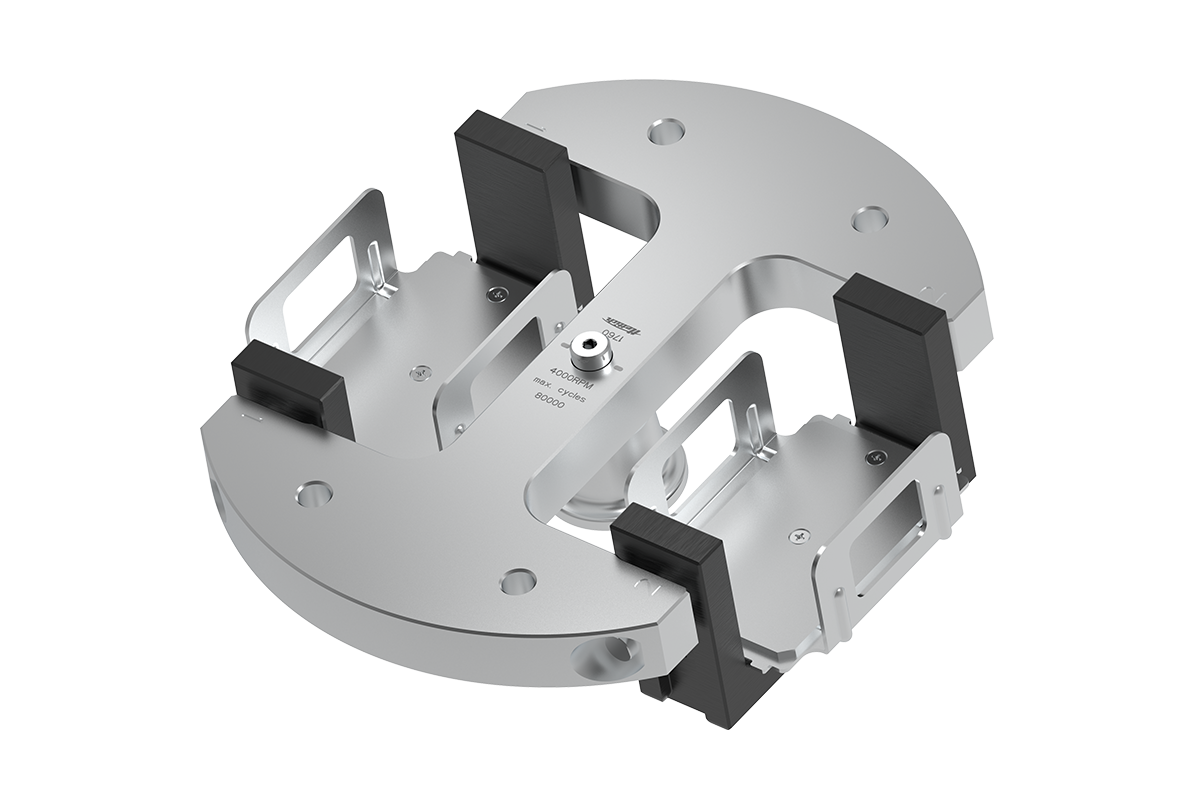

Hettich ROTINA 380 benchtop centrifuge spin 10 microtiter plates

ROTINA 380 / ROTINA 380 R
PLATE Package

The ROTINA 380 Plate Package comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
10
Microtiter
--
≤ 4,000
≤ 2,397
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (2) Buckets

Request More Information
Hettich ROTINA 380 benchtop centrifuge bottle package

ROTINA 380 / ROTINA 380 R
BOTTLE Package

The ROTINA 380 Bottle Package comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.

BOTTLE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
250
61 x 122
≤ 5,000
≤ 4,863
4
290
62 x 137
≤ 5,000
≤ 4,863
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids (optional)

Note: Compatible with other bottle sizes up to 290 ml please inquire

Request More Information

Supports Over

234Application Configurations
TUBE OPTIONS

blood, pediatric, urine, conical and skirted up to 50 mL, standard up to 250 mL, plates, bottles up to 290 mL

ROTINA 380 | R
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications

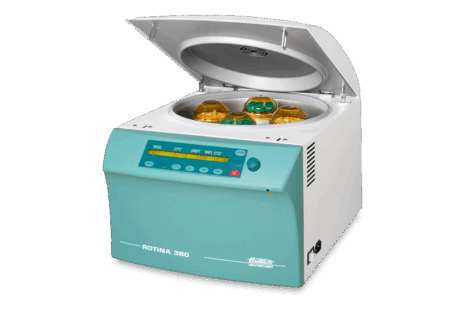

hettich ROTINA 380 Benchtop Centrifuge open
hettich ROTINA 380 R Benchtop Centrifuge closed
Model
ROTINA 380
ROTINA 380 R
Max. Capacity
4 x 290 ml
4 x 290 ml
Max. RPM/RCF
15,000/24,400
15,000/24,400
Temp. Control
Ambient
-20 °C to +40 °C
Dims. (HxWxD) mm
418 x 457 x 600
418 x 457 x 750
Dims. (HxWxD) in
16.5 x 18 x 23.5
16.5 x 18 x 29.5
Weight (kg)
58.5
88.5
Weight (lbs)
129
195
Power Supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Plates
Exchangeable
Request More Information

You may also consider...

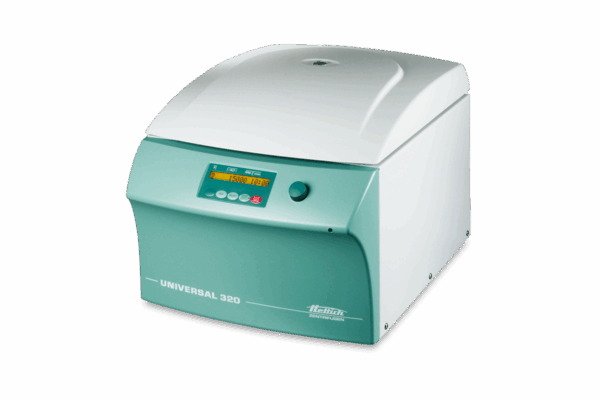

Hettich UNIVERSAL 320 benchtop centrifuge closed
UNIVERSAL 320

Compact footprint, only 16 in. wide, with or without temperature control. Capable of spinning a variety of standard tubes, plates, cytology clips and bottles (up to 200 ml), the UNIVERSAL 320 centrifuge offers true all-in-one capability.

Learn More

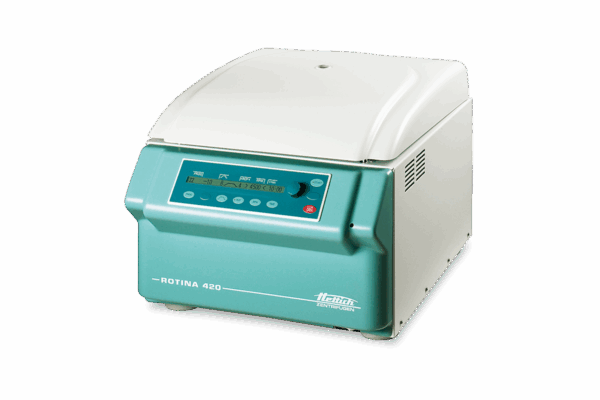

hettich ROTINA 420 Benchtop Centrifuge
ROTINA 420

For large sample volumes, yet not overly large in size. Featuring Versa-Rotor for tubes, bottles and plates eliminating the need to change, purchase or store additional rotors.

Learn More

Comparison Tool

Compare different centrifuge models to find the one that is right for you.

Resources

Hettich ROTINA 380 R benchtop centrifuge product sheet

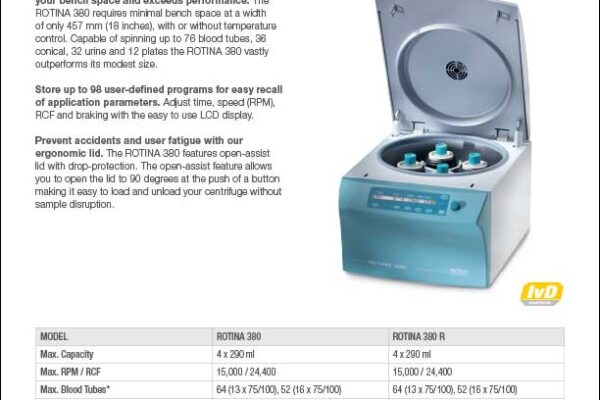

ROTINA 380 | R Product Sheet
