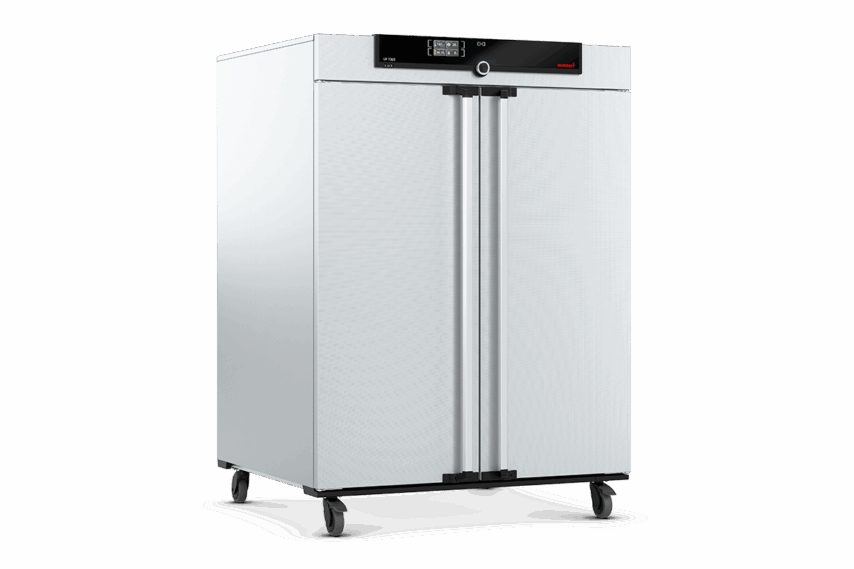

Memmert UF1060

Cleanroom Drying Oven

Memmert UF 1060 door open
Memmert UF 1060
Internal Volume
1060 L (37 cu.ft.)
Temp. Range
+5 to +300 °C
Dimensions (in)
48 x 67.75 x 40.75

Standard Delivery Universal Oven

Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock)

Warranty

3-year warranty

Internals

2 stainless steel grid(s), electropolished

Calibration Certificate

Works calibration certificate, calibration at +160°C

Specifications

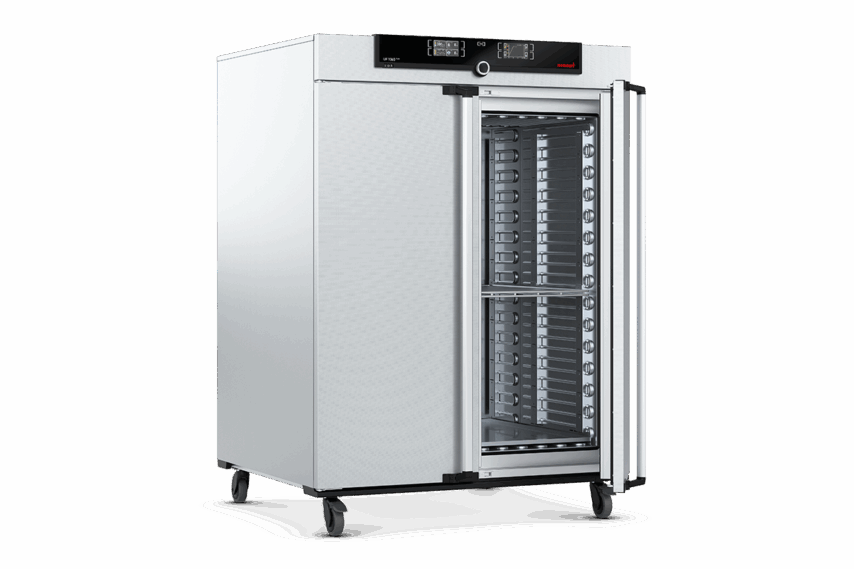

Memmert UF 1060 door open
Model
Memmert UF1060, UF1060 Cleanroom, UF1060plus
Internal volume (cuft)
37
Temp. range
+10 above ambient to +300 °C
Sensor
1 Pt100 sensor DIN class A in 4-wire-circuit. Plus models: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Control Panel
SingleDISPLAY, adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display. Plus models: TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Function HeatBALANCE
Plus models: Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Convection/Fan
(UF) Forced Air Fan
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap. Not Applicable to Cleanroom.
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). Plus models: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Temp. Control
Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Plus models: Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Plus models: Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Plus models: Visual and acoustic. Not Applicable to Cleanroom
Humidity rh
Max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Interior Dims (WxHxD) in.
41 x 47.25 x 33.5 (UF models: d less 1.5 in. For fan)
Exterior dims (WxHxD) in.
48 x 67.75 x 40.75 (d +2.25 in. door handle)
Weight (lbs.)
556
Power
400 V, 3 phases, 50 Hz approx. 7000 W
Warranty
3 years
Request More Info on the Memmert UF 1060

You may also consider...

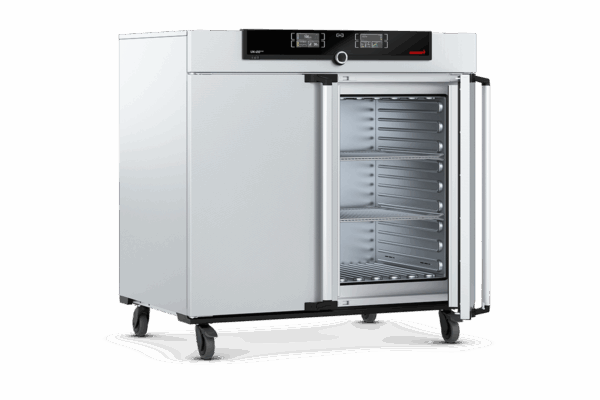

Memmert UN/UF 450 door open
Memmert UN450, UN450plus, UF450, UF450plus

A natural convection (UN450, UN450plus) or forced air circulation, (UF450, UF450plus), 16 cu.ft. universal oven made of high-quality, hygienic, easy-to-clean stainless steel with best-in-class ventilation and control technology, overtemperature protection, and precisely tuned heating technology.

Learn More

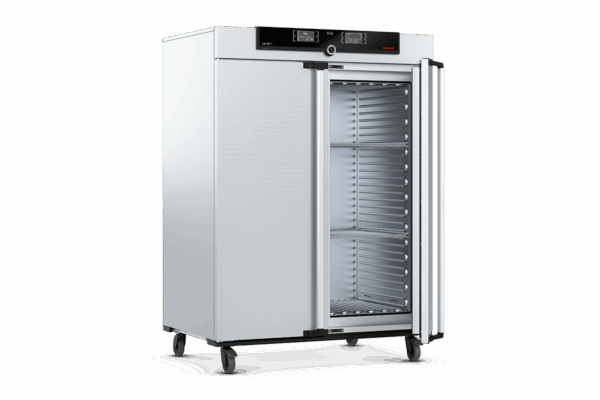

Memmert UN/UF 750 door open
