HettCube Incubators
Efficient use of valuable space and more control with an intuitive touchscreen.
Accurate. Intelligent. Efficient.
Learn why the HettCube is the new benchmark in standard and cooled incubators.
Efficient use of valuable space
With the 43 in. touch screen, HettCube incubators and cooled incubators guarantee intuitive operation with flexible and individual setting options and many new features.
The proven combination of natural and forced convection ensures stable and homogeneous temperatures in a much larger part of the interior than conventional incubators. This offers you up to 30% more validated useful space with the same interior space. In addition, the high design of the HettCube incubators requires up to 50% less floor space with comparable capacity.

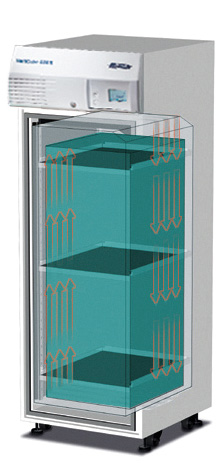

Even Temperature Distribution
HettCube incubators combine the advantages of natural and forced convection. The fan is housed outside the usable space so that there is a low airflow inside the incubator. Temperature is maintained by radiated heat, preventing the formation of hot spots.
Maximum usable space in the smallest footprint
Most incubators lose up to 10% of their “useable” internal volume after validation.

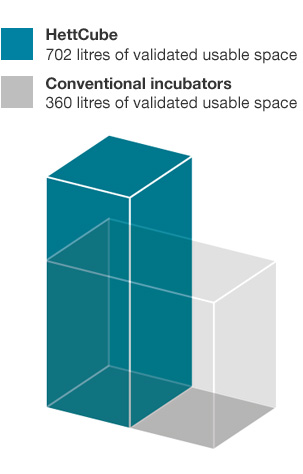

30 % more validated usable space
Due to the HettCube’s gentle airflow and edge-to-edge temperature uniformity, they provide up to 30 % more validated usable space per DIN 12880:2007-05 than a traditional incubator with the same internal volume.
50 % smaller Footprint
The HettCube’s upright design requires up to 50 % less floor space than a traditional incubator with a similar capacity. The space-saving footprint allows you to nearly double your capacity by accommodating two HettCube incubators within the same footprint as one conventional incubator.
User Experience
HettCube design features make for an uncomplicated, trouble-free user experience.
Easy cleaning
The internal lining, drawers, and shelves are made of stainless steel and can be readily removed for thorough cleaning and autoclaving.
External connection
One bushing on the rear panel (42 mm opening) for independent measurements and external devices.
Quiet operation
Our incubators are quieter than normal conversation when running, and will not increase the noise levels within your lab. A HettCube incubator has a remarkably low noise output of ≤ 44 dB(A).
Maximum use of space

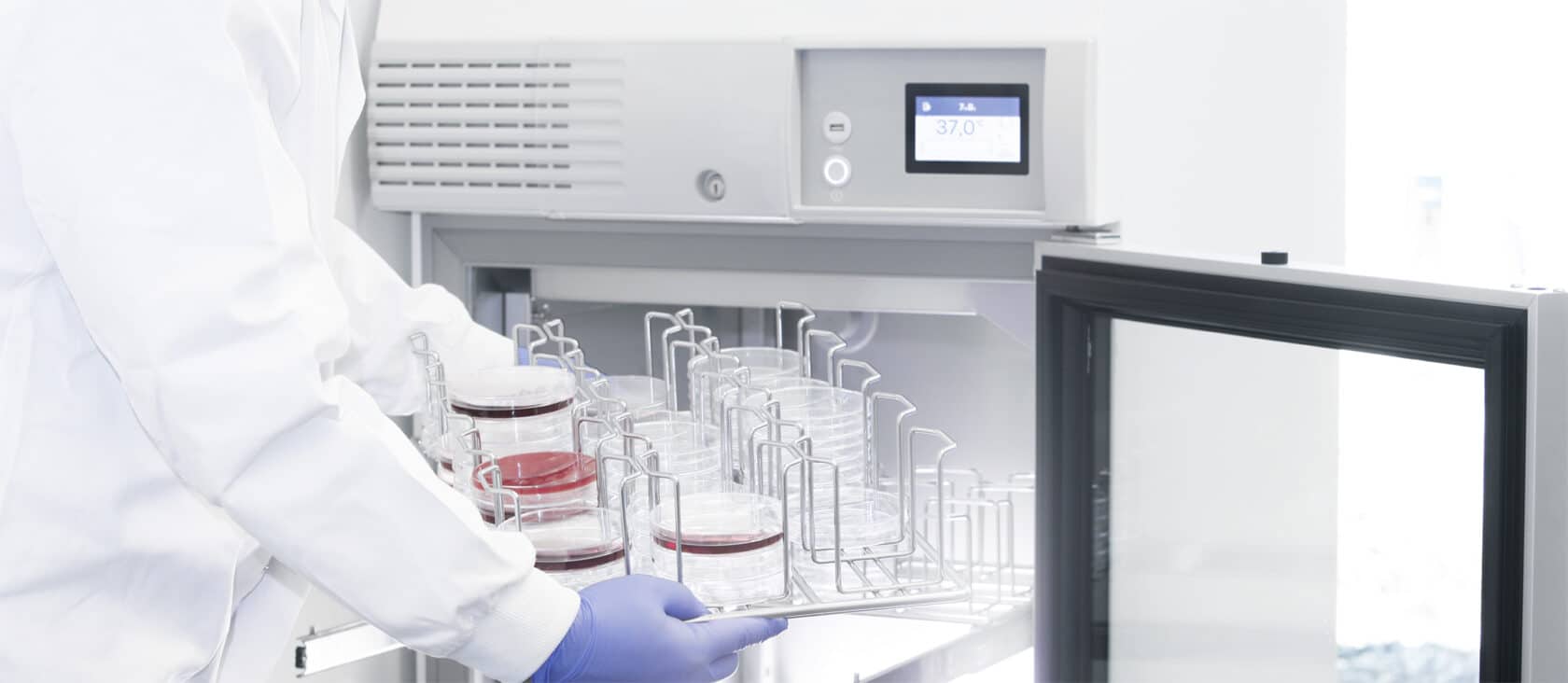

Get higher loading capacities in less space by using the special inserts. Our rack for Petri dishes and the Loewenstein shelf, allows large numbers of cultures to be processed quickly and economically. They provide more space, clear order and comfortable handling.
Fast and easy access
HettCubes need only one door and do not require an inner door. This allows for actual one-hand operation. A HettCube incubator will close automatically at an opening angle below 90°. A magnetic mechanism assists this automatic closing.
Stay mobile
The HettCube 400 and 600 models have heavy-duty casters for moving them to the desired position. Once in place, they can be fixed with adjustable feet.
Save space
The door does not require space at the side to open. Meaning the incubator can be positioned in a corner or close to other lab equipment. The door hinges can be easily swapped from one side of the incubator to the other.
Optimum safety
The practical door-locking mechanism locks both the door and the control panel at the same time. This prevents inadvertent changes to parameters and harmful effects on samples.
Unimpeded access
The stable telescopic rails of the Hettich Tray System (HTS) can be extended up to 70% horizontally. This allows you to reach the samples easily in every corner.
Heat Compensation
Temperature fluctuations are actively and immediately compensated for.
HettCube with glass door condensation diagram.
Low environmental impact
HettCube incuabtors are safe for the ennvironment both inside and out.
Minimal operating costs
At an operating temperature of 37 °C, a HettCube incubator consumes less than 0.05 kWh.
First-class isolation
With an advanced control system and water-driven foam insulation, HettCubes will maintain a constant set temperature even if there is a difference of only 1 °C from ambient temperature.
Certifications
HettCubes comply with all relevant safety and regulatory standards and come with a HettCert 9-point factory certificate.
HettCube Incubator Models
Incubators and cooled incubators with touchscreen
HettCube 200 | R
Internal volume (L) : 150
Validated usable volume (L) : 82
Temp. range: incubators | cooled incubators: 1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
HettCube 400 | R
Internal volume (L) : 310
Validated usable volume (L) : 199
Temp. range: incubators | cooled incubators: 1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
HettCube 600 | R
Internal volume (L) : 520
Validated usable volume (L) : 351
Temp. range: incubators | cooled incubators: 1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
HettCube
Accessories
See our complete line of HettCube incubator accessories and optional equipment.
Show meHettCube Resources
Below are resources to help you get familiar with the HettCube line of incubators.
HettCube Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...
File type: PDF
File size: 263.0 kb
Download now
File size: 263.0 kb
HettCube Brochure
This brochure provides a detailed overview of the product features, benefits and components. (more…) read more...
File type: PDF
File size: 1.4 mb
Download now
File size: 1.4 mb
HettCube Operator’s Manual
HettCube operator's manual for models 200 | R, 400 | R, 600 | R. When using Hettich equipment, please refer to your products operators manual for important safety and product-use instructions. read more...
File type: PDF
File size: 13.0 mb
Download now
File size: 13.0 mb
About Hettich HettCube Incubators | Animated Video
About Hettich HettCube Incubators | Animated Video Learn why HettCube is the new benchmark in standard and cooled incubators. HettCube incubators make efficient use of valuable space by providing up to 30% more validated useable space for cultures than incubators with similar capacity. Incubators without cooling operate at just 1°C read more...
