ROTOFIX 32 A

BENCHTOP CENTRIFUGE

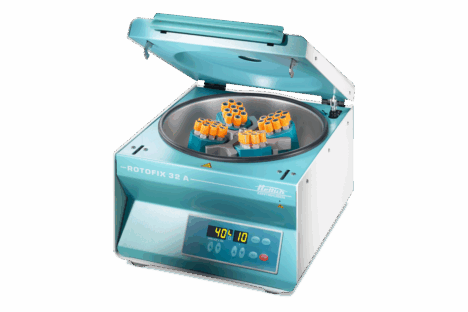

Hettich ROTOFIX 32 A benchtop centrifuge open
Max. Capacity
4 x 100 mL / 6 x 94 mL
Max. RPM/RCF
6,000/4,226
Temperature Control
Ambient

BLOOD / CELL CULTURE / URINE / CYTOLOGY

Rugged and Indispensible

The ROTOFIX 32 A is a rugged, versatile centrifuge for routine laboratory tasks in doctors’ practices and small hospitals. Equipped for several clinical chemistry applications including cytology. With a wide variety of accessories the ROTOFIX 32 A is also used for the preparation of samples in industrial and research laboratories.

Quiet Operation Icon

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

icon

Functional Design

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

Five 5 Year Warranty Icon

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

Fully Certified Icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Hettich ROTOFIX 32 A benchtop centrifuge cyto-system

Doubles as a Cyto-Centrifuge

The ROTOFIX 32 A supports the Hettich Cyto-system which means there is no need to change your method or your accessories. Spin all common tubes and cyto clips using the ROTOFIX 32 A.

Learn More
Hettich ROTOFIX 32 A benchtop centrifuge blood tube package

Up to 20 Blood Tubes

Spin up to 20 blood tubes with the ROTOFIX 32 A Blood Tube Package with optional bio-containment lids.

Hettich ROTOFIX 32 A benchtop centrifuge conical tubes

6 x 50 mL Conical Tubes

Spin (6) 50 mL conical tubes with the ROTOFIX 32 A Cell Culture Package – 6.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS
Hettich ROTOFIX 32 A benchtop centrifuge open

Shown below are the most common application packages for the ROTOFIX 32 A centrifuge. Custom packages are available, please inquire for details.

ROTOFIX 32 A Application Packages

Hettich ROTOFIX 32 A benchtop centrifuge blood tube package

ROTOFIX 32 A
BLOOD TUBE Package

The ROTOFIX 32 A Blood Tube Package comes complete with everything you need to perform your application. This includes the ROTOFIX 32 A centrifuge, swing-out rotor, buckets, adapters for 13 and 16 x 75/100 mm tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
20
1.6 - 7
13 x 75/100
≤ 4,000
≤ 2,558
16
4 - 10
16 x 75/100
≤ 4,000
≤ 2,522
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment Lids (optional)

Request More Information
Hettich ROTOFIX 32 A benchtop centrifuge cell culture package

ROTOFIX 32 A
URINALYSIS Package

The ROTOFIX 32 A Urinalysis Package comes complete with everything you need to perform your application. This includes the ROTOFIX 32 A centrifuge, swing-out rotor, buckets and adapters for KOVA tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
12 - KOVA
17 x 102
≤ 4,000
≤ 2,451
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters KOVA

Request More Information
Hettich ROTOFIX 32 A benchtop centrifuge cell culture package

ROTOFIX 32 A
CELL CULTURE PACKAGE - 4

The ROTOFIX 32 A Cell Culture Package 4 comes complete with everything you need to perform your application. This includes the ROTOFIX 32 A centrifuge, swing-out rotor, buckets and adapters for 15 and 50 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
16
15 Conical
17 x 120
≤ 4,000
≤ 2,612
4
50 Conical
29 x 115
≤ 4,000
≤ 2,576
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL

Request More Information

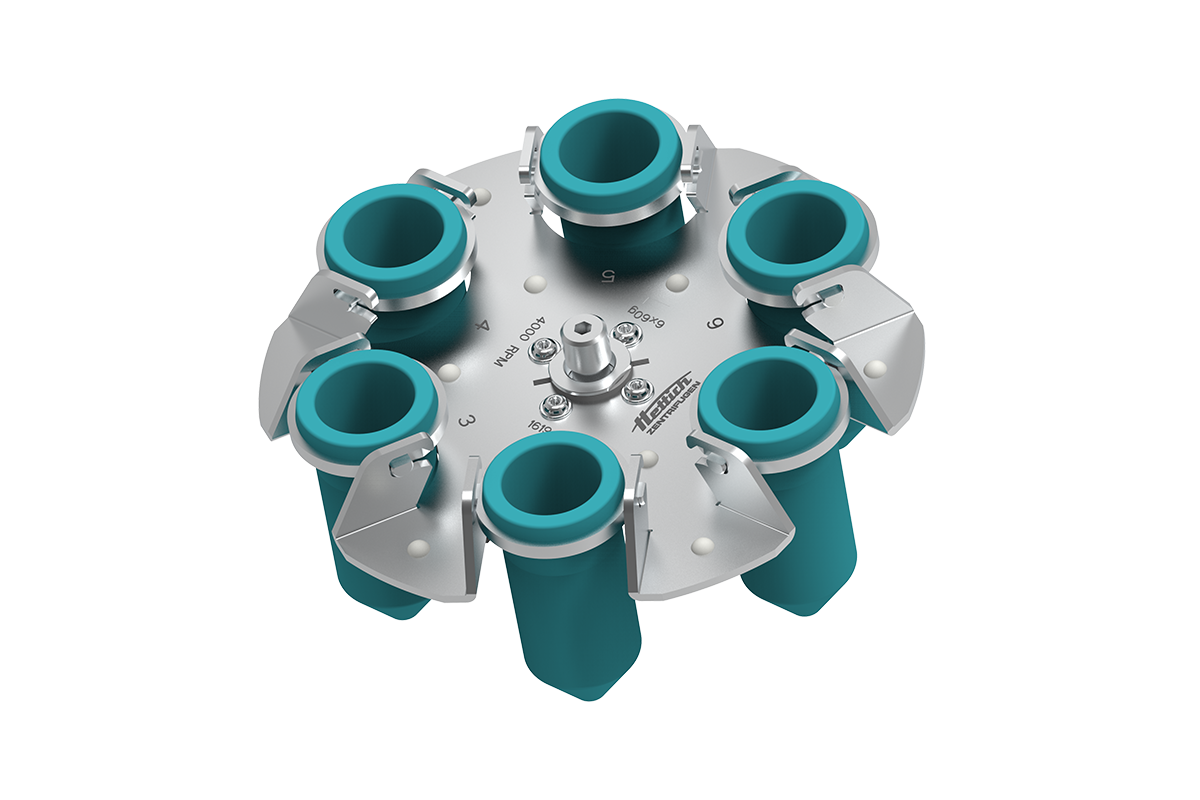

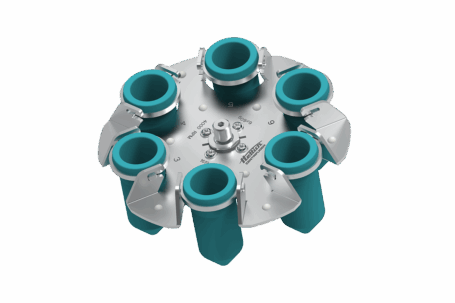

Hettich ROTOFIX 32 A benchtop centrifuge cell culture package

ROTOFIX 32 A
CELL CULTURE PACKAGE - 6

The ROTOFIX 32 A Cell Culture Package 6 comes complete with everything you need to perform your application. This includes the ROTOFIX 32 A centrifuge, swing-out rotor, buckets and adapters for 15 mL tubes. Many a-la-carte options are also available, contact us for more details.

Watch Video
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
15 Conical
17 x 120
≤ 4,000
≤ 2,701
6
50 Conical
17 x 115
≤ 4,000
≤ 2,701
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adapters 15 mL

Request More Information

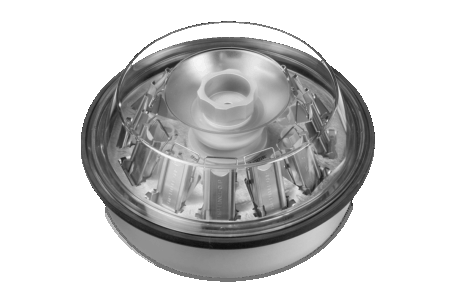

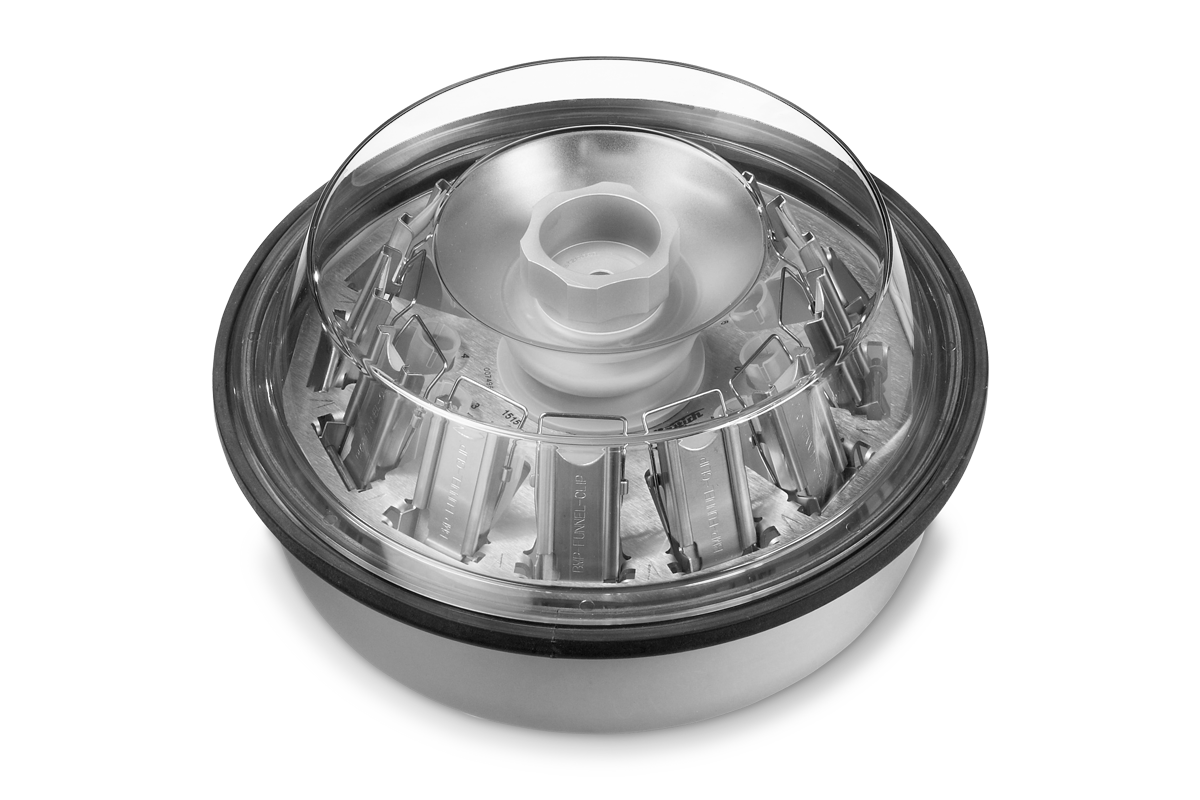

Hettich Cyto System Shielded clip rotor closed

ROTOFIX 32 A
CYTOLOGY PACKAGE - 12

The ROTOFIX 32 A CYTO-CLIP Package for cytology has everything you need to perform your application. The package includes the ROTOFIX 32 A centrifuge, cytology clip rotor with biocontainment, cyto-clips, and cell funnel disposable 50-pack. Many a-la-carte options are also available. Contact us for more details.

CLIP QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
0.4 - 6
--
2,000
438
PACKAGE CONTENTS

(1) Centrifuge, (1) Cytology Clip Rotor w/Bio-containment, (2) Cyto Clip 6-packs, (1) Cell Funnel, disposable, 50 pk, (1) Cyto Rotor Stand

Request More Information
Hettich ROTOFIX 32 A benchtop centrifuge rotor

ROTOR ONLY
CYTOLOGY PACKAGE - 12

The CYTOLOGY ROTOR ONLY Package has everything you need to perform your application. The package includes the cytology clip rotor with biocontainment, cyto-clips, and cell funnel disposable 50-pack. No centrifuge included, works with the ROTOFIX 32 A centrifuge. Many a-la-carte options are also available. Contact us for more details.

CLIP QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
0.4 - 6
--
≤ 2,000
≤ 438
PACKAGE CONTENTS

(1) Cytology Clip Rotor w/Bio-containment, (2) Cyto Clip 6-packs, (1) Cell Funnel 50 ct. disposable, (1) Cyto-Clip Rotor Stand

Request More Information

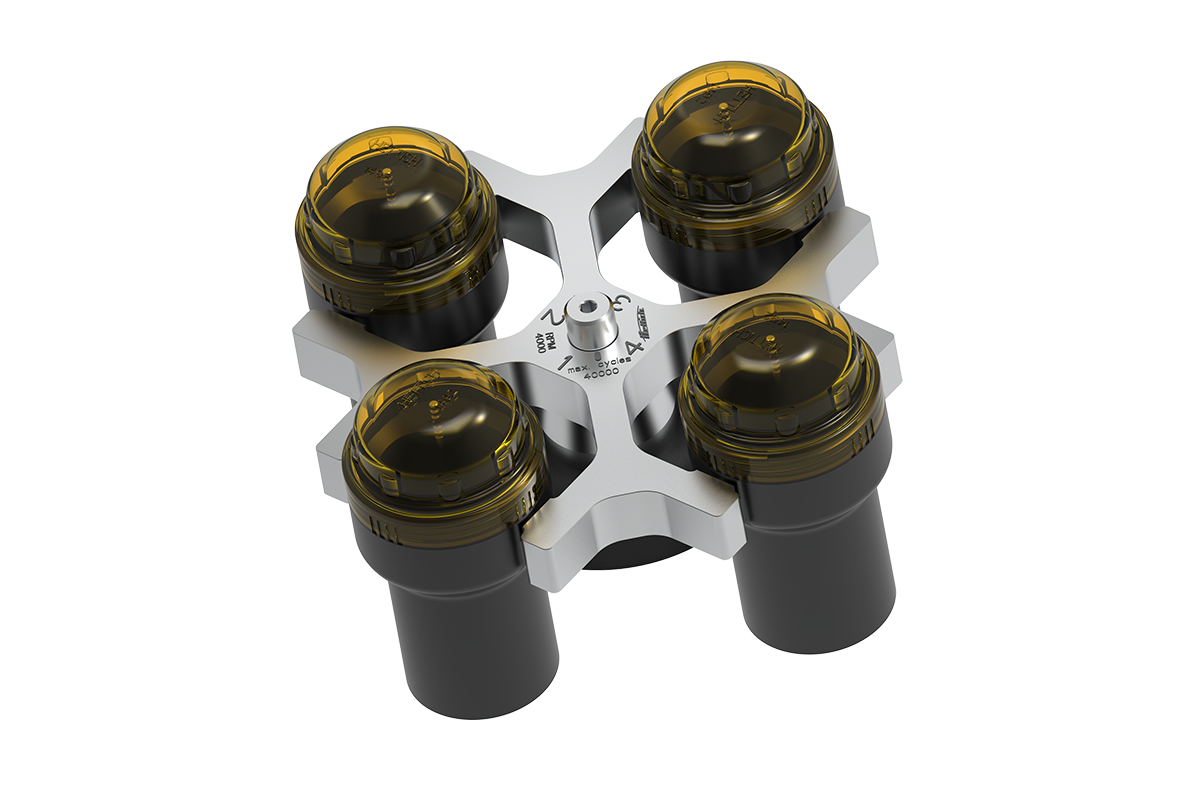

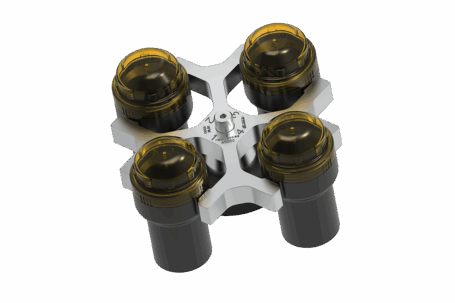

ROTOFIX 32 A
CYTOLOGY BIO-SEAL PACKAGE

The ROTOFIX 32 A Cytology Bio-Seal Package has everything you need to perform your application. The package includes the ROTOFIX 32 A centrifuge with Hetich’s unique bio-seal buckets and adapters for cytology. Many a-la-carte options are also available. Contact us for more details.

QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
1
--
4,000
1,648
4
2
--
4,000
1,648
PACKAGE CONTENTS

(1) Centrifuge, (1) Horiz. Rotor, (4) Cyto Buckets, (4) Slide carriers, (8) One funnel chamber 1mL, (8) One funnel chamber 2mL, (4) Lids

Request More Information

BUCKETS ONLY
CYTOLOGY BIO-SEAL PACKAGE

The ROTOFIX 32 A Cytology Bio-Seal Bucket Package has everything you need to perform your application. The package includes Hetich’s unique bio-seal buckets and adapters for cytology. No centrifuge included, works with the 1624 rotor. Many a-la-carte options are also available. Contact us for more details.

QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
1 – 8
--
4,000
1,648
PACKAGE CONTENTS

(4) Cyto Buckets, (4) Slide carriers, (4) Lids

Request More Information

Supports Over

210Application Configurations
TUBE OPTIONS

microliter up to 5 mL, blood, pediatric, urine, conical and skirted up to 50 mL, standard up to 100 mL, plates, cytology

ROTOFIX 32 A
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Create Your Own Package

Specifications


Hettich ROTOFIX 32 A benchtop centrifuge open
Model
ROTOFIX 32 A
Max. Capacity
4 x 100 ml / 6 x 94 ml
Max. RPM/RCF
6,000/4,226
Temp. Control
Ambient
Dims. (HxWxD) mm
257 x 366 x 430
Dims. (HxWxD) in
10 x 14 x 17
Weight (kg)
23
Weight (lbs.)
51
Power supply
120 V
Warranty
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Cytology
Request More Information

You may also consider...

Hettich UNIVERSAL 320 benchtop centrifuge closed
UNIVERSAL 320

Compact footprint, only 16 in. wide, with or without temperature control. Capable of spinning a variety of standard tubes, plates, cytology clips and bottles (up to 200 ml), the UNIVERSAL 320 centrifuge offers true all-in-one capability.

Learn More
hettich ROTINA 380 Benchtop Centrifuge open
ROTINA 380

The ROTINA 380 requires minimal bench space at a width of only 18 in. Capable of spinning up a wide variety of tubes, the ROTINA 380 vastly outperforms its modest size.

Learn More

BIOZ Citations

Below is a list of citations available for this product.

Please check back regularly as we will add new references as they become available.

Resources

Hettich ROTOFIX 32 A benchtop centrifuge for blood, cell culture, urine, cytology product sheet

ROTOFIX 32 A Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 181.9 kb
Download now
Hettich ROTOFIX 32 A benchtop centrifuge sell sheet

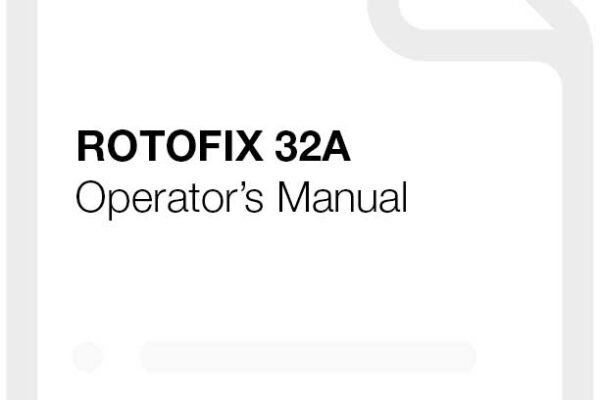

ROTOFIX 32 A Operator’s Manual
