ROTIXA 500 RS

FLOOR-STANDING CENTRIFUGE

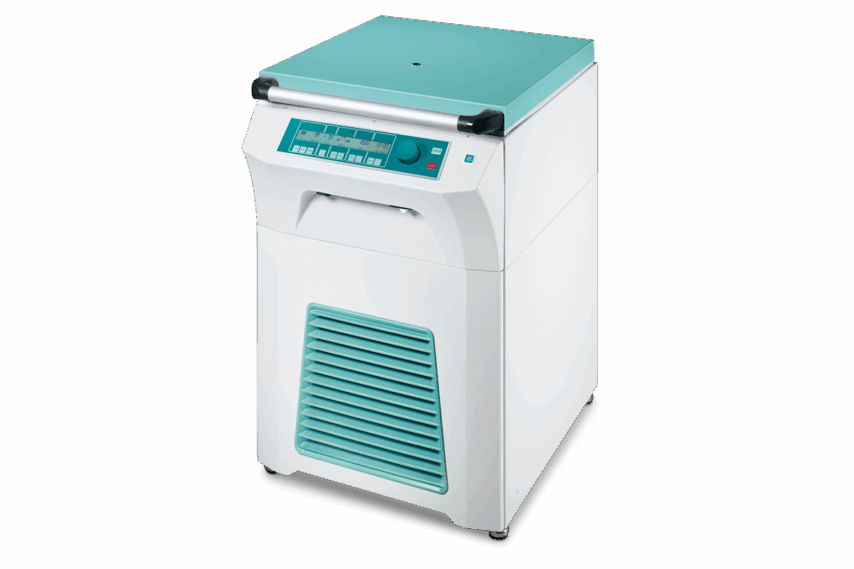

Hettich ROTIXA 500 RS floor standing centrifuge
Max. Capacity
4 x 1,000 mL
Max. RPM/RCF
11,500/18,038
Temperature Control
-20 to +40ºC

BLOOD BAGS / ALL STANDARD TUBES / BOTTLES / RACKS

Uncomplicated, high-volume processing

The ROTIXA 500 RS is a versatile high-volume, whole blood processing centrifuge with the capacity to spin up to (4) 1 L blood bags or 192 blood tubes. Its robust and steady temperature control system protects your samples by maintaining a consistent temperature throughout centrifugation. Supports specialized accessories to optimize blood separation.

icon

Quiet Operation

Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

icon

Easy to lift lid with front-facing control panel for effortless interaction and programming.

lock icon

Enhanced Safety

Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.

5 Yr icon

Five Year Warranty

All Hettich centrifuges are protected by our 5-year warranty and full technical support.

clipboard with checkmark icon

Fully Certified

Engineered and manufactured in accordance with all relevant safety and production standards.

Hettich ROTIXA 500 RS CELL CULTURE PACKAGE

One Highly Capable Rotor

Spin blood tubes, cell culture tubes, blood bags, plates and bottles using the same rotor.

  • Up to 192 blood tubes
  • Up to 92 cell culture tubes
  • (4) blood bags (450 – 1,000 mL)
  • Up to 24 plates
  • (4) bottles (650 – 1,000 mL)
Hettich ROTIXA 500 RS blood bag package

Uncomplicated whole-blood processing

Capable of spinning up to (4) 1,000 mL blood bags, the ROTIXA 500 RS is a compact and versatile high-volume centrifuge ideal for blood processing laboratories.

Blood Processing Accessories

Hettich ROTIXA 500 RS HettLiner Blood bag support system

HettLiner

Blood bag support system eliminates pancaking during centrifugation.

Hettich ROTIXA 500 RS balancing weights

Balancing Weights

Quickly and easily finely balance your rotor prior to centrifugation.

SUPPORTS OVER

0 APPLICATION CONFIGURATIONS
Hettich ROTIXA 500 RS floor standing centrifuge

Shown below are the most common application packages for the ROTIXA 500 RS centrifuge. Custom packages are available, please inquire for details.

ROTIXA 500 RS Application Packages

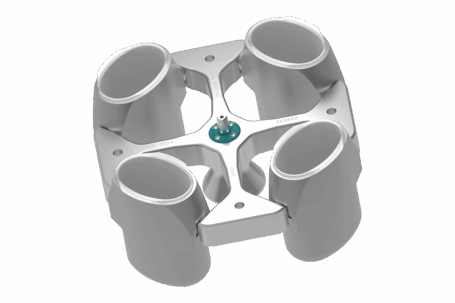

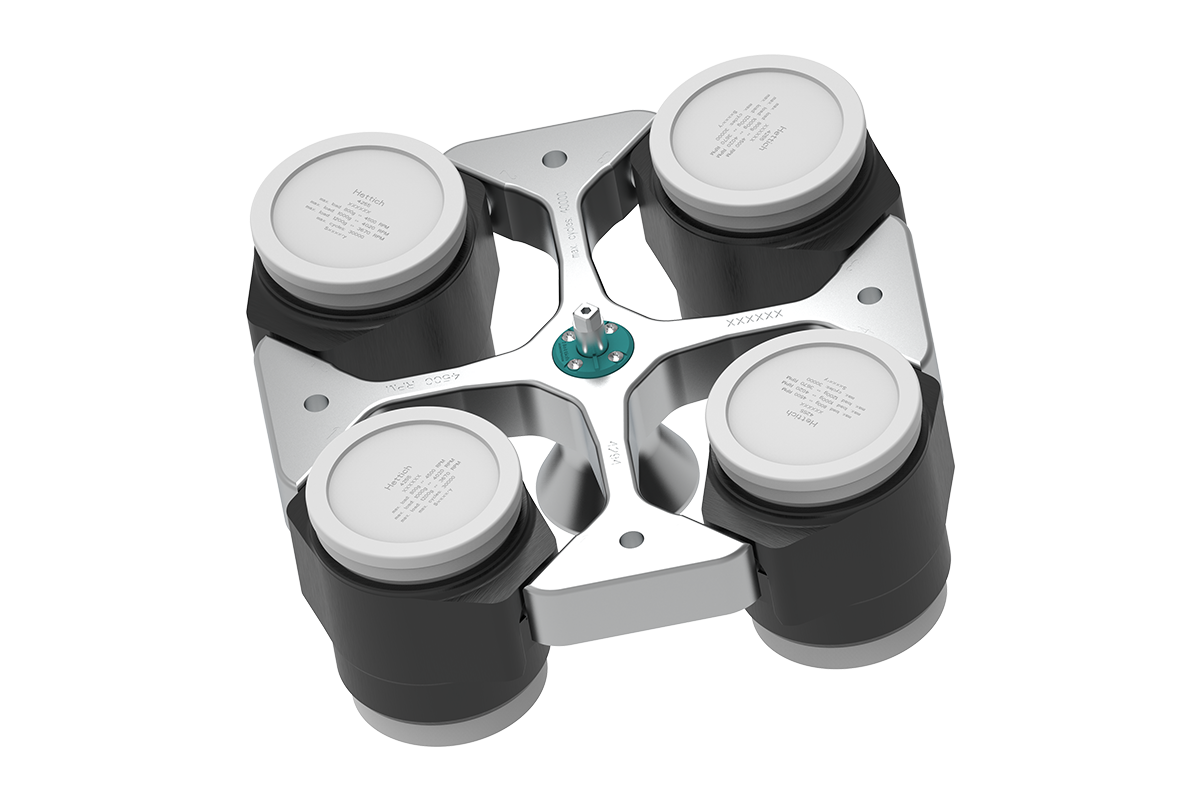

Hettich ROTIXA 500 RS CELL CULTURE PACKAGE

ROTIXA 500 RS
BLOOD TUBE PACKAGE - 4 - BC

The ROTIXA 500 RS Blood Tube Package 4 BC comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
120
1.6 - 7
13 x 75/100
≤ 4,500
≤ 4,777
120
4 - 10
16 x 75/100
≤ 4,500
≤ 4,777
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100, (4) Adapters 16 x 75/100, (4) Bio-containment Lids

Request More Information

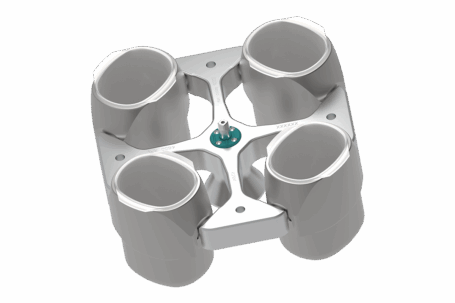

Hettich ROTIXA 500 RS CELL CULTURE PACKAGE

ROTIXA 500 RS
CELL CULTURE PACKAGE - 4 - BC

The ROTIXA 500 RS Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 15 and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
92
15 Conical
17 x 120
≤ 4,500
≤ 4,958
32
50 Conical
29 x 115
≤ 4,500
≤ 4,958
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) 15 mL, (4) Adapters 50 mL, (4) Bio-containment Lids

Request More Information

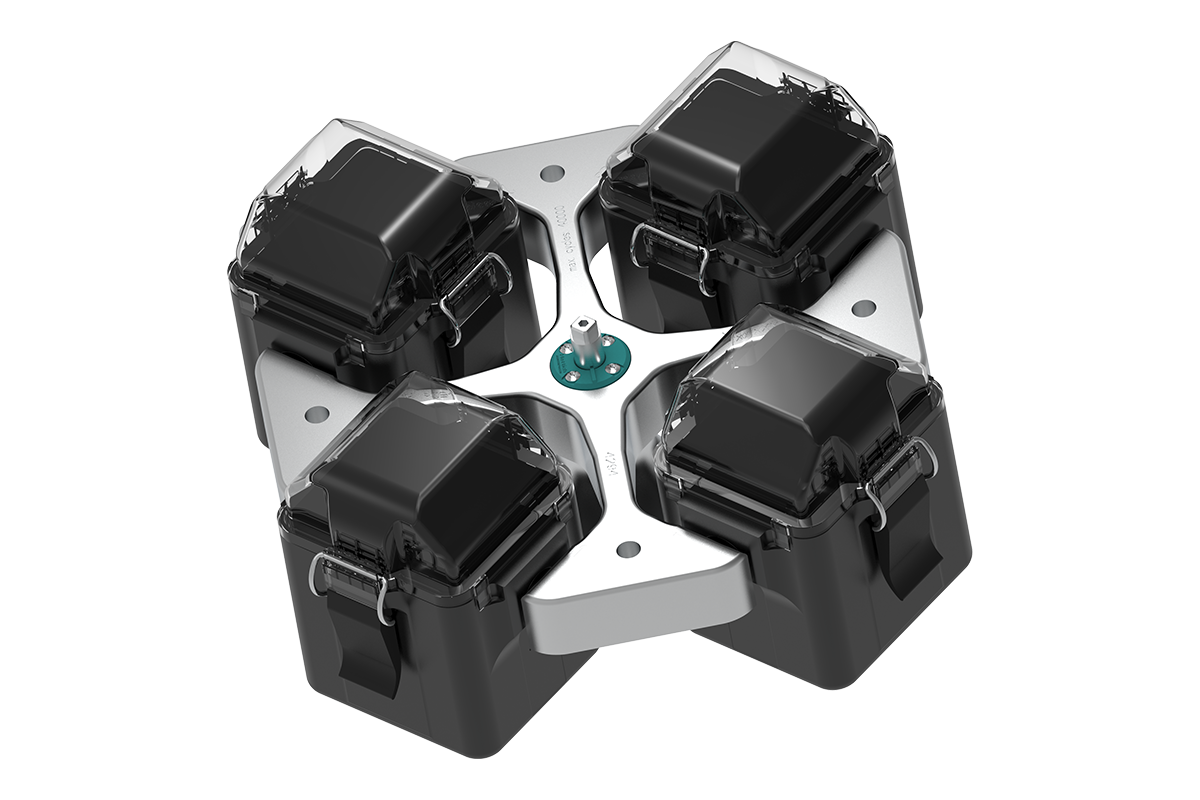

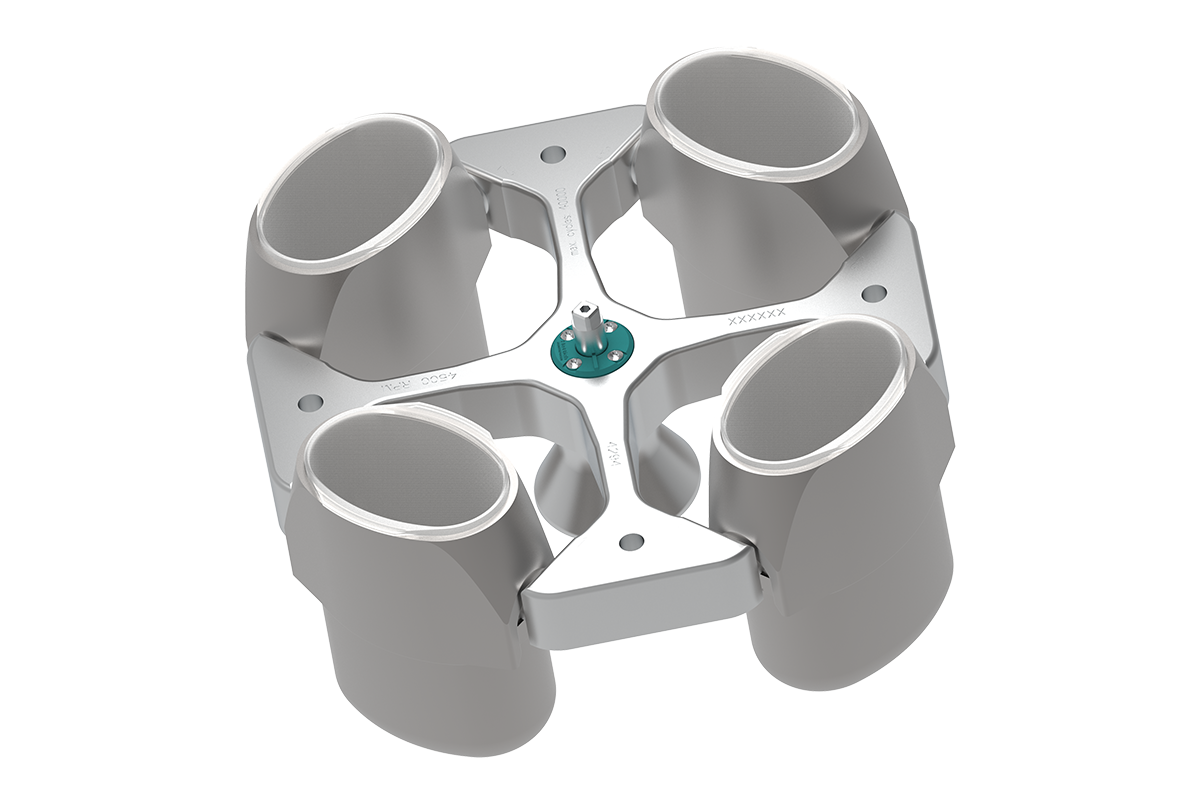

Hettich ROTIXA 500 RS blood bag package

ROTIXA 500 RS
BLOOD BAG PACKAGE - 4

The ROTIXA 500 RS Blood Bag Package 4 comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor, buckets and adapters for 400/500 mL bags. Many a-la-carte options are also available, contact us for more details.

BAG QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
450/500
--
≤ 4,500
≤ 5,252
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 400/500 mL

Request More Information

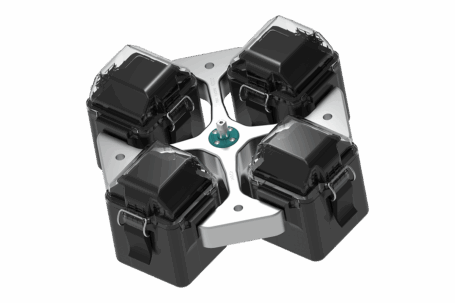

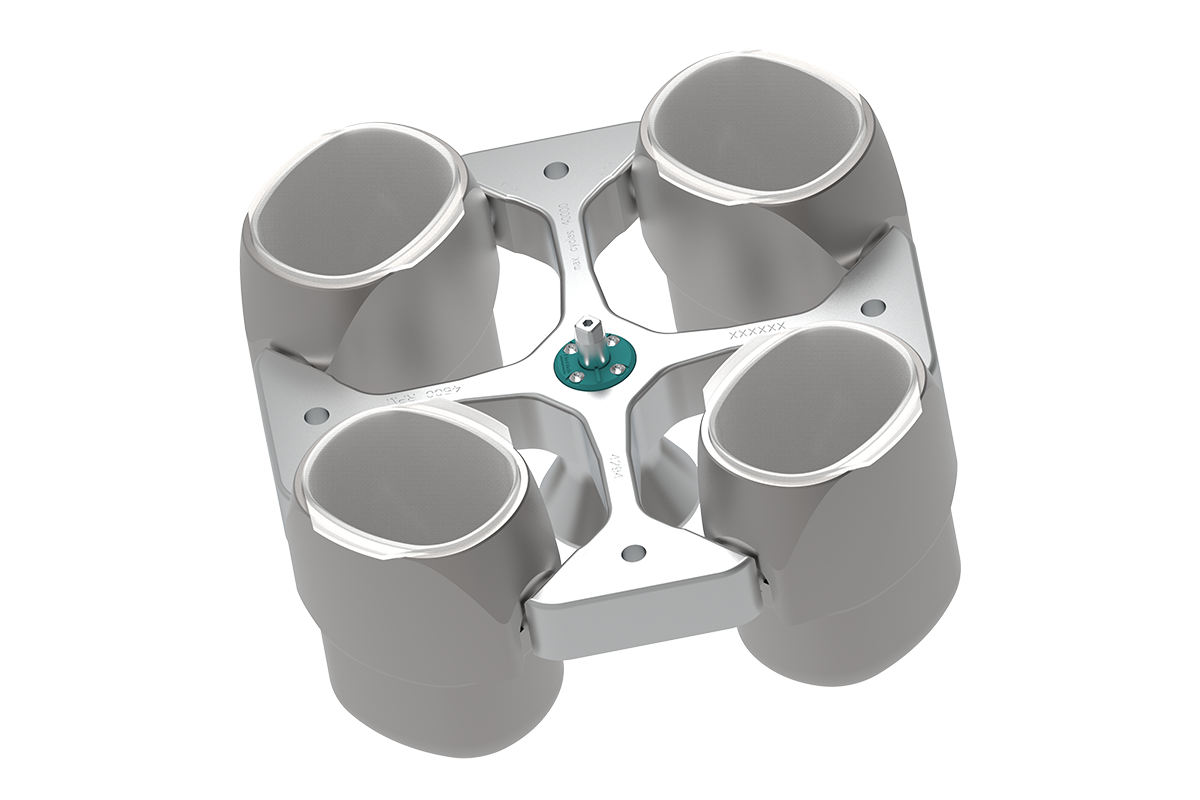

Hettich ROTIXA 500 RS blood package

ROTIXA 500 RS
BLOOD BAG PACKAGE - 4 - HC

The ROTIXA 500 RS Blood Bag Package 4 HC comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor, buckets, and adapters for 750/1,000 mL bags. Many a-la-carte options are also available, contact us for more details.

BAG QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
750/1,000
--
≤ 4,500
≤ 5,003
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 750/1,000 mL

Request More Information

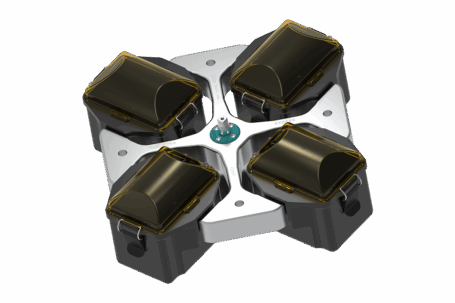

Hettich ROTIXA 500 RS PLATE PACKAGE - 4 - BC

ROTIXA 500 RS
PLATE PACKAGE - 4 - BC

The ROTIXA 500 RS Plate Package BC comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor, buckets, adapters and bio-containment lids. Many a-la-carte options are also available, contact us for more details.

PLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
24
SBS Plates
86 x 128 x 17.5
≤ 4,500
≤ 4,573
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters

Request More Information

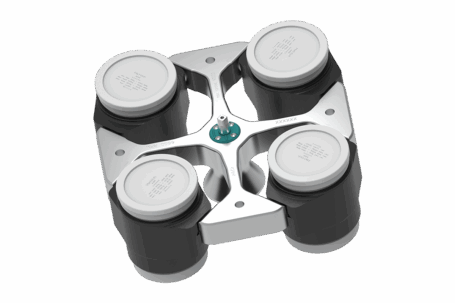

Hettich ROTIXA 500 RS BOTTLE PACKAGE - 4

ROTIXA 500 RS
BOTTLE PACKAGE - 4

The ROTIXA 500 RS Bottle Package 4 comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.

BOTTLE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
650 - 1,000
--
≤ 4,500
≤ 5,184
PACKAGE CONTENTS

(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets

Request More Information

Supports Over

205Application Configurations
TUBE OPTIONS

blood, pediatric, blood bags, urine, conical, skirted, round, plates, bottles, flasks, specialty, ASTM, Schlenk, Babcock, racks

ROTIXA 500 RS
CUSTOM Package

Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.

Inquire for more info

Specifications


Hettich ROTIXA 500 RS floor standing centrifuge
Model
ROTIXA 500 RS
Max. Capacity
4 x 1,000 ml
Max. RPM/RCF
11,500/18,038
Temp. Control
-20 to +40°C
Dims. (HxWxD) mm
973 x 650 x 814
Dims. (HxWxD) in
38 x 26 x 32
Weight (kg)
219
Weight (lbs)
483
Power Supply
208 V
Warranty
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Blood bags, Racks
Request More Information

You may also consider...

Hettich ROTANTA 460 RF floor standing centrifuge
ROTANTA 460 RF

Floor model, refrigerated centrifuge offering high-capacity while saving bench space. Also accommodates small pediatric blood bags.

Learn More

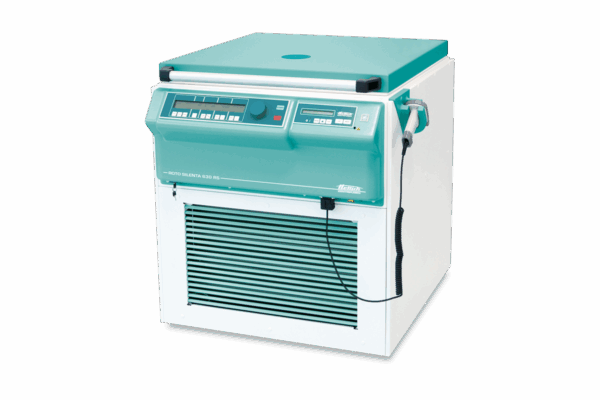

Hettich ROTO SILENTA 630 RS floor standing centrifuge
