Mycobacteria Differentiation

Incubator Application

HettCube Incubator Application

Use of HettCube incubators and cooled incubators to demonstrate the presence of mycobacteria and for their differentiation

Tuberculosis, which once claimed the lives of many people, was believed to be a disease that had been virtually eradicated. However, the poor conditions under which many people live, increased frequency of travel to distant countries and immigration from crisis zones mean that this disease is once again on the increase. it is, therefore, necessary to culture the mycobacteria responsible and differentiate between them.


The specimens are first homogenized, decontaminated and concentrated through centrifugation.* They are then cultured on three different types of media. a higher Co2 level (5-7%) is recommended. Mycobacteria grow slowly, and this is the reason for the long incubation period of up to eight weeks.

Differentiation of the mycobacteria

The first indication of a tuberculosis diagnosis is the presence of acid-fast rods upon staining with Ziehl-Neelsen stain. M. tuberculosis differs from most other mycobacterial strains through its characteristic eugonic growth (dry, crumbly). in addition, it is possible to differentiate between the different mycobacterial strains through the presence of metabolic products. in the niacin test agar slants containing löwenstein-Jensen medium are inoculated and an extract derived from the cultured bacteria. The tubes must be inclined to enable the extract to be derived. The Hettich RackL and RackXL are optimal for this***. The addition of chemicals causes a change in color which demonstrates the presence of niacin, indicative of M. tuberculosis.

Sensitivity to chemotherapeutics

The sensitivity of mycobacteria to different chemotherapeutics can also be used for differentiation purposes. The inoculated agar slants are covered with the chemotherapeutic agent and the growth or absence of growth of the colonies is recorded. Since the surface of the agar must be fully covered, the Hettich racks are also recommended here.

Incubation conditions**

*For example with the universal 320 R with 1494 rotor, 1427 carrier and 5272 adapter
** observe the instructions of the manufacturer!
***Comprehensive information on the use of Hettich racks for agar slants is available upon request

Hettich products are designed to help you achieve optimal results for your application and are built to perform to the specifications outlined in the operators manual. For application-specific information and settings, please refer to your organization’s standard operating procedure. As always, our Hettich representatives are here to help determine which Hettich products and accessories best fit your laboratory requirements.

HettCube Incubators

Hettich Hettcube incubators and cooled incubators are built to maximize their compact footprint with efficient design features that improve temperature uniformity, operational performance, and user interaction.

HettCube series of incubators

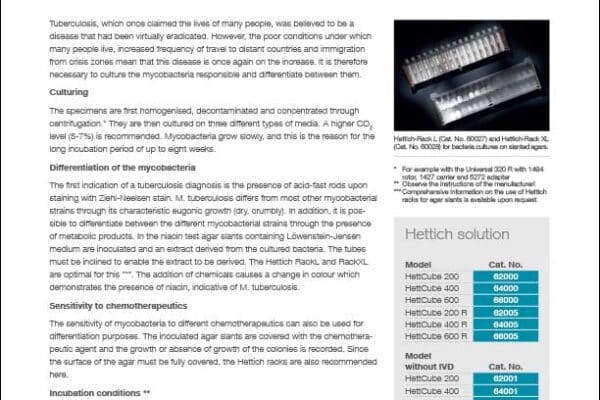

Mycobacteria Differentiation Application Note

This application note provides information on specific application methods and the use of Hettich products. (more…) read more...

File type: PDF
File size: 206.6 kb
Download now
Hettich HettCube incubators product sheet

HettCube Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 263.0 kb
Download now

Want to know more?

Hettich HettCube incubators offer many advantages for an efficient workflow.
