Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock)

Warranty

3-year warranty

Internals

2 stainless steel grid(s), electropolished

Calibration Certificate

Works calibration certificate, calibration at +80°C

Specifications

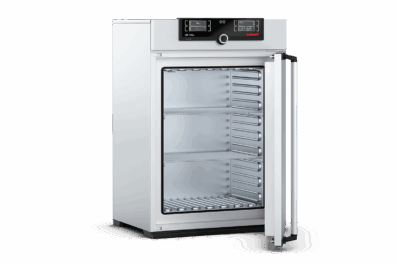

Memmert UN160PA
Model
Memmert UN160PA
Internal volume (cuft)
6
Temp. range
UN: +5 above ambient to +80 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
0.1 °C
Control Panel
TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Function HeatBALANCE
Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Convection/Fan
(UN) Natural Convection
Programming
AtmoCONTROL software on a USB stick fro programming, managing and transferring programmes via Ethernet interface or USB port.
Temp. Control
Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Visual and acoustic
Humidity rh
Max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides. Nearly gas-tight interior.
Interior Dims (WxHxD) in.
22 x 28.25 x 15.75
Exterior dims (WxHxD) in.
29.25 x 43.5 x 23 (d +2.25 in. door handle)
Weight (lbs.)
212
Power
115 V, 50/60 Hz, approx. 1800 W
Warranty
3 years
Request More Info on the Memmert UN160PA

You may also consider...

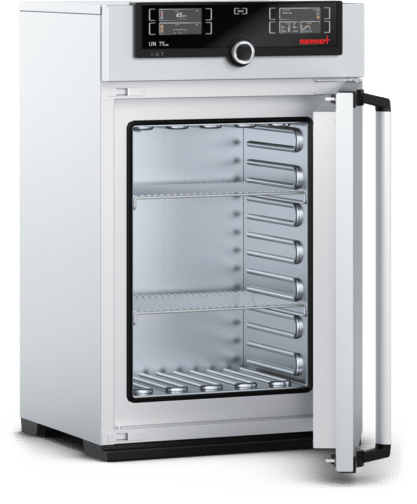

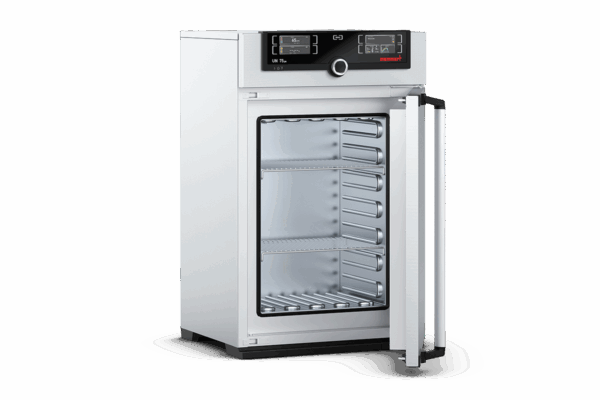

Memmert UN75PA door open
Memmert UN75PA

A natural convection, (UN75PA), 3 cu.ft. Paraffin oven made of high-quality, hygienic, easy-to-clean stainless steel with best-in-class ventilation and control technology, overtemperature protection, and precisely tuned heating technology.

Learn More
Memmert UN110PA
Memmert UN110PA

A natural convection, (UN110PA), 4 cu.ft. Paraffin oven made of high-quality, hygienic, easy-to-clean stainless steel with best-in-class ventilation and control technology, overtemperature protection, and precisely tuned heating technology.

Learn More

Resources

Below are resources to help you get familiar with Memmert Ovens.

Memmert Ovens/Sterilizers Product Sheet

This product sheet provides a detailed overview of the product features, benefits, and models. (more…) read more...

File type: PDF
File size: 727.9 kb
Download now

Resource Library

Please find all articles, videos, downloads, and more in the Resource Library.

Need Help Choosing an Oven?

To help you choose the right oven for your lab, we created a quick laboratory oven guide to help narrow your choice.

Request Information

Fill out the form below for specific product support, questions or comments and we will get back to you as soon as possible.

Posted Feb 15

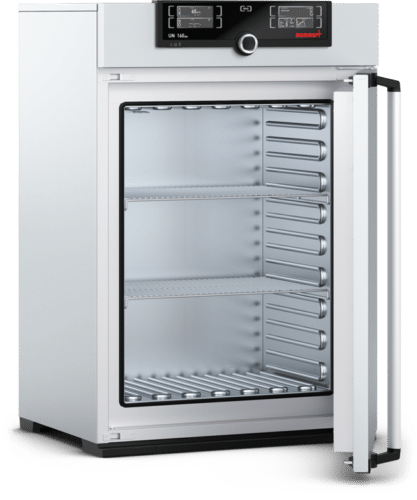

Memmert UN160PA
Posted Feb 15
Memmert UN110PA
Posted Feb 14
Memmert UN75PA door open
Posted Feb 14

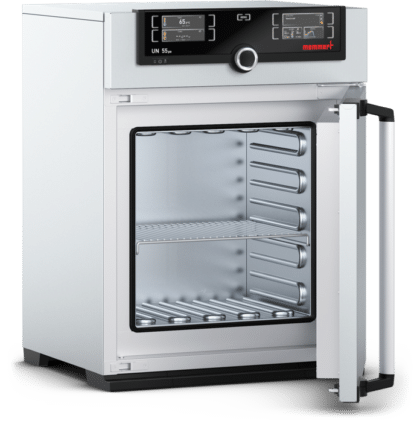

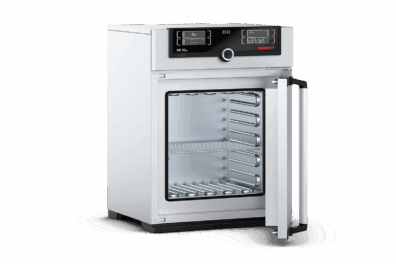

Memmert UN55PA
Posted Feb 14

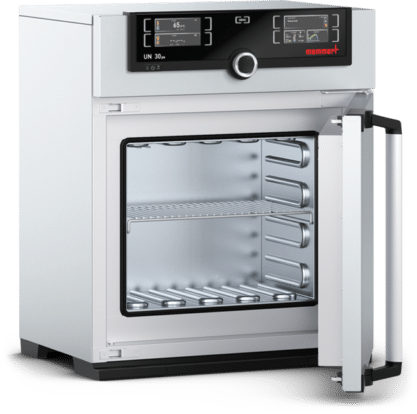

Memmert UN30PA
