Rotor 1554

UNIVERSAL 320 CENTRIFUGE

Accessories

Rotor Type Swing-out, 4-place
Max. Capacity 4 x 200 mL
Max. RPM 4,500
Back to UNIVERSAL 320 Accessories

Rotor Configurations

The Hettich Rotor 1554 is compatible with the UNIVERSAL 320/320R benchtop centrifuge. The 4-place, swing-out rotor is ideal for tubes and bottles up to 200 mL with a BioSeal lid. Please inquire about specific tube and adapter combinations and the corresponding RCF values. RCF values may differ for centrifuges with refrigeration. Not every rotor configuration is pictured; ask for more details.

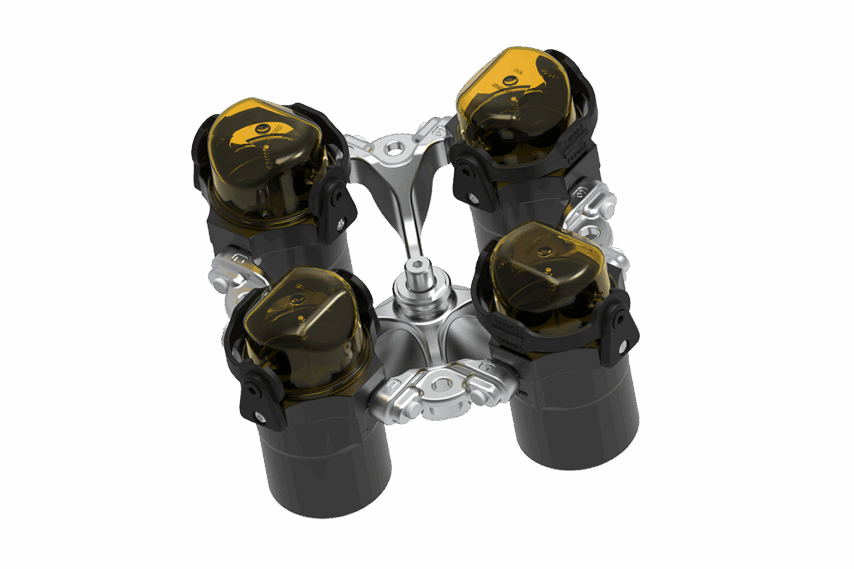

Bucket 1560, BioSeal Lid 1561 Rotor 1554

Best for round-bottom, conical, skirted tubes, and bottles up to 200 mL. VersaLock and BioSeal lids. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 200 mL
Max. RPM/RCF:
4,500/3,328

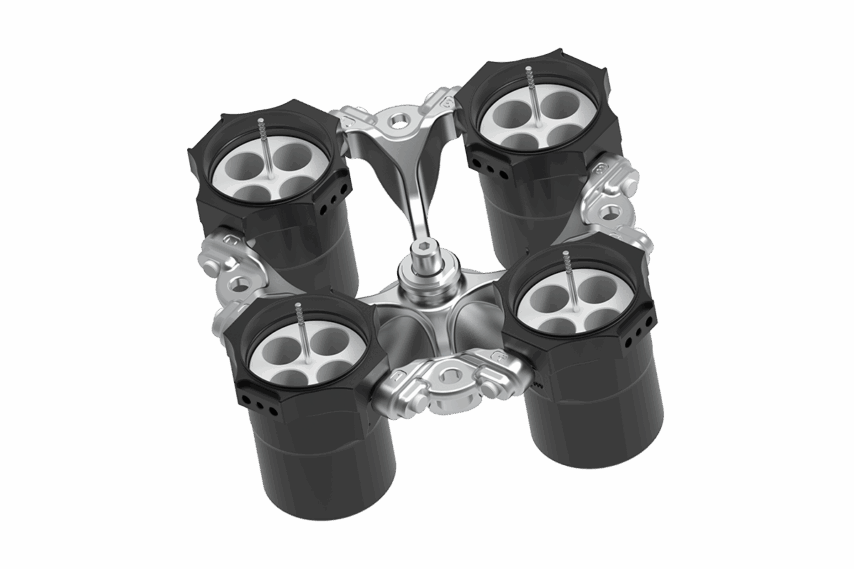

Bucket 1565, Adapter 1572 Rotor 1554

Best for round-bottom, conical, skirted tubes, and bottles up to 200 mL without bio-containment. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 200 mL
Max. RPM/RCF:
4,500/3,328

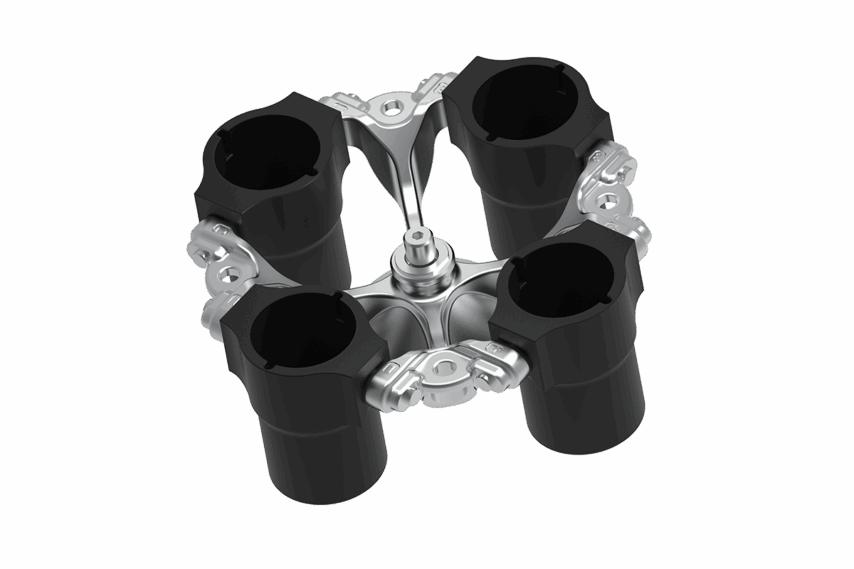

Bucket 1559 Rotor 1554

Best for round-bottom and conical tubes up to 50 mL without bio-containment. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 50 mL
Max. RPM/RCF:
4,500/3,328

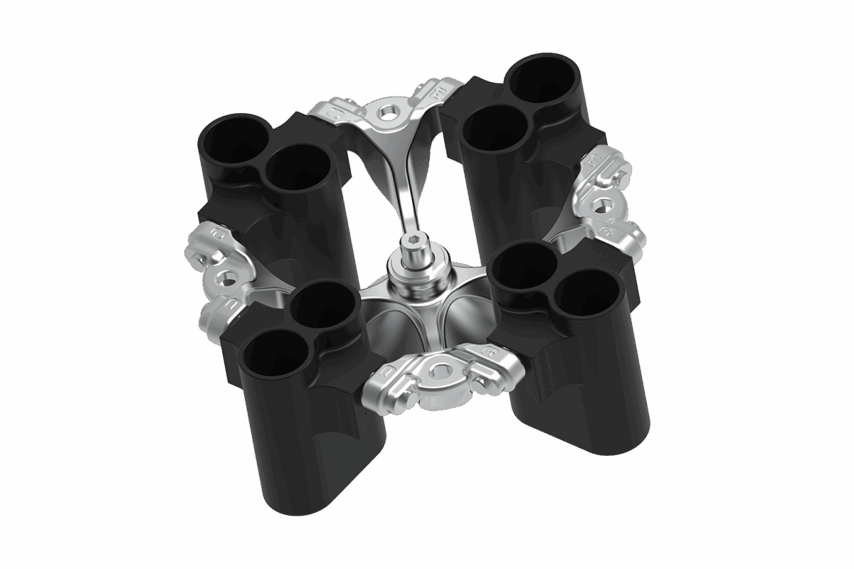

Bucket 1563 Rotor 1554

Best for 15 and 50 mL conical tubes without bio-containment. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
8 x 50 mL
Max. RPM/RCF:
4,500/3,260
