Quiet Operation
Our centrifuges are as quiet as a normal conversation and will not increase noise levels within your lab.

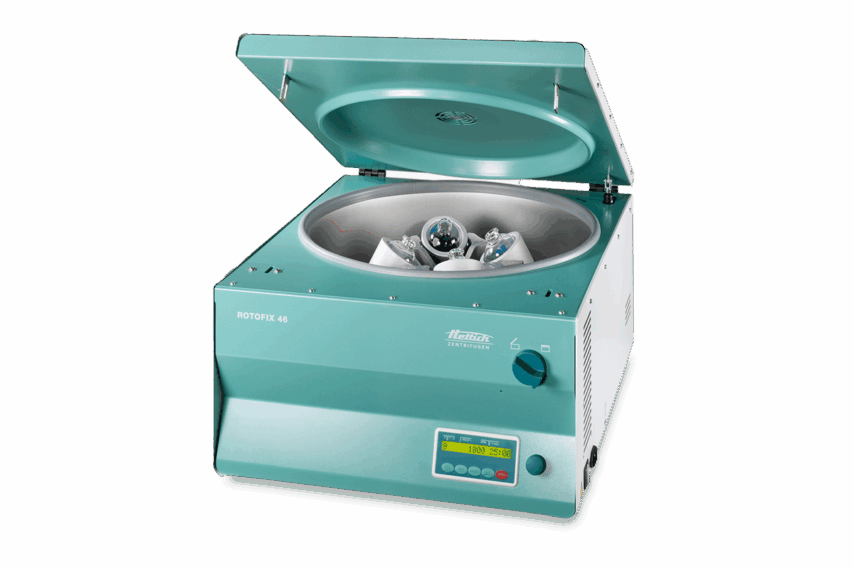

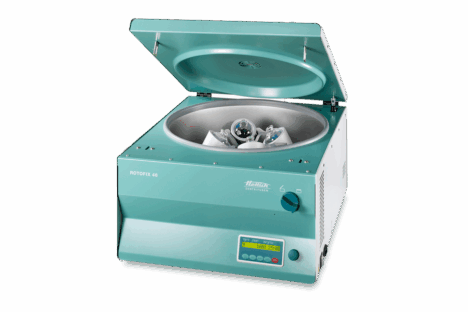

ROTOFIX 46 H
HEATED BENCHTOP CENTRIFUGE
INDUSTRIAL / ENVIRONMENTAL
Max. Capacity 4 x 100 ml
Max. RPM/RCF 2,000/984
Temperature Control +10 to +90 °C
Industrial heated centrifuge for specialty applications
The ROTOFIX 46 H is a robust, versatile benchtop centrifuge ideal for research, industrial, chemical, and environmental testing laboratories. Applications include petrochemical and fuel, industrial fluids, and wastewater. It is available with a swing-out rotor for a maximum capacity of 4 x 100 mL and buckets for ASTM (pear-shaped) and Babcock tubes. With an adjustable maximum speed of 2,000 RPM, a maximum RCF of 984, and a low noise level of ≤ 58 dB(A), it features an impulse button for short centrifugation, easy keypad operation, and an heating range from +10 to +90 °C. Made in Germany for lasting quality, shipped and supported in North America, and backed by a five-year warranty, the ROTOFIX 46H delivers reliable performance.
Functional Design
Easy to lift lid with front-facing control panel for effortless interaction and programming.
Enhanced Safety
Hettich Safety-Lock ensures a safe, tight closure of the all metal centrifuge chamber during operation.
Five Year Warranty
Quality you can trust. All Hettich centrifuges come with a limited 5-year warranty for worry-free ownership.
Fully Certified
Engineered and manufactured in accordance with all relevant safety and production standards.
5 ASTM Application Packages
The ROTOFIX 46 offers 5 different ASTM packages ensuring that you will find the right one for your application.
ROTOFIX 46 H Application Packages
ROTOFIX 46 H
ASTM PACKAGE - 50
The ROTOFIX 46H ASTM Package 50 comes complete with everything you need to perform your application. This includes the ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 50 mL tubes. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
50
45 x 130
≤ 2,000
≤ 984
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 50 mL
Request more information
ROTOFIX 46 H
ASTM PACKAGE - 100A
The ROTOFIX 46H ASTM Package 100A comes complete with everything you need to perform your application. This includes the ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
58 x 161
≤ 2,000
≤ 984
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
Request more information
ROTOFIX 46 H
ASTM PACKAGE - 100B
The ROTOFIX 46H ASTM Package 100B comes complete with everything you need to perform your application. This includes the ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
44 x 168
≤ 2,000
≤ 961
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
Request more information
ROTOFIX 46 H
ASTM PACKAGE - 100C
The ROTOFIX 46H ASTM Package 100C comes complete with everything you need to perform your application. This includes the ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
37 x 200
≤ 2,000
≤ 961
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
Request more information
ROTOFIX 46 H
ASTM PACKAGE - 100D
The ROTOFIX 46H ASTM Package 100D comes complete with everything you need to perform your application. This includes the ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
100
45 x 165
≤ 2,000
≤ 961
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
Request more information
ROTOFIX 46 H
BABCOCK Package
The ROTOFIX 46H Babcock Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 H centrifuge, swing-out rotor, buckets, adapters and inserts. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
--
165 (height)
≤ 934
≤ 215
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Inserts
Request more information
Rotors and Accessories
The ROTOFIX 46H is a robust heated centrifuge that for ASTM and Babcock tubes. Learn about the accessories and configurations available to improve your workflow.
View accessoriesSpecifications
ROTOFIX 46 H
Max. Capacity
4 x 100 ml
Max. RPM/RCF
2,000/984
Temp. Control
+10 to +90°C
Dims. (HxWxD) mm
345 x 538 x 647
Dims. (HxWxD) in
14 x 21 x 25
Weight (kg)
60
Weight (lbs.)
132
Power supply
200-240 V
Warranty
5-years
Rotor Type(s)
Swing-out
Specifications
Resources

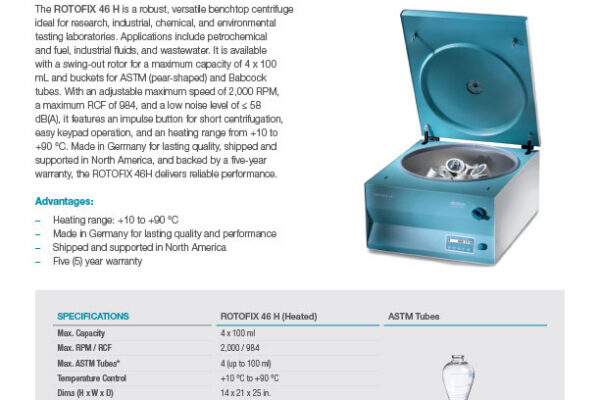

ROTOFIX 46 H Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. Read More
File type: PDF
File size: 419.3 kb
Download
File size: 419.3 kb

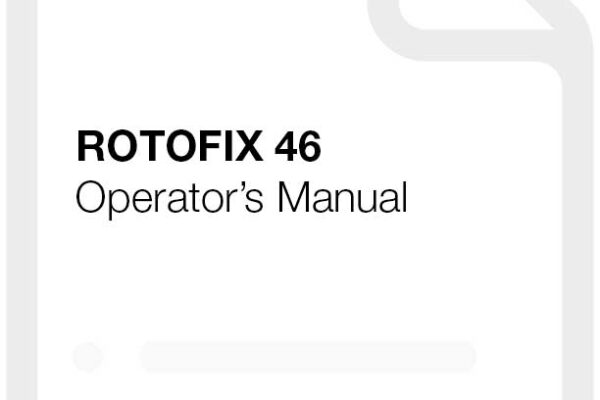

ROTOFIX 46 | H Operator’s Manual
Operator’s manual for model(s) ROTOFIX 46 and ROTOFIX 46 H. When using Hettich equipment, please refer to your products operators manual for important safety and product-use instructions. Read More
File type: PDF
File size: 3.2 mb
Download
File size: 3.2 mb
Benchtop Centrifuges Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. Read More
File type: PDF
File size: 182.4 kb
Download
File size: 182.4 kb
Hettich | N Plus Control Panel | Programming
The Hettich N Plus control panel is featured on the Hettich MIKRO 200, MIKRO 220, UNIVERSAL 320, ROTOFIX 46, benchtop centrifuges. In this video learn how to view and program the centrifuge parameters. Read More
File type: Video
Resource Library
Find all ROTFIX 46 H resources in the Resource Library.
