Rotor 5699-R

ROTANTA 460 CENTRIFUGE

Accessories

Rotor Type Swing-out, 4-place
Max. Capacity 4 x 750 mL
Max. RPM 4,600 min-1
Back to ROTANTA 460 Accessories

Rotor Configurations

The Hettich Rotor 5569-R is compatible with the ROTANTA 460 benchtop and floor model centrifuges. The 4-place, swing-out rotor is ideal for tubes, bottles, plates, and flasks with a capacity of up to 750 mL. Please inquire about specific tube and adapter combinations and the corresponding RCF values. RCF values may differ for centrifuges with refrigeration. Bio-containment lids may not be compatible with all tube types. Not every rotor configuration is pictured; inquire for more details.

Bucket 4880, BioSeal Lid 4883 Rotor 5699-R

Best for microliter, round-bottom, conical, skirted tubes, bottles up to 750 mL and rectangular bottles up to 200 mL. VersaLock buckets with BioSeal Lid. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 750 mL
Max. RPM/RCF:
4,600/4,779

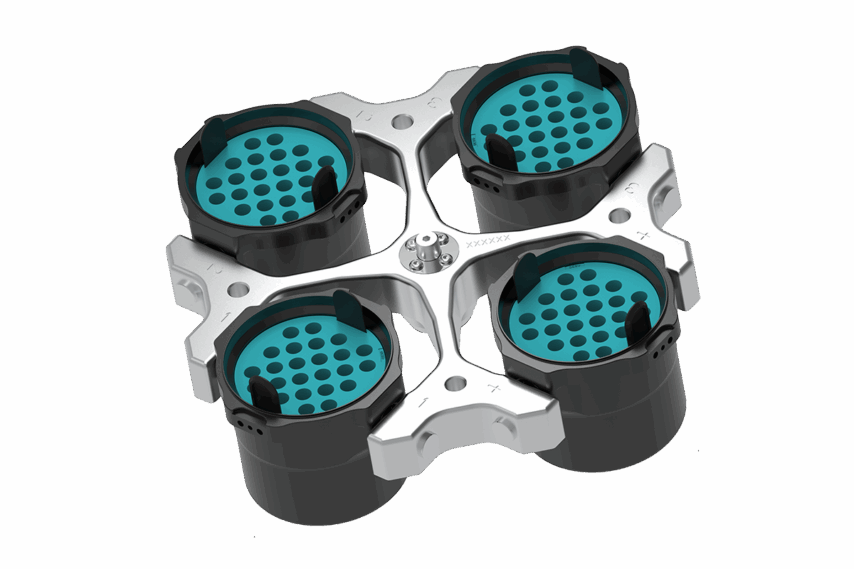

Bucket 4885, BioSeal Lid 4830 Rotor 5699-R

Best for microliter, round-bottom, conical, skirted tubes, bottles up to 750 mL and rectangular bottles up to 200 mL. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 750 mL
Max. RPM/RCF:
4,600/4,779

Bucket 5625-A, BioSeal Lid 5627 Rotor 5699-R

Best for microliter, round-bottom, conical, and skirted tubes up to 250 mL. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 250 mL
Max. RPM/RCF:
4,600/5,063

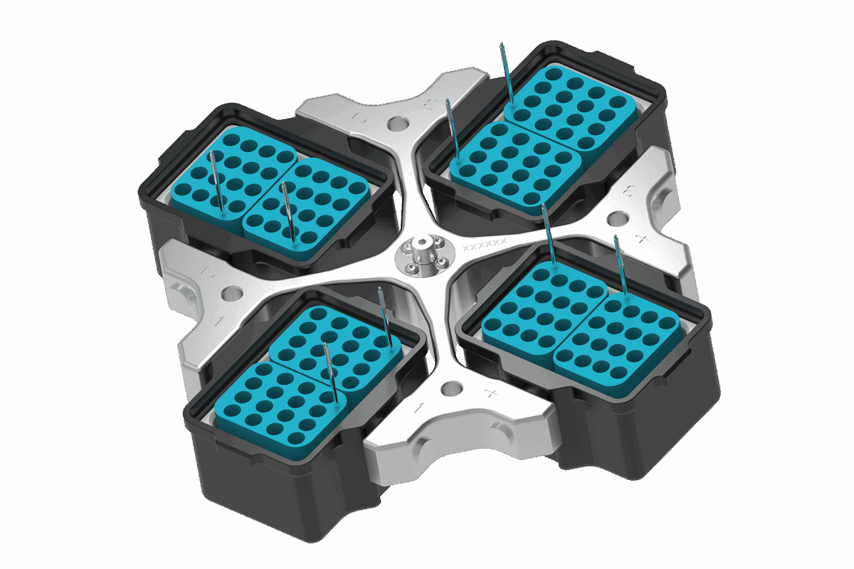

Bucket 5628, Adapter 5220-A Rotor 5699-R

Best for microliter, round-bottom, conical, and skirted tubes up to 250 mL. Cyto-System available. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 250 mL
Max. RPM/RCF:
4,600/4,258

Bucket 5628, BioSeal Lid 5629 Rotor 5699-R

Best for plates and PCR strips. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
24 plates
Max. RPM/RCF:
4,600/4,211

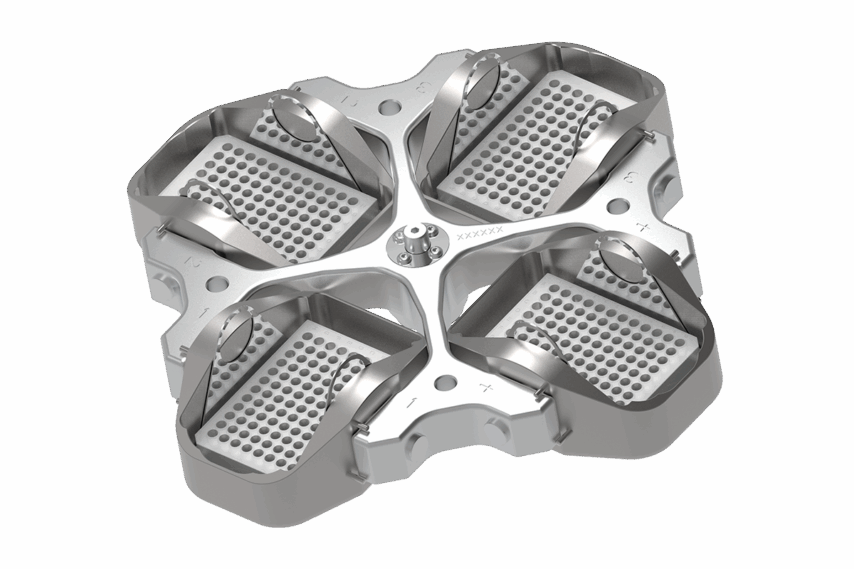

Bucket 5630-B, Adapter 4626 Rotor 5699-R

Best for plates and PCR strips. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
24 plates
Max. RPM/RCF:
4,600/3,832

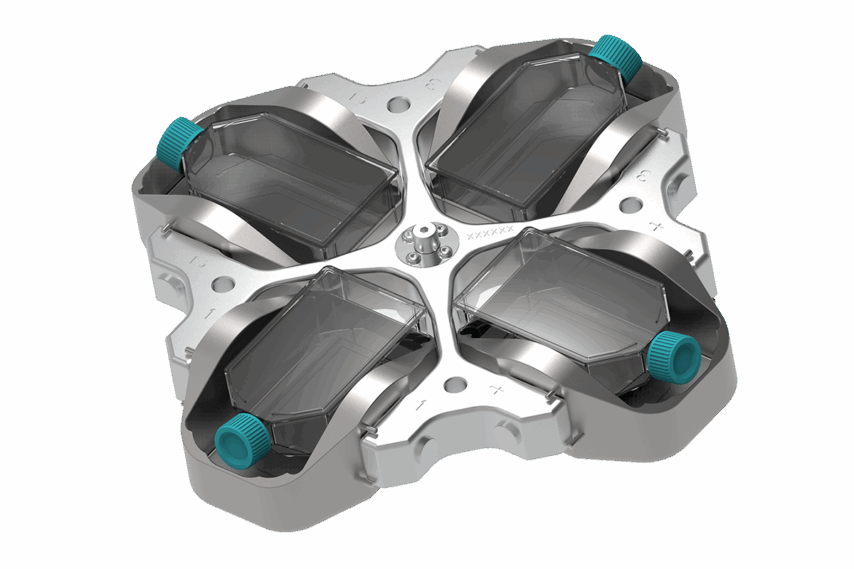

Bucket 5630-B, Adapter 5671 Rotor 5699-R

Best for flasks up to 250/260 mL. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 250 mL
Max. RPM/RCF:
4,600/3,785

Bucket 5636 Rotor 5699-R

Best for TaqMan Array cards. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
12 Arrays
Max RPM/RCF:
4,600/4,921

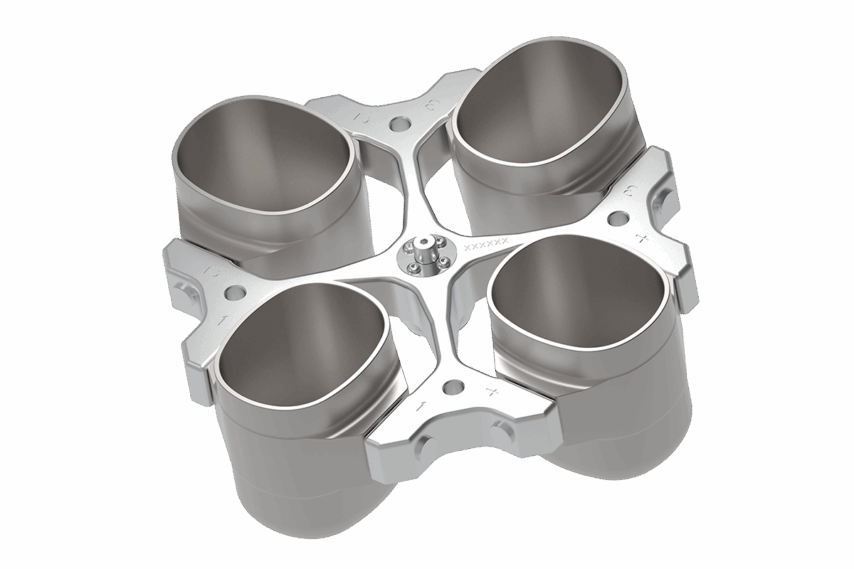

Bucket 5691-A Rotor 5699-R

Best for pediatric blood bags up to 450 mL. Inquire about tube adapters and RCF value for a specific tube type.

Rotor Type:
4-place, Swing-out
Max. Capacity:
4 x 450 mL
Max. RPM/RCF:
4,600/4,637
