HettCube Incubator Series

On this page, you will find a detailed list of specifications unique to the HettCube 200 incubator. The HettCube series of incubators and cooled incubators share a robust set of features and benefits standard to all models in the series.

HettCube series of incubators

See the complete list of features and learn more about the HettCube series.

Hettich HettCube 200 incubator on rolling cabinet

Rolling Cabinet

Cabinet available for HettCube 200 and HettCube 200 R models.

View HettCube Accessories
Hettich HettCube Controllable, 4-way external socket

Switchboard

Controllable, 4-way external socket.

View HettCube Accessories
rails on Hettich tray system incubators

Hettich Tray System (HTS)

The Hettich Tray System, which fits in all three incubator sizes, allows the internal space of the HettCube to be used optimally.

View HettCube Accessories
Hettich tubes in incubator

Loewenstein shelf

Stainless steel shelf with 81 piece capacity.

View HettCube Accessories
Hettich HettCube Petri Rack accessory

Petridish rack

Hold up to 180 dishes per shelf

View HettCube Accessories
Hettich HettCube Rack accessory

Large and XL racks

Convenient racks with angle adjustment

View HettCube Accessories

Standard Equipment

HettCube models come complete with an extensive list of standard equipment.

4.3 inch Touchscreen

Our intuitive touchscreen offers many features providing optimal flexibility and user control.

Dual control panel and door lock

USB service interface

Stainless steel interior (W-St. 1.4301) (ASTM 304)

Ø 42 mm bushing on rear panel

Potential-free alarm output

Compensation for unneeded standard shelves - please inquire

1 standard stainless steel shelf and 1 HTS

HettCert factory certificate

9-point temperature validation according to DIN 12880: 2007-05

Specifications

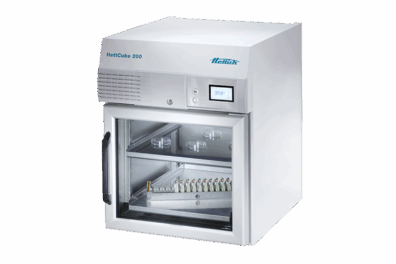

Hettich HettCube 200 incubator with glass door
Model
HettCube 200 | R
Temp. range: incubators | cooled incubators
1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
Internal Volume (L)
150
Internal Volume (cuft)
5.2
Validated usable volume (L)
82
Validated usable volume / internal volume
54%
Temp. fluctuation at +37 °C
± 0.1 K
Temp. uniformity at +37 °C
± 0.2 K
Temp. uniformity at +25 °C
± 0.1 K
Recovery time door opened for 30 s at +37 °C
≤ 3 min
Exterior dims. (WxDxH) mm
710 x 825 x 970
Exterior dims. (WxDxH) in
28 x 32.5 x 38.25
Interior dims. (WxDxH) mm
535 x 690 x 420
Interior dims. (WxDxH) in
21 x 27.25 x 16.5
Footprint (m²)
0.6
Footprint (cuft)
16.4
Trays provided as standard
2 (1 standard + 1 HTS)
Noise level dB(A)
≤42 | ≤44
Weight (lbs)
213 | 238
Weight (kg)
97 | 108
Power Supply
120 V
Energy consumption at +37 °C
0.04 kWh
Warranty
2 years
Download Brochure

Other HettCube Models

Hettich HettCube 200 R incubator

HettCube 400 | R

More About the HettCube 400
Hettich HettCube 200 R incubator

HettCube 600 | R

More About the HettCube 600

BIOZ Citations

Below is a list of citations available for this product.
Please check back regularly as we will add new references as they become available.

HettCube Resources

Below are resources to help you get familiar with HettCube line of incubators.

Hettich HettCube incubators product sheet

HettCube 200 | R Product Sheet

This product sheets provides a comprehensive overview of the unique product features specific to the model. (more…) read more...

File type: PDF
File size: 263.0 kb
Download now
Hettich HettCube operator's manual

HettCube Operator’s Manual

HettCube operator's manual for models 200 | R, 400 | R, 600 | R. When using Hettich equipment, please refer to your products operators manual for important safety and product-use instructions. read more...

File type: PDF
File size: 21.8 mb
Download now
Hettich HettCube incubator

HettCube Brochure

This brochure provides a detailed overview of the product features, benefits and components. (more…) read more...

File type: PDF
File size: 1.4 mb
Download now

About Hettich HettCube Incubators | Animated Video

About Hettich HettCube Incubators | Animated Video Learn why HettCube is the new benchmark in standard and cooled incubators. HettCube incubators make efficient use of valuable space by providing up to 30% more validated useable space for cultures than incubators with similar capacity. Incubators without cooling operate at just 1°C read more...

Resource Library

Please find all articles, videos, downloads, and more in the Resource Library.

Need Help Choosing an Incubator?

To help you choose the right incubator for your lab, we created a quick laboratory incubator guide to help narrow your choice.
