HettCube Incubator Series

On this page, you will find a detailed list of specifications unique to the HettCube 600 incubator. The HettCube series of incubators and cooled incubators share a robust set of features and benefits standard to all models in the series.

HettCube series of incubators

See the complete list of features and learn more about the HettCube series.

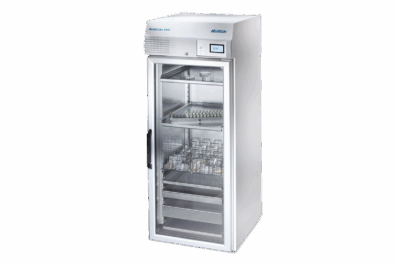

Hettich HettCube 600 R incubator

Glass door

Optional glass door allows for easy visual inspection of your cultures.

View HettCube Accessories
Hettich HettCube Controllable, 4-way external socket

Switchboard

Controllable, 4-way external socket.

View HettCube Accessories
rails on Hettich tray system incubators

Hettich Tray System (HTS)

The Hettich Tray System, which fits in all three incubator sizes, allows the internal space of the HettCube to be used optimally.

View HettCube Accessories
Hettich tubes in incubator

Loewenstein shelf

Stainless steel shelf with 81 piece capacity.

View HettCube Accessories
Hettich HettCube Petri Rack accessory

Petridish rack

Hold up to 180 petri dishes per shelf.

View HettCube Accessories
Hettich HettCube Rack accessory

Large and XL racks

Convenient racks with angle adjustment.

View HettCube Accessories

Standard Equipment

HettCube models come complete with an extensive list of standard equipment.

4.3 inch Touchscreen

Our intuitive touchscreen offers many features providing optimal flexibility and user control.

Dual control panel and door lock

USB service interface

Stainless steel interior (W-St. 1.4301) (ASTM 304)

Ø 42 mm bushing on rear panel

Potential-free alarm output

Compensation for unneeded standard shelves - please inquire

2 standard stainless steel shelf and 1 HTS

HettCert factory certificate

9-point temperature validation according to DIN 12880: 2007-05

Specifications

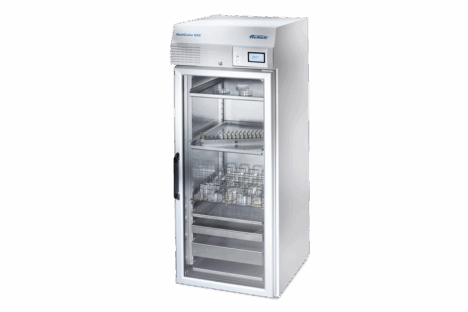

Hettich HettCube 600 glass door
Model
HettCube 600 | R
Internal volume (cuft)
18
Internal volume (L)
520
Validated usable volume (L)
351
Validated usable volume / internal volume
67%
Temp. range: incubators | cooled incubators
1K above ambient temp. up to +65 °C | 0 °C up to +65 °C
Temp. fluctuation at +37 °C
± 0.1 K
Temp. uniformity at +37 °C
± 0.2 K
Temp. uniformity at +25 °C
± 0.1 K
Exterior dims. (WxDxH) in
28 x 32.5 x 78.25
Exterior dims. (W x D x H) mm
710 x 825 x 1990
Interior dims. (WxDxH) in
21 x 27 x 55.7
Interior dims. (W x D x H) mm
535 x 690 x 1415
Weight (lbs.)
372.5 | 397
Weight (kg)
169 | 180
Warranty
5 years
Recovery time door opened for 30 s at +37 °C
≤ 5.5 min
Footprint (m²)
0.6
Footprint (cu.ft.)
16.4
Trays provided as standard
4 (3 standard + 1 HTS)
Noise level dB(A)
≤42 | ≤44
Power supply
120 V
Energy consumption at +37 °C
0.06 kWh
Download HettCube Brochure

Other HettCube Models

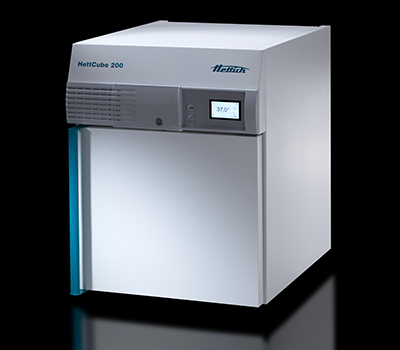

Hettich HettCube 200 incubator
