Quiet Operation
Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.
Maximum versatility in a compact footprint
Given its vast capability and compact size, the UNIVERSAL 320 provides flexible solutions for dynamic workflows. The UNIVERSAL 320 occupies minimal bench space at a width of only 395 mm (15.5 inches), with or without temperature control and is capable of spinning a variety of standard tubes, plates, cytology clips and bottles (up to 200 ml), offering true all-in-one capability. Excellent performance and a comprehensive range of accessories enable the UNIVERSAL 320 | R to carry out virtually any centrifuging task.
Functional Design
Easy to lift lid with front-facing control panel for effortless interaction and programming.
Enhanced Safety
Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.
Five Year Warranty
All Hettich centrifuges are protected by our 5-year warranty and full technical support.
Fully Certified
Engineered and manufactured in accordance with all relevant safety and production standards.

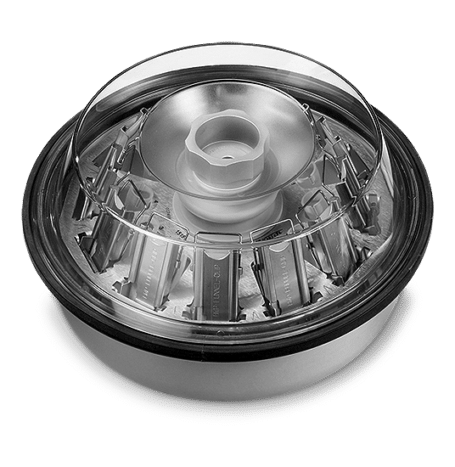

Doubles as a Cyto-Centrifuge
The UNIVERSAL 320 performs multiple applications including cytology, in the same centrifuge, saving you money and bench space. Hettich’s 12-place Clip Rotor is capable of spinning 0.2 to 6 ml single, double or large funnel formats with optional bio-containment, eliminating the need to purchase an expensive dedicated cytocentrifuge.
Learn More
Versa-Lock Buckets Easy to Load, Unload, Carry and Seal
Hettich’s VERSA-LOCK buckets feature an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as locking mechanism for your bio-containment lids.
Up to 28 Blood Tubes
Spin up to 28 blood tubes with a UNIVERSAL 320 Blood Tube Package with or without bio-containment lids.
Spin 10 Microtiter Plates
Spin up to 10 microtiter plates at a max. RPM of 4,000 and max. RCF of 2,218.
SUPPORTS OVER
Shown below are the most common application packages for the UNIVERSAL 320 | R centrifuge. Custom packages are available, please inquire for details.
0 APPLICATION CONFIGURATIONS
UNIVERSAL 320 | R Application Packages
Filter:
UNIVERSAL 320 / UNIVERSAL 320 R
CONICAL TUBE PACKAGE - 5 mL - BC
The UNIVERSAL 320 Conical Tube Package comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets, adapters for 5 mL conical tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
16
5 (Conical)
17 x 59
≤ 4,500
≤ 3,328
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 5 mL conical, (4) Bio-containment Lids
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
BLOOD TUBE Package
The UNIVERSAL 320 Blood Package comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets, and adapters for 13 x 75/100 and 16 x 75/100 mm tubes. Many a-la-carte options are also available. Contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
28
1.6 - 7
13 x 75/100
≤ 5,000
≤ 3,913
28
4 - 10
16 x 75/100
≤ 5,000
≤ 3,913
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
BLOOD TUBE PACKAGE - 4 - BC
The UNIVERSAL 320 Blood Tube Package 4 BC comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 and 16 x 75/100 mm tubes. Many a-la-carte options are also available, contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
28
1.6 - 7
13 x 75/100
≤ 4,500
≤ 3,215
20
4 - 10
16 x 75/100
≤ 4,500
≤ 3,215
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100 mm, (4) Bio-containment lids
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
URINALYSIS Package
The UNIVERSAL 320 Urinalysis Package comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets, and adapters for KOVA tubes. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
12 - KOVA
17 x 102
≤ 4,500
≤ 3,102
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters KOVA
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
CELL CULTURE PACKAGE - 4
The UNIVERSAL 320 Cell Culture Package 4 comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets and adapters for 15 and 50 mL tubes. Many a-la-carte options are also available, contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
16
15 Conical
17 x 120
≤ 4,500
≤ 3,305
4
50 Conical
29 x 115
≤ 4,500
≤ 3,260
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
CELL CULTURE PACKAGE - 4 - BC
The UNIVERSAL 320 Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
15 Conical
17 x 120
≤ 4,500
≤ 3,328
4
50 Conical
29 x 115
≤ 4,500
≤ 3,328
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-containment lids
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
CELL CULTURE PACKAGE - 8
The UNIVERSAL 320 Cell Culture Package 8 comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor, buckets and adapters for 15 and 50 mL tubes. Many a-la-carte options are also available, contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
8
15 Conical
17 x 120
≤ 4,500
≤ 3,260
8
50 Conical
29 x 115
≤ 4,500
≤ 3,260
Package Contents:
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (8) Adapters 15 mL, (8) Adapters 50 mL
Request more information
UNIVERSAL 320 / UNIVERSAL 320 R
PLATE Package
The UNIVERSAL 320 Plate Package comes complete with everything you need to perform your application. This includes the UNIVERSAL 320 or UNIVERSAL 320 R centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.
Watch VideoPLATE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
10
Microtiter
--
≤ 4,000
≤ 2,218
UNIVERSAL 320
CYTOLOGY PACKAGE - 12
The UNIVERSAL 320 CYTO-CLIP Package for cytology has everything you need to perform your application. The package includes the UNIVERSAL 320 centrifuge, cytology clip rotor with biocontainment, cyto-clips, and cell funnel disposable 50-pack. Many a-la-carte options are also available. Contact us for more details.
CLIP QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
0.4 – 6
--
2,000
438
Package Contents:
(1) Centrifuge, (1) Cytology Clip Rotor w/Bio-containment, (2) Cyto Clip 6-packs, (1) Cell Funnel, disposable, 50 pk, (1) Cyto Rotor Stand
Request more information
ROTOR ONLY
CYTOLOGY PACKAGE - 12
The CYTOLOGY ROTOR ONLY Package has everything you need to perform your application. The package includes the cytology clip rotor with biocontainment, cyto-clips, and cell funnel disposable 50-pack. No centrifuge included, works with the UNIVERSAL 320 centrifuge. Many a-la-carte options are also available. Contact us for more details.
CLIP QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
12
0.4 – 6
--
2,000
438
Package Contents:
(1) Cytology Clip Rotor w/Bio-containment, (2) Cyto Clip 6-packs, (1) Cell Funnel 50 ct. disposable, (1) Cyto-Clip Rotor Stand

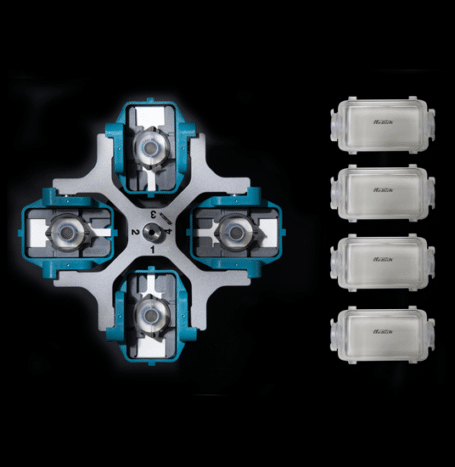

BUCKETS ONLY
CYTOLOGY BIO-SEAL PACKAGE
The Cytology Bio-Seal Bucket Package has everything you need to perform your application. The package includes Hetich’s unique bio-seal buckets and adapters for cytology. No centrifuge included, works with the 1624 rotor. Many a-la-carte options are also available. Contact us for more details.
QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
4
1 – 8
--
4,000
1,648
Supports Over
413Application Configurations
TUBE OPTIONS
microliter up to 5 mL, blood, pediatric, urine, conical and skirted up to 50 mL, standard up to 100 mL, plates, bottles up to 200 mL, cytology
UNIVERSAL 320 | R
CUSTOM Package
Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.
Inquire for more infoSpecifications

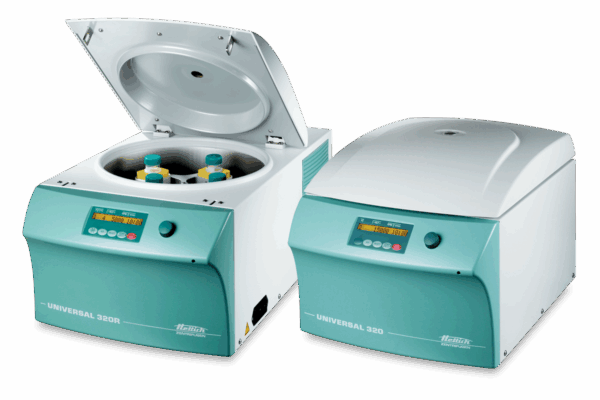

UNIVERSAL 320
UNIVERSAL 320 R
Max. Capacity
4 x 200 ml / 6 x 94 ml
4 x 200 ml / 6 x 94 ml
Max. RPM/RCF
15,000/21,382
15,000/21,382
Temp. Control
Ambient
-20 °C to +40 °C
Dims. (HxWxD) mm
346 x 401 x 529
346 x 407 x 698
Dims. (HxWxD) in
14 x 16 x 20.5
14 x 16 x 27
Weight (kg)
31
52
Weight (lbs.)
68
117
Power supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Swing-out, Fixed-angle, Cytology, Hematocrit
Swing-out, Fixed-angle, Cytology, Plates
Specifications
You may also consider...
ROTOFIX 32 A
Rugged and simple design for uncomplicated performance. Ideal for all standard tubes up to 100 ml and specialty tubes such as cytology clips/funnels and chrome bath tubes.

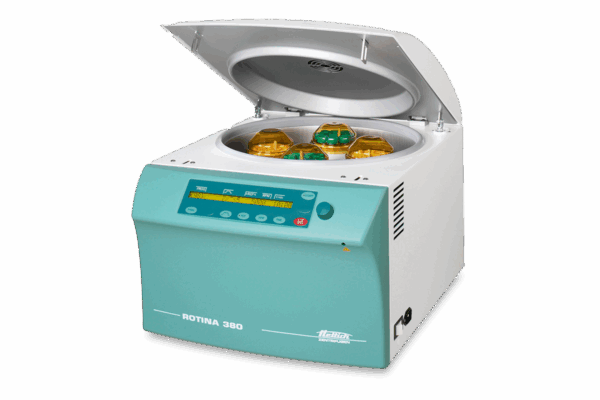

ROTINA 380
The ROTINA 380 requires minimal bench space at a width of only 18 in. Capable of spinning up a wide variety of tubes, the ROTINA 380 vastly outperforms its modest size.
Hettich Mid-size Benchtop Centrifuges
Hettich mid-sized benchtop centrifuges offer performance, capacity, and versatility in a compact all-steel housing. Spin blood, cell and tissue cultures, urine, plates, and more in the same unit, right on the benchtop. With convenient ergonomic features and enhanced safety, Hettich benchtop centrifuges service labs in Clinical, Research, Agriculture, Food and Beverage, Petrochemical, and more.
Resources

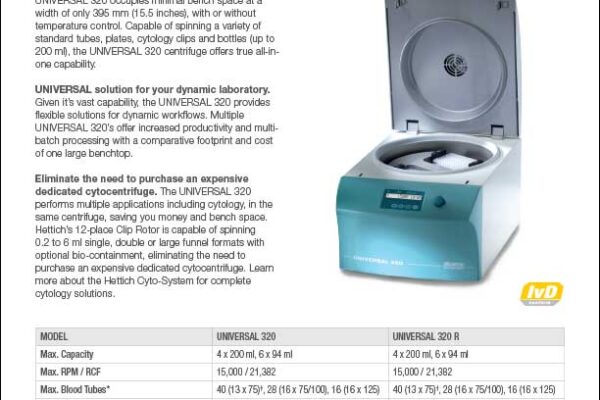

UNIVERSAL 320 | R Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. Read More
File type: PDF
File size: 185.3 kb
Download
File size: 185.3 kb
UNIVERSAL 320 | R Operator’s Manual
Operator’s manual for model(s) UNIVERSAL 320 and UNIVERSAL 320 R. When using Hettich equipment, please refer to your product operator’s manual for important safety and product-use instructions. Read More
File type: PDF
File size: 7.6 mb
Download
File size: 7.6 mb
Benchtop Centrifuges Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. Read More
File type: PDF
File size: 182.4 kb
Download
File size: 182.4 kb
Hettich Mid-sized Benchtop Centrifuges | Product Video
Hettich mid-sized benchtop centrifuges offer performance, capacity, and versatility in a compact all-steel housing. Spin blood, cell and tissue cultures, urine, plates, and more in the same unit, right on… Read More
File type: Video

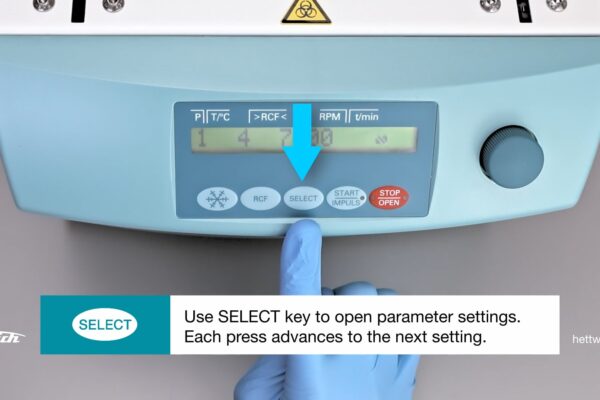

Hettich | N Plus Control Panel | Programming
The Hettich N Plus control panel is featured on the Hettich MIKRO 200, MIKRO 220, UNIVERSAL 320, ROTOFIX 46, benchtop centrifuges. In this video learn how to view and program the centrifuge parameters. Read More
File type: Video
Resource Library
Find all UNIVERSAL 320 resources in the Resource Library.
Need Help Choosing a Centrifuge?
Hettich manufactures a complete range of centrifuges for nearly all standard laboratory applications. To help you choose the right centrifuge for your lab, we created a quick laboratory centrifuge guide to help narrow your choice.
Request Information
Fill out the form below for product support, questions or comments and we will get back to you as soon as possible.

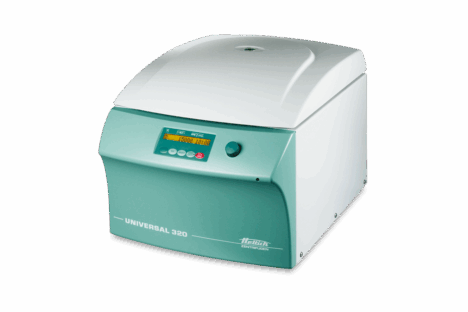

UNIVERSAL 320
