Door
Fully insulated stainless steel door with 2-point locking (compression door lock)
Memmert Incubators Overview
Memmert incubators are ideal for all applications with temperatures up to +80°C – specifically for incubating living cultures at +37 °C. Learn more about the many benefits Memmert series incubators have to offer.
Standard Equipment
Memmert models come complete with the following list of standard equipment.
Internals
1 stainless steel grid(s) – electropolished
Inner Door
Inner glass door
Calibration Certificate
Works calibration certificate for +37°C
Warranty
3-years
Specifications

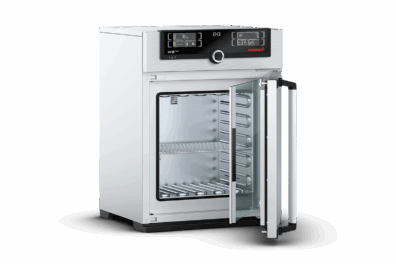

Memmert IN55, IN55plus, IF55, IF55plus
Internal volume (cuft)
2
Temp. range
IN55/IN55plus: At least 5 above ambient temperature to +80 °C. IF55/IF55plus: Min. 10°C above ambient up to +80°C
Sensor
1 Pt100 sensor DIN class A in 4-wire-circuit. Plus models: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
0.1 °C
Control Panel
ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display. Plus models: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Sterilization
Plus models: Fixed sterilization programme (4 hours/160°C) for sterilization of working chamber, not for sterilizing the load
Convection/Fan
(IN) Natural Convection / (IF) Forced Air (Fan)
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). Plus models: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Temp. Control
Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Plus models: Add mechanical temperature limiter TB, Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Plus models: Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Plus models: Visual and acoustic
Humidity rh
max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Interior Dims (WxHxD) in.
15.75 x 15.75 x 13 (IF models: d less 1.5 in. for fan)
Exterior dims (WxHxD) in.
23 x 31 x 20.25 (d +2.25 in. door handle)
Power
115 V, 50/60 Hz, approx. 800 W
Warranty
3 years
Specifications
You may also consider...
Memmert IN30, IN30plus, IF30, IF30plus
A natural convection (IN30, IN30plus) or forced air circulation, (IF30, IF30plus) 1 cu.ft., standard/heated incubator with homogenous and gentle warming for valuable chamber loads. Stainless steel construction, intuitive single or twin display, 3-year warranty, and a temperature range up to +80 °C.
Memmert IN75, IN75plus, IF75, IF75plus
A natural convection (IN75, IN75plus) or forced air circulation, (IF75, IF75plus) 3 cu.ft., standard/heated incubator with homogenous and gentle warming for valuable chamber loads. Stainless steel construction, intuitive single or twin display, 3-year warranty, and a temperature range up to +80 °C.
Resources
Below are resources to help you get familiar with Memmert Incubators.
Memmert Benchtop Incubators Product Sheet
This product sheet provides a detailed overview of the product features, benefits, and models. Read More
File type: PDF
File size: 107.8 kb
Download
File size: 107.8 kb
