Memmert Ovens Overview

Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.

Standard Equipment

Memmert models come complete with the following list of standard equipment.

Door

Fully insulated stainless steel door with 2-point locking (compression door lock)

Internals

2 stainless steel grid(s), electropolished

Calibration Certificate

Works calibration certificate, calibration at +160°C

Warranty

3-year warranty

Specifications

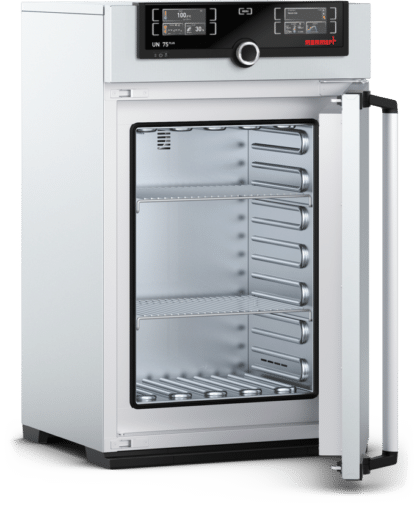

Memmert UN 75 Plus

Memmert UN75, UN75plus, UF75, UF75plus
Internal volume (cuft)
3
Temp. range
UN: +5 above ambient to +300 °C. UF: +10 above ambient to +300 °C
Sensor
1 Pt100 sensor DIN class A in 4-wire-circuit. Plus models: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Control Panel
SingleDISPLAY, adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display. Plus models: TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Function HeatBALANCE
Plus models: Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Convection/Fan
(UN) Natural Convection, (UF) Forced Air Fan
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). Plus models: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Temp. Control
Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Plus models: Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Plus models: Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Plus models: Visual and acoustic
Humidity rh
Max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Interior Dims (WxHxD) in.
15.75 x 22 x 13 (UF models: d less 1.5 in. For fan)
Exterior dims (WxHxD) in.
23 x 37 x 20.25 (d +2.25 in. door handle)
Weight (lbs.)
146
Power
115 V, 50/60 Hz, approx. 1800 W
Warranty
3 years

Specifications

Memmert UN75, UN75plus, UF75, UF75plus

Internal volume (cuft)
3
Temp. range
UN: +5 above ambient to +300 °C. UF: +10 above ambient to +300 °C
Sensor
1 Pt100 sensor DIN class A in 4-wire-circuit. Plus models: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Set Temp. Accuracy
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Control Panel
SingleDISPLAY, adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display. Plus models: TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Function HeatBALANCE
Plus models: Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Convection/Fan
(UN) Natural Convection, (UF) Forced Air Fan
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand). Plus models: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
Temp. Control
Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Plus models: Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature. Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY
Plus models: Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Plus models: Visual and acoustic
Humidity rh
Max. 80 %, non-condensing
Interior
Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Interior Dims (WxHxD) in.
15.75 x 22 x 13 (UF models: d less 1.5 in. For fan)
Exterior dims (WxHxD) in.
23 x 37 x 20.25 (d +2.25 in. door handle)
Weight (lbs.)
146
Power
115 V, 50/60 Hz, approx. 1800 W
Warranty
3 years

You may also consider...

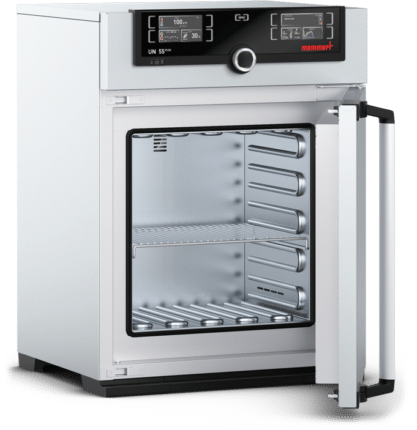

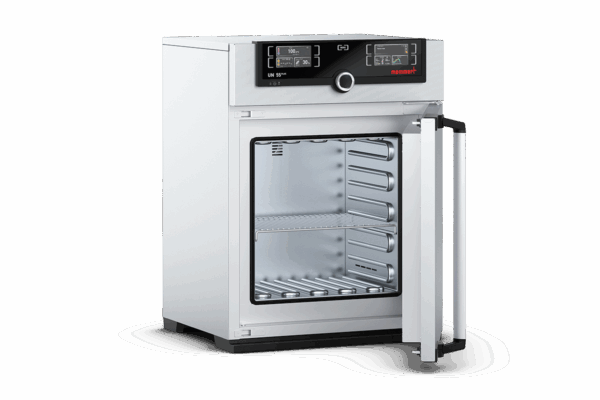

Memmert UN/UF 55

Memmert UN55, UN55plus, UF55, UF55plus

A natural convection (UN55, UN55plus) or forced air circulation, (UF55, UF55plus), 2 cu.ft. universal oven made of high-quality, hygienic, easy-to-clean stainless steel with best-in-class ventilation and control technology, overtemperature protection, and precisely tuned heating technology.

Lets get started

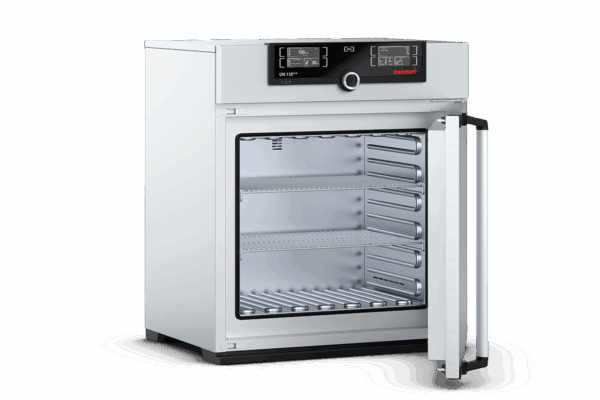

Memmert UN/UF 110 door open

Memmert UN110, UN110plus, UF110, UF110plus

A natural convection (UN110, UN110plus) or forced air circulation, (UF110, UF110plus), 4 cu.ft. universal oven made of high-quality, hygienic, easy-to-clean stainless steel with best-in-class ventilation and control technology, overtemperature protection, and precisely tuned heating technology.

Lets get started

Resources

Below are resources to help you get familiar with Memmert Ovens.

Memmert Ovens/Sterilizers Product Sheet

This product sheet provides a detailed overview of the product features, benefits, and models. Read More

File type: PDF
File size: 727.9 kb
Download

Resource Library

Please find all articles, videos, downloads, and more in the Resource Library.

Need Help Choosing an Oven?

To help you choose the right oven for your lab, we created a quick laboratory oven guide to help narrow your choice.

Request Information

Fill out the form below for specific product support, questions or comments and we will get back to you as soon as possible.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

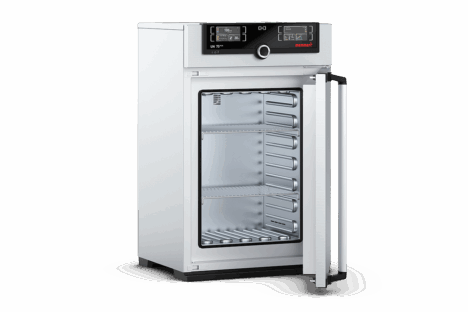

    Memmert UN 75 Plus

    UN/UF 75

    Precise drying, heating, ageing, burn-in and hardening in research, science, industry and quality assurance. Read more

    Hettich

    February 14, 2022

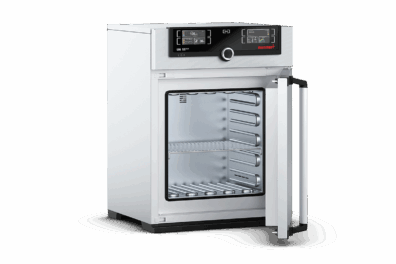

    Memmert UN/UF 55

    UN/UF 55

    Precise drying, heating, ageing, burn-in and hardening in research, science, industry and quality assurance. Read more

    Hettich

    February 14, 2022

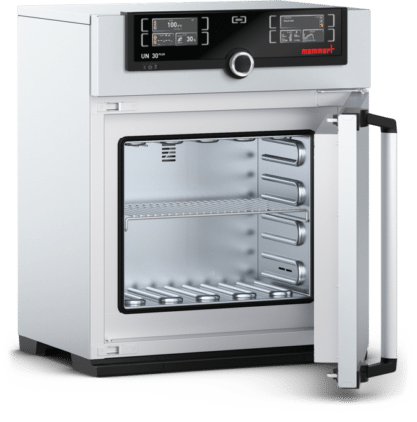

    Memmert UN/UF 30
