Quiet Operation
Quiet as a normal conversation. Will not increase noise levels or contribute to distractions.

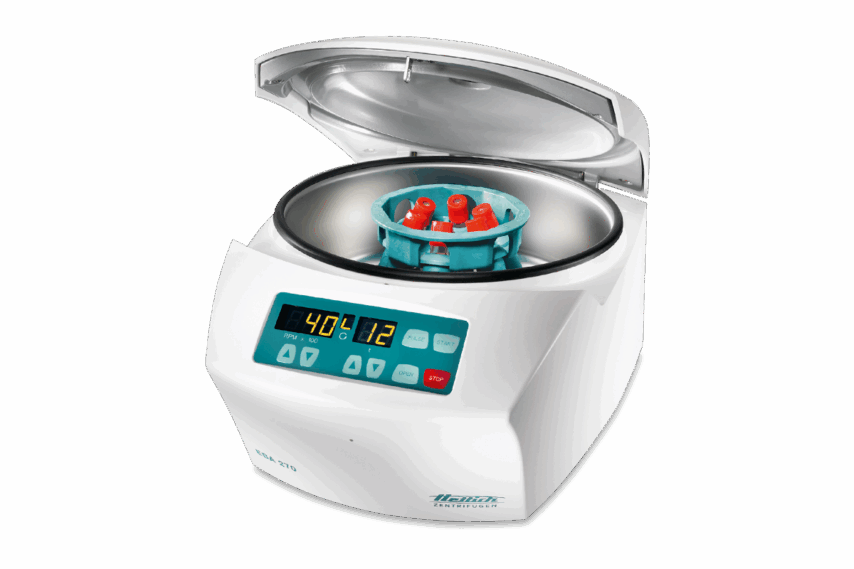

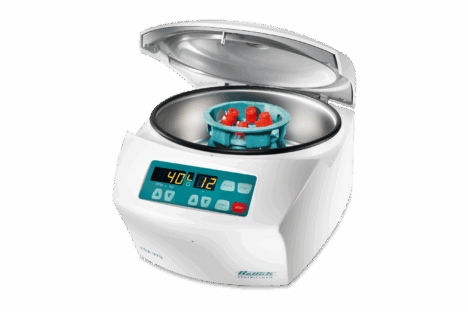

EBA 270
SMALL CENTRIFUGE
BLOOD / URINALYSIS / PEDIATRIC
Max. Capacity 6 x 15 mL
Max. RPM/RCF 4,000/2,254
Temperature Control Ambient
Simple. Compact. Complete.

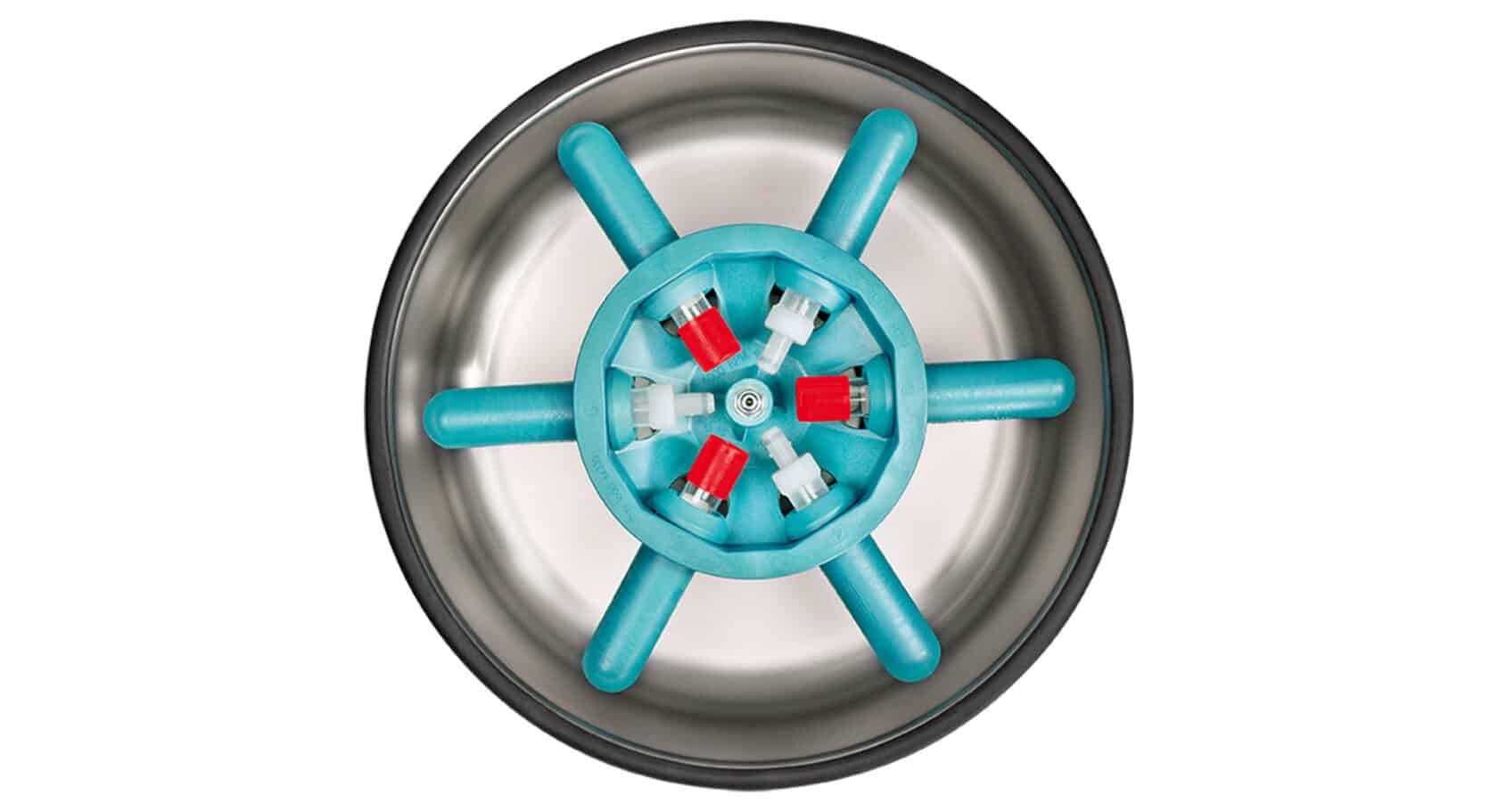

Built-in, horizontal rotor for flat separation of all blood, SST/gel, urine and pediatric tubes. Ideal for off-site draw locations, physician office labs and veterinary offices.
The EBA Series Small Centrifuges
See the versatility of the Hettich EBA 270 small clinical centrifuge.
AABB Standards-Compliant Product
Products that achieve AABB’s Standards-Compliant Product recognition have been thoroughly reviewed by AABB and confirmed as adhering to the AABB Standards related to equipment, process control, and document control.
Functional Design
Easy to lift lid with front-facing control panel for effortless interaction and programming.
Enhanced Safety
Self-closing, auto-locking lid with steel latches. All-metal chamber provides reinforced security.
Five Year Warranty
All Hettich centrifuges are protected by our 5-year warranty and full technical support.
Fully Certified
Engineered and manufactured in accordance with all relevant safety and production standards.
Small in Size, Big on Results
Horizontal separation in a standard gel tube with the EBA 270.
EBA 270 Application Package
EBA 270
COMPLETE Package

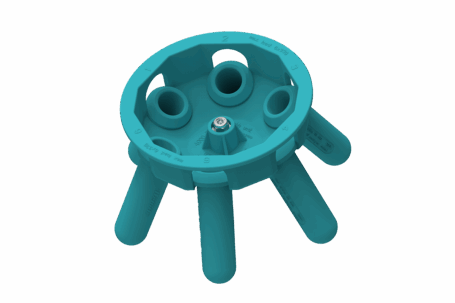

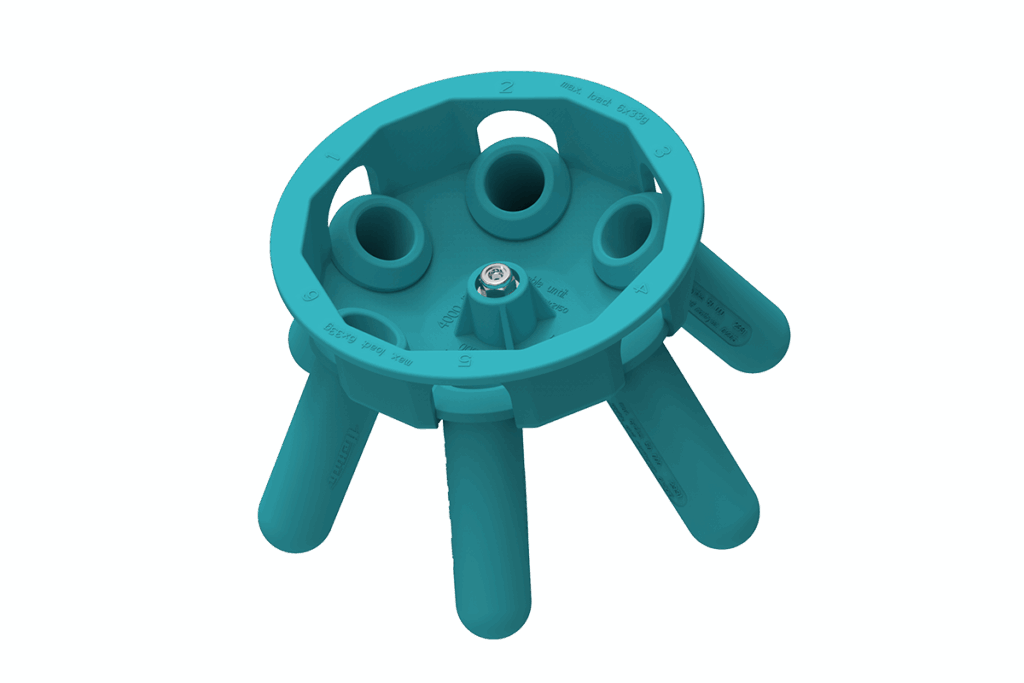

The EBA 270 Complete Package comes with everything you need to perform your application. This includes the EBA 270 centrifuge, a 90º swing-out, built-in rotor and adapters for blood and pediatric tubes. Contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
0.5 Pediatric
10.7 x 86
≤ 4.000
≤ 1,359
6
1.6 - 7
13/16 x 75
≤ 4.000
≤ 1,807
6
4 - 10
13/16 x 100
≤ 4.000
≤ 2,254
6
12 - KOVA
17 x 102
≤ 4.000
≤ 2,254
Package Contents:
(1) Centrifuge, (1) Built-in, Horizontal Rotor, (6) Adapters 13 x 75/100 mm, (6) Adapters 16 x 75/100 mm, (6) Adapters Pediatric
Request more informationSpecifications
EBA 270
Max. Capacity
6 x 15 ml
Max. RPM/RCF
4,000/2,254
Temp. Control
Ambient
Dims. (HxWxD) mm
239 x 326 x 389
Dims. (HxWxD) in
9 x 13 x 15
Weight (kg)
14
Weight (lbs.)
31
Power supply
120 V
Warranty
5-years
Rotor Type(s)
Built-in, swing-out
Specifications
You may also consider...
EBA 200
Ideal for small clinical applications with built-in, 8-place, angle rotor. Model ‘S’ version for rapid separation.
EBA 280
Small clinical centrifuge ideal for serology and the rapid separation of your STAT chemistry, coag. and pediatric samples in a 6-place, swing-out rotor at up to 5,071 x g.
The Hettich EBA Series
See why the Hettich EBA Series small benchtop centrifuges are ideal for low-volume clinical applications in the blood bank, hematology, STAT, core lab, and physician’s office laboratory.
Resources
EBA 270 Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. Read More
File type: PDF
File size: 161.6 kb
Download
File size: 161.6 kb
EBA 270 Operator’s Manual
Operator’s manual for models EBA 270. When using Hettich equipment, please refer to your product operator’s manual for important safety and product-use instructions. Read More
File type: PDF
File size: 3.5 mb
Download
File size: 3.5 mb
Small Centrifuges Product Sheet
This product sheets provides a comprehensive overview of the unique product features specific to the model. Read More
File type: PDF
File size: 183.6 kb
Download
File size: 183.6 kb
Hettich EBA 200 and EBA 270 Small Centrifuges | Video Summary
Hettich EBA 200 and EBA 270 Small Centrifuges | Video Summary The EBA 200 / 200 S and EBA 270 are part of Hettich’s best-selling EBA Series clinical tabletop centrifuges.… Read More
File type: Video
Hettich EBA Series Small Centrifuges | Product Video
See why the Hettich EBA Series small benchtop centrifuges, the EBA 200, EBA 270, and EBA 280, are ideal for low-volume clinical applications in the blood bank, hematology, STAT, core… Read More
File type: Video
Resource Library
Find all the EBA 270 resources in the Resource Library.
Need Help Choosing a Centrifuge?
Hettich manufactures a complete range of centrifuges for nearly all standard laboratory applications. To help you choose the right centrifuge for your lab, we created a quick laboratory centrifuge guide to help narrow your choice.
Request Information
Please complete the form below for product information, support, questions or comments and we will get back to you as soon as possible.
