High-speed
High Speed w/max RPM of 6,300 min-1 (4,593 RCF)
SBS 300 Robotic
AUTOMATION CENTRIFUGE
MICROTITER PLATES
Max. Capacity 2 plates (±50mm)
Max. RPM/RCF 6,300/4,593
Robot Access Front/top loading
Essential and Modular

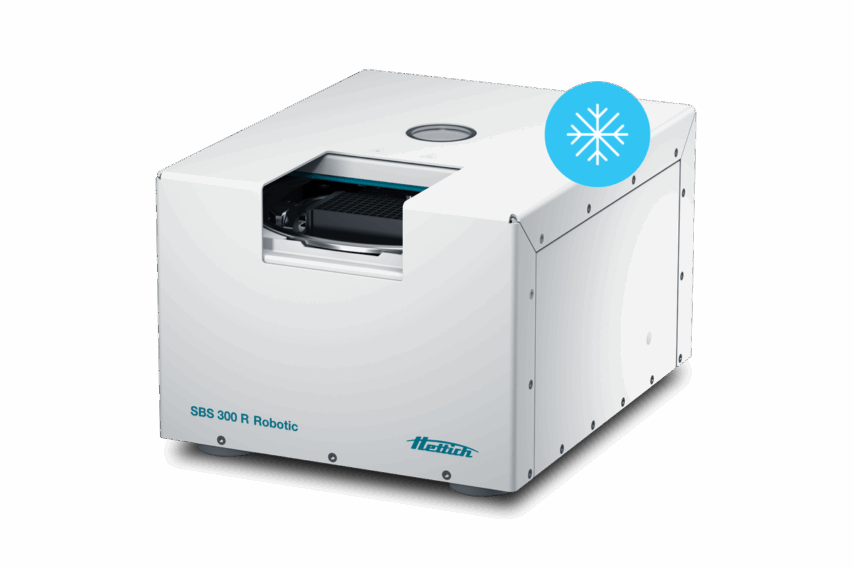

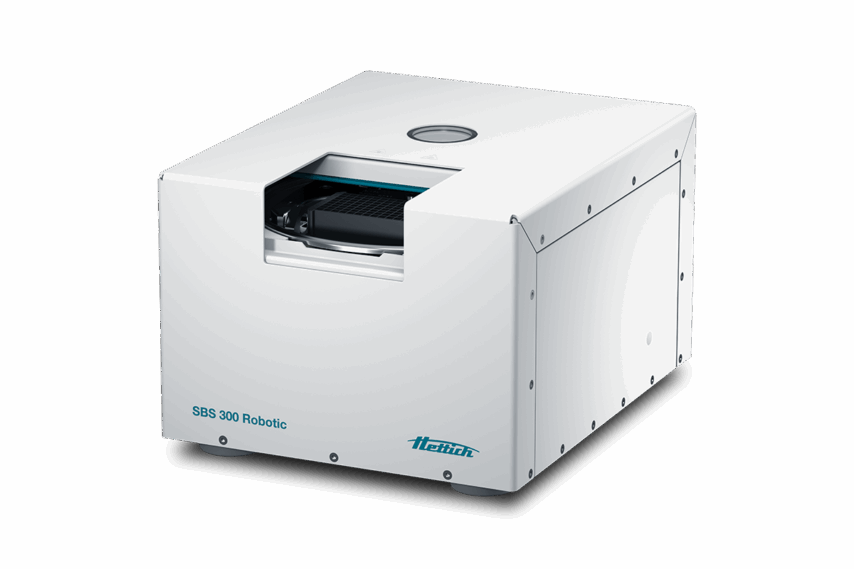

The SBS 300 ROBOTIC is a front-loading centrifuge developed and optimized for microplates in high-throughput screening. The compact and modular design opens up a wide range of applications in automation and can be cooled by an external cooling unit (SBS 300 R Robotic). The robust construction ensures increased safety and durability – especially in high throughput and continual-use environments.
SBS 300 Key Features
Front or top loading
Hatch opening time < 6 seconds.
Imbalance Detection
High imbalance tolerance of 50 g
Accurate Positioning
Fast + Slow positioning mode with a positioning time of 5 seconds. Position accuracy of 3 encoder steps (out of a total of 4096).
Quiet Operation
Max. noise level 65 dB(A).
All metal containment
Metal housing and lid with emergency lid lock release and hygienic stainless steel inner chamber.
Stackable
Compact and stable with the option to “stack” units.
Plate Compatibility
Fits microtiter and Deep Well plate up to 50 mm in height.
Designed for Plates
The SBS300 was developed from the ground up to be the laboratory’s most advanced front-loading microtiter plate centrifuge. Boasting speeds up to 6,300 RPM, compatibility with tall labware, and a forgiving imbalance tolerance, the SBS 300 will become an indispensable addition to your next automated project.
Powerful solution for optimal cooling

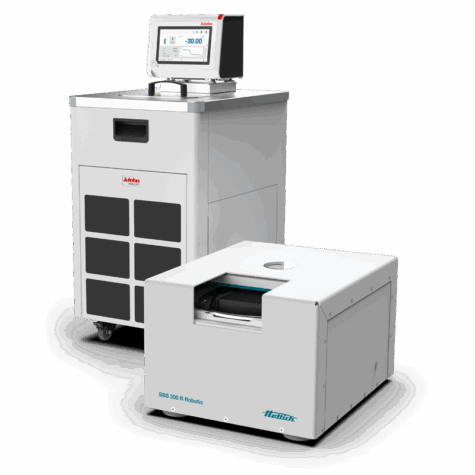

For external cooling of the SBS 300 R Robotic, we recommend the MAGIO MX-2500F chiller from JULABO, which is a high-quality product from a renowned German manufacturer. This unit ensures top cooling performance and precise temperature control.
Download Product SheetSpecifications
SBS 300 Robotic
SBS 300 R Robotic
Max. Capacity
2 x Microtiter Plates
2 x Microtiter Plates
Max. RPM/RCF
6,300 min-1/4,593xG
6,300 min-1/4,593xG
Dims. (HxWxD) mm
302 x 411 x 507
302 x 411 x 507
Dims. (HxWxD) in
12 x 16.25 x 20
12 x 16.25 x 20
Weight (kg)
70
70
Weight (lbs.)
154
154
SBS Plates
2
2
Max plate height
50 mm
50 mm
Hatch opening time
5 s
5 s
Lowest temperature
Ambient
4 °C
Noise suppression
65 Db max
65 Db max
Imbalance
50 g
50 g
Manual override
Yes
Yes
Specifications
You may also consider...
ROTINA 380 Robotic
The ROTINA 380 Robotic models are available as air-cooled or cooled benchtop centrifuges and as cooled underbench units. They centrifuge microtitre plates and blood collection tubes fast and reliably.
ROTANTA 460 Robotic
Industry leading automatable centrifuge is the only high g-force, high capacity model on the market.
Resources

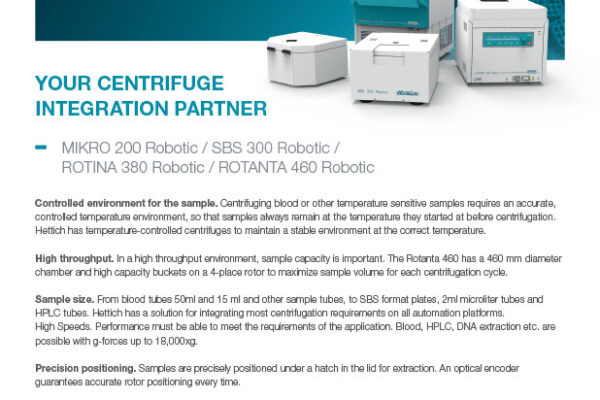

Automated Centrifuges Product Sheet
