Door
Fully insulated stainless steel door with 2-point locking (compression door lock).

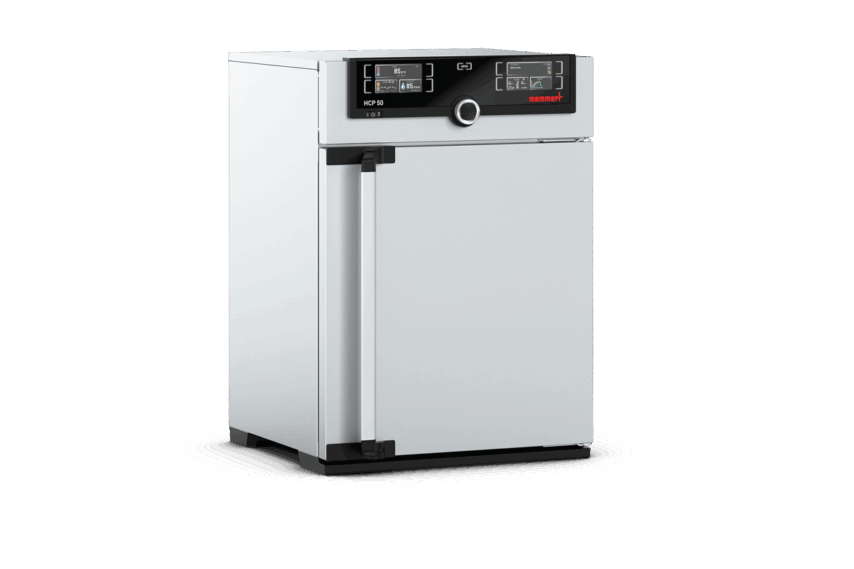

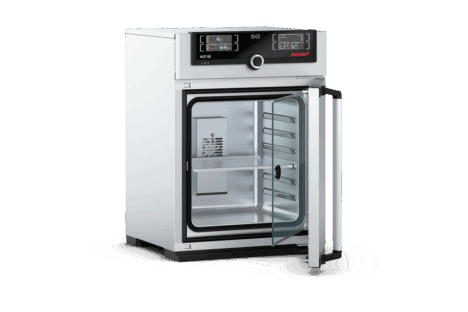

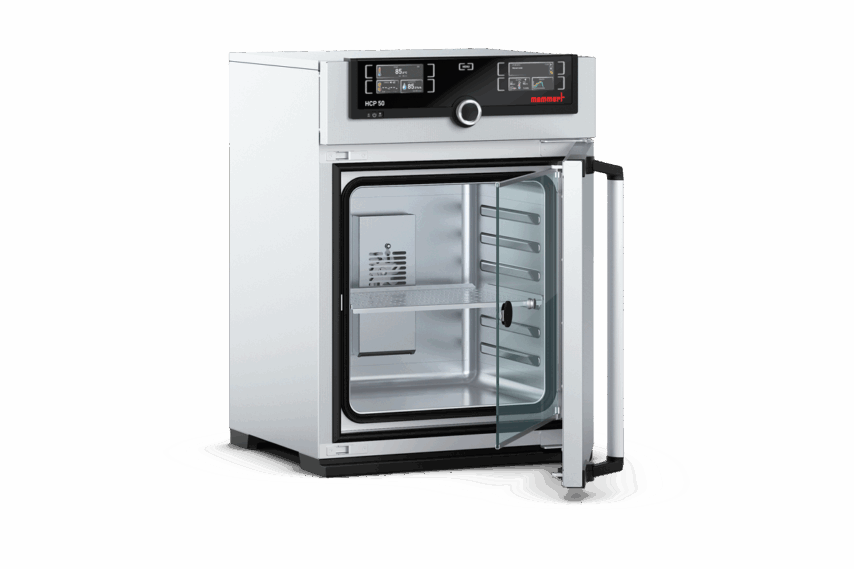

HCP50
Humidity Chamber
Standard Delivery Humidity Chamber
Internal Volume 56 L (2 cu.ft.)
Temp. Range +7 to +90 °C
Dimensions (in) 22 x 31.25 x 20.5
Memmert Climate Chambers Overview
Various stability/constant climate chambers, humidity chambers, and environmental test chambers are highly efficient and provide accurate controls for a homogeneous and stable environment. Learn more about the many benefits Memmert series climate chambers have to offer.
Standard Equipment
Memmert models come complete with the following list of standard equipment.
Internals
1 perforated stainless steel shelf/shelves
Calibration Certification
Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh.
Inner Door
Additional heated inner glass door.
Entry Port
Entry port (silicone), 40 mm clear diameter, for introducing connections, moisture tight, can be closed by silicone stopper, at the back, centre left.
Warranty
3-year warranty
Specifications
HCP50
Internal volume (cuft)
2
Temp. range
+7 above ambient temperature up to +90 °C
Set Temp. Range
+18 to +90 °C
Set Temp. Accuracy
0.1 °C
Sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Control Panel
TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Programming
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Heating
Large-area multi-function heating system on four sides with additional door and back heating to avoid condensation
Humidity rh
Max. 70 %, non-condensing
Interior Dims (WxHxD) in.
15.75 x 16.75 x 13 (d less 1.25 in. for fan)
Max. number of internals
5
Exterior dims (WxHxD) in.
22 x 31.25 x 20.5 (d +2.25 in. door handle)
Weight (lbs.)
121
Power
115 V, 50/60 Hz, approx. 1520 W
Warranty
3 years
Other
Active humidity control
Specifications
You may also consider...

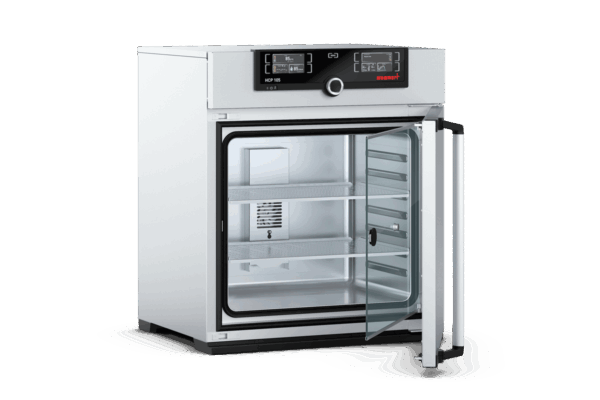

HCP105
The compressor based Memmert HCP105 has an internal volume of 4 cu. ft. with active humidity control. Stainless steel construction, intuitive controlCOCKPIT with a 3-year warranty. The temperature range is up to +50 °C.

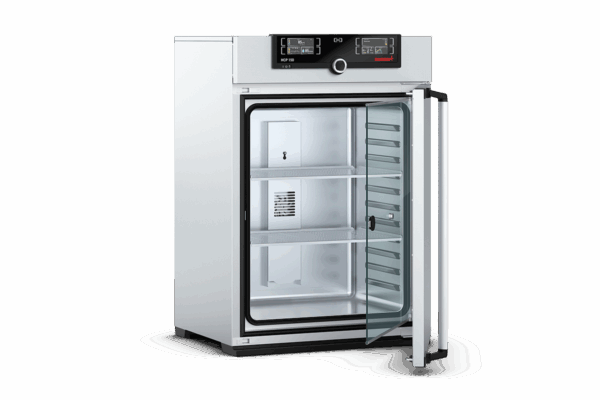

HCP150
The compressor based Memmert HCP150 has an internal volume of 5 cu. ft. with active humidity control. Stainless steel construction, intuitive controlCOCKPIT with a 3-year warranty. The temperature range is up to +50 °C.
Resources
Below are resources to help you get familiar with Memmert Climate Chambers.

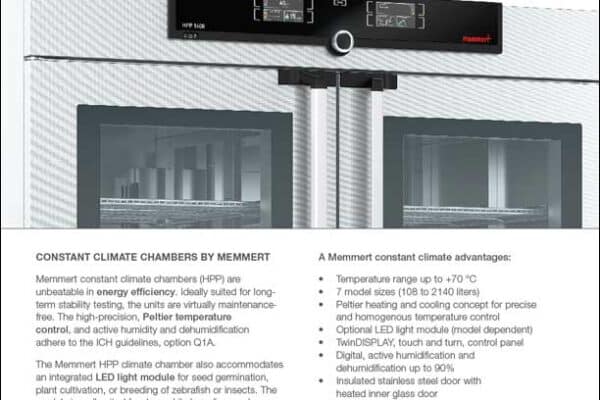

Memmert Climate Chambers Product Sheet
This product sheet provides a detailed overview of the product features, benefits, and models. Read More
File type: PDF
File size: 107.8 kb
Download
File size: 107.8 kb
Resource Library
Please find all articles, videos, downloads, and more in the Resource Library.
Need Help Choosing an Climate Chamber?
To help you choose the right climate chamber for your lab, we created a quick laboratory climate chamber guide to help narrow your choice.
