Internals
1 thermoshelf of aluminim, material 3.3547 (ASTM B209) with integrated large-area heating

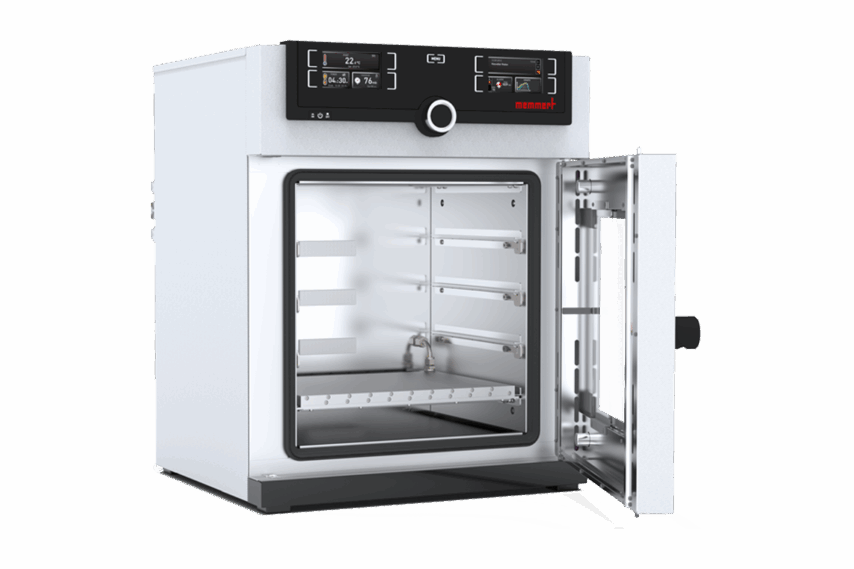

Memmert VO49
Vacuum Oven
Standard Delivery Vacuum Oven
Internal Volume 49 L (2 cu.ft.)
Temp. Range +5 to +200 °C
Dimensions (in) 21.75 x 24 x 15.75
Memmert Ovens Overview
Hettich offers various ovens/sterilizers, vacuum, paraffin, and pass-through ovens that lead the competition in precision, safety, and reliability. Learn more about the many benefits Memmert universal ovens have to offer.
Standard Equipment
Memmert models come complete with the following list of standard equipment.
Calibration Certificate
Works calibration certificate for +160°C at 20 mbar pressure for each supplied thermoshelf together with the vacuum oven
Warranty
3-year warranty
Specifications
Memmert VO49
Internal volume (cuft)
2
Temp. range
min. 5 above ambient to +200 °C
Sensor
Temperature measured through 4-wire Pt100 sensor individually for each thermoshelf
Set Temp. Accuracy
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Control Panel
TwinDISPLAY, adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Programming
AtmoCONTROL software on a USB stick fro programming, managing and transferring programmes via Ethernet interface or USB port.
Temp. Control
Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature.
AutoSAFETY
Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Alarm
Visual and acoustic
Humidity rh
Max. 80 %, non-condensing
Interior
Hermetically welded stainless steel interior of extremely corrosion-resistant stainless steel, material 1.4404. Additional interior mountings of stainless steel, material 1.4404 (removable for cleaning), consisting of mounting at the sides with guide bars for thermoshelves and on top (diffusor) to avoid turbulences when aerating.
Interior Dims (WxHxD) in.
15.25 x 15.25 x 13
Exterior dims (WxHxD) in.
21.75 x 24 x 15.75 (d +1.5 in. door handle)
Weight (lbs.)
183
Power
Electrical load (maximally equipped) at 230 V, 50/60 Hz
Warranty
3 years
Specifications
