Package Contents:
(1) Centrifuge, (1) Fixed-angle Rotor, (24) Adapters 1.5 mL, (1) Bio-containment Lid

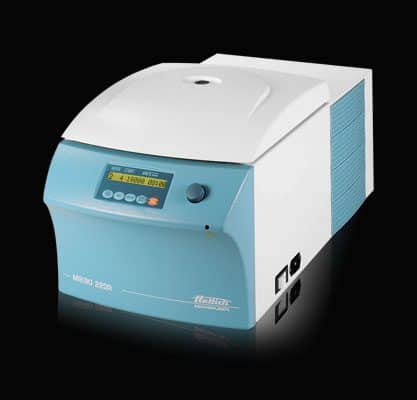

Request more informationMIKRO 220 | R

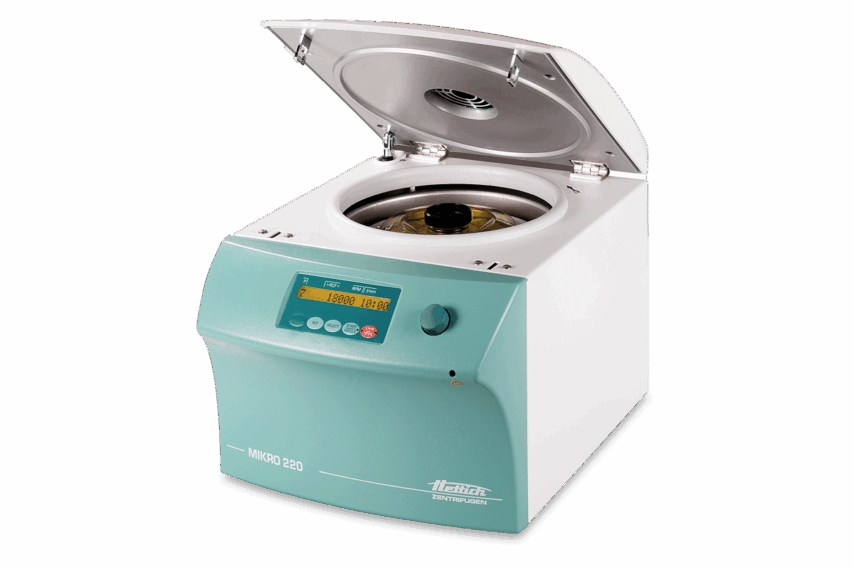

MICRO CENTRIFUGE
MICRO / BLOOD / CELL CULTURE / HEMATOLOGY
Max. Capacity 48 x 1.5-2.0 mL, 6 x 50 ml
Max. RPM/RCF 18,000/31,514
Temperature Control -20 to +40ºC (220 R)
High RCF, high-throughput and highly versatile for time saving performance
The MIKRO 220 centrifuge features a high capacity 48-place angle rotor and 60-place drum rotor for maximum productivity. Higher RCF values reduce production time and offers cost saving capability. Additional rotors include a 24-place swing-out rotor for microliter tubes, 6-place PCR strip rotor and rotors for conical tubes, blood tubes, pediatric tubes, urine tubes and hematocrit capillaries.
Micro Variety
The MIKRO 220 offers 4 different Microliter Tube Packages ranging from 24 to 48 tubes per run with optional bio-containment. The Microliter Tube Strip Package is also available, capable of spinning up to 6 PCR strips.
Microliter Tube Pkg. - 48
Spin up to 48 microliter tubes in a fixed-angle rotor with optional bio-containment.

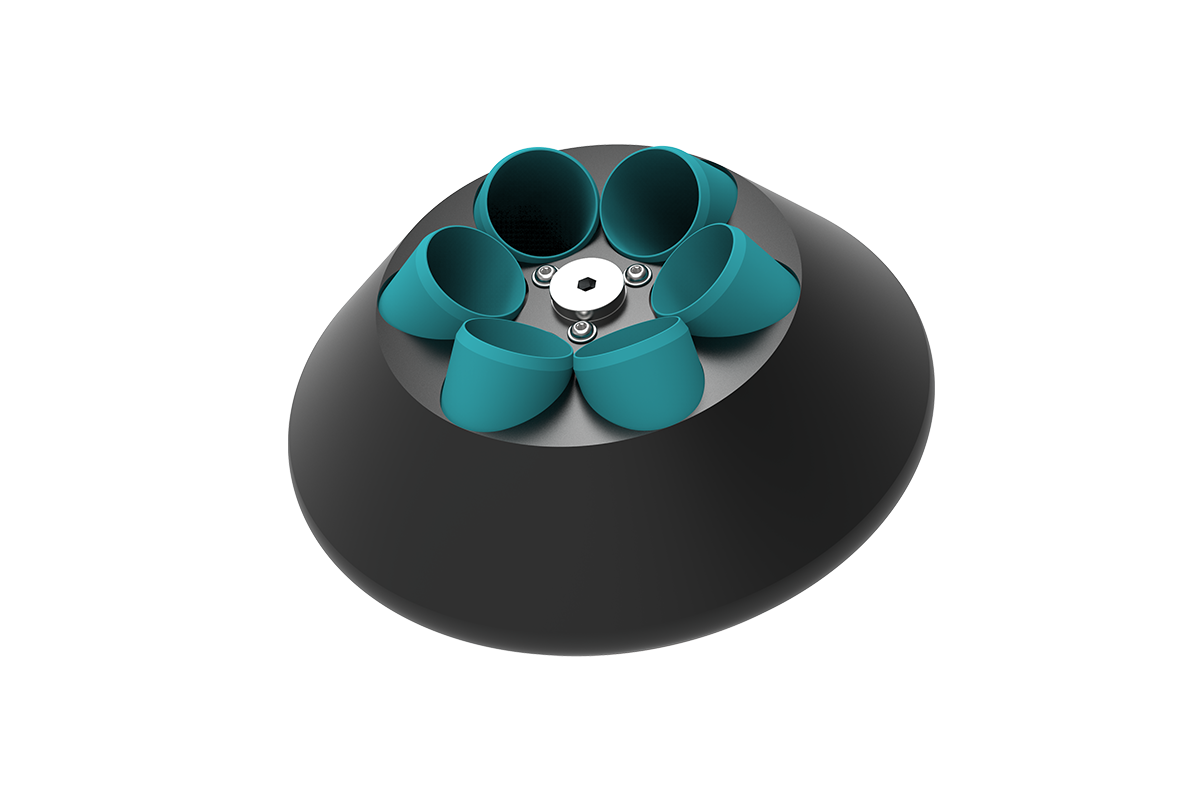

Microliter Tube Pkg - 90
Spin up to 24 microliter tubes in a horizontal rotor with optional bio-containment.
Microliter Tube Strip Pkg.
Spin (6) PCR strips - 8 x 0.2 mL at a max RPM of 14,000 and a max. RCF of 18,407.
Save time and energy with robust and quick temp. control
Available with optional centrifuge cooling (-20 to +40 °C), the MIKRO 200 R cools down to +4°C using the Fast-Cool function in 10 to 15 minutes. This feature saves energy by reducing the time necessary to pre-cool before centrifugation.
Compact refrigerated centrifuge for blood tubes
The MIKRO 220 R centrifuge provides compact refrigeration for spinning 12 blood tubes at 6,000 RPM.
Send me more info
Process Lipemic samples and save thousands on equipment
Don’t struggle with the high-cost of processing lipemic samples. Process your samples quickly, in-house, and do away with send-outs with Hettich high-speed micro centrifuges.
More on Lipemia RemovalSUPPORTS OVER
Shown below are the most common application packages for the MIKRO 220 centrifuge. Custom packages are available, please inquire.
0 APPLICATION CONFIGURATIONS
MIKRO 220 | R Application Packages
Filter:
MIKRO 220 / MIKRO 220 R

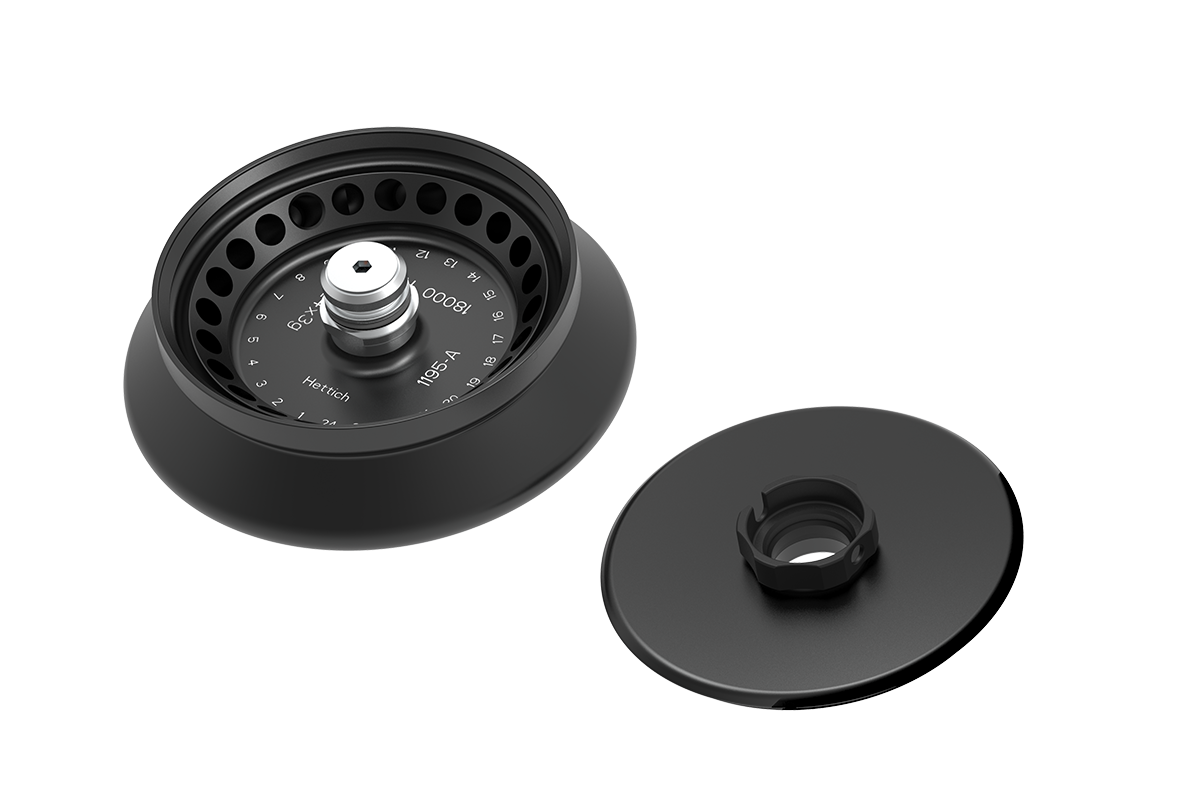

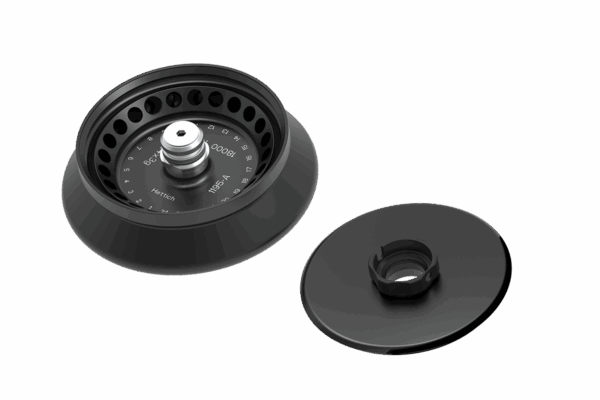

MICROLITER TUBE PACKAGE - 24 - BC
The MIKRO 220 Microliter Tube Package 24 BC comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, 24-place fixed-angle rotor, adapters for 1.5 mL tubes and bio-containment lid. In addition to this package, many a-la-carte options are available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
24
1.5 - 2.0
--
≤ 18,000
≤ 31,514
MIKRO 220 / MIKRO 220 R

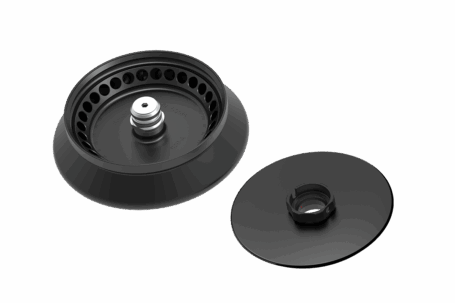

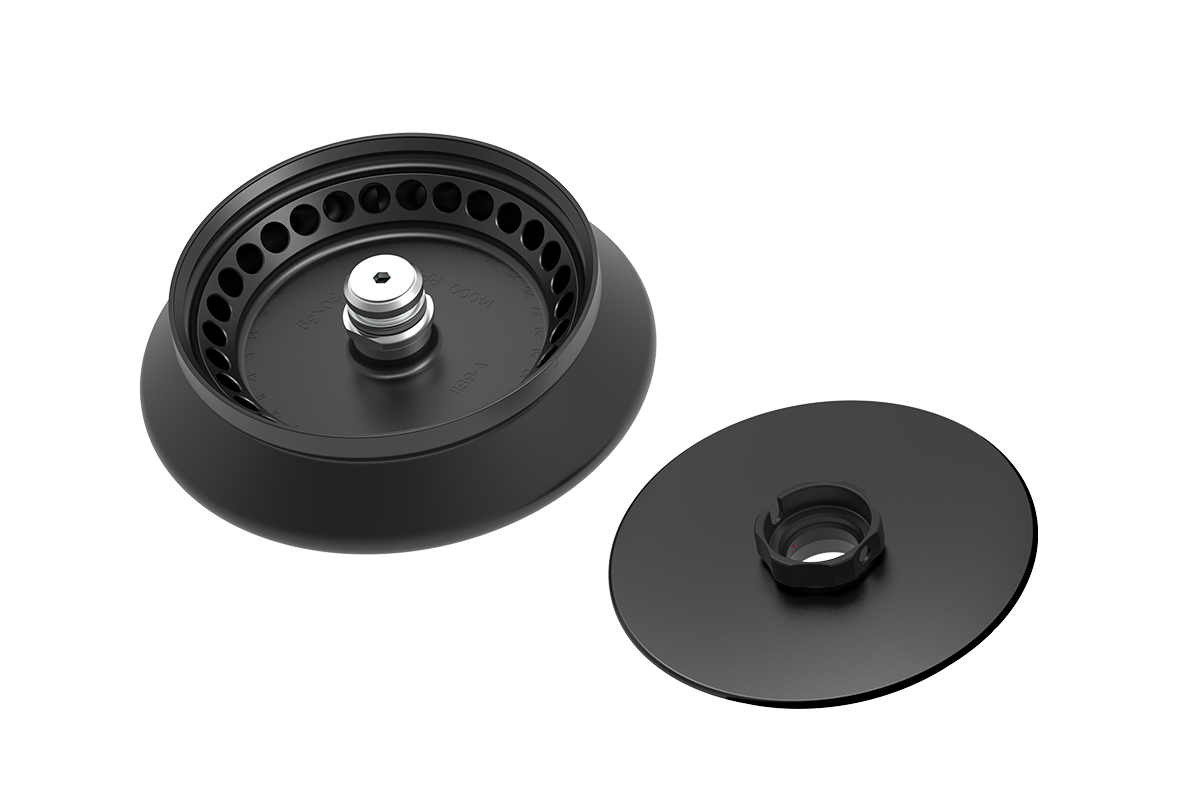

MICROLITER TUBE PACKAGE - 30 - BC
The MIKRO 220 Microliter Tube Package 30 BC comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, 30-place fixed-angle rotor, adapters for 1.5 mL tubes and an optional bio-containment lid. In addition to this package, many a-la-carte options are available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
30
1.5 - 2.0
--
≤ 14,000
≤ 21,255
Package Contents:
(1) Centrifuge, (1) Fixed-angle Rotor, (30) Adapters 1.5mL, (1) Bio-containment Lid
Request more information
MIKRO 220 / MIKRO 220 R

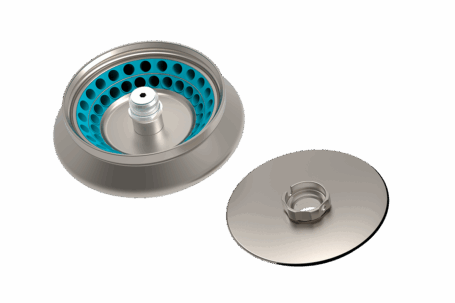

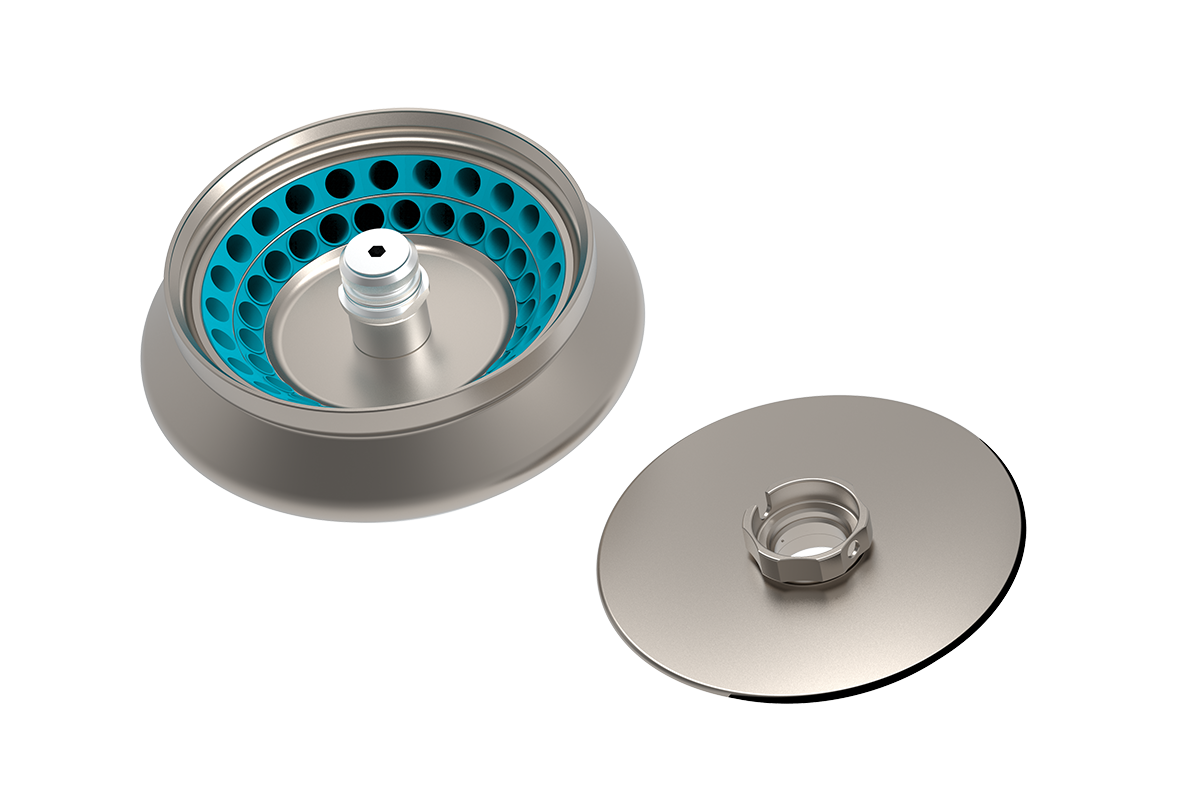

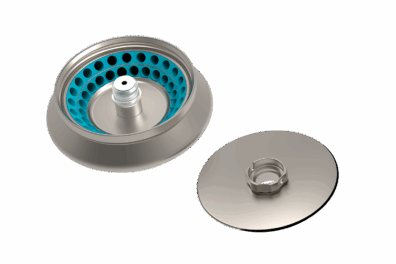

MICROLITER TUBE PACKAGE - 48 - BC
The MIKRO 220 Microliter Tube Package 48 BC comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, fixed-angle rotor, adapters for 1.5 mL tubes and a bio-containment lid. In addition to this package, many a-la-carte options are available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
48
1.5 - 2.0
--
≤ 14,000
≤ 18,845
Package Contents:
(1) Centrifuge, (1) Fixed-angle Rotor, (48) Adapters 1.5 mL, (1) Bio-containment Lid
Request more information
MIKRO 220 / MIKRO 220 R
MICROLITER TUBE PACKAGE - 90 - BC
The MIKRO 220 Microliter Tube Package 90 BC comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, horizontal rotor, adapters for 1.5 mL tubes and a bio-containment lid. In addition to this package, many a-la-carte options are available, contact us for more details.
Watch VideoTUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
24
1.5 - 2.0
--
≤ 13,000
≤ 18,516
Package Contents:

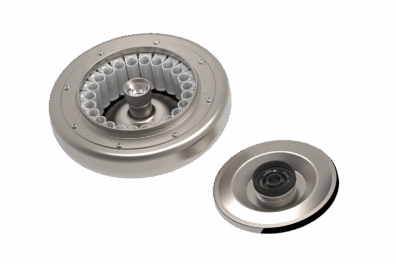

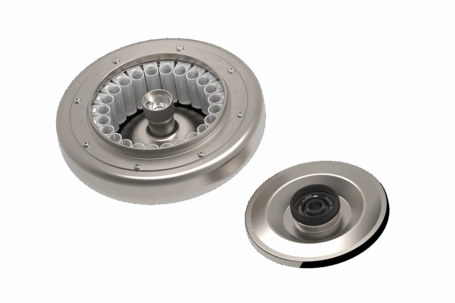

(1) Centrifuge, (1) Horizontal Rotor, (24) Adapters 1.5 mL, (1) Bio-containment Lid
Request more information
MIKRO 220 / MIKRO 220 R

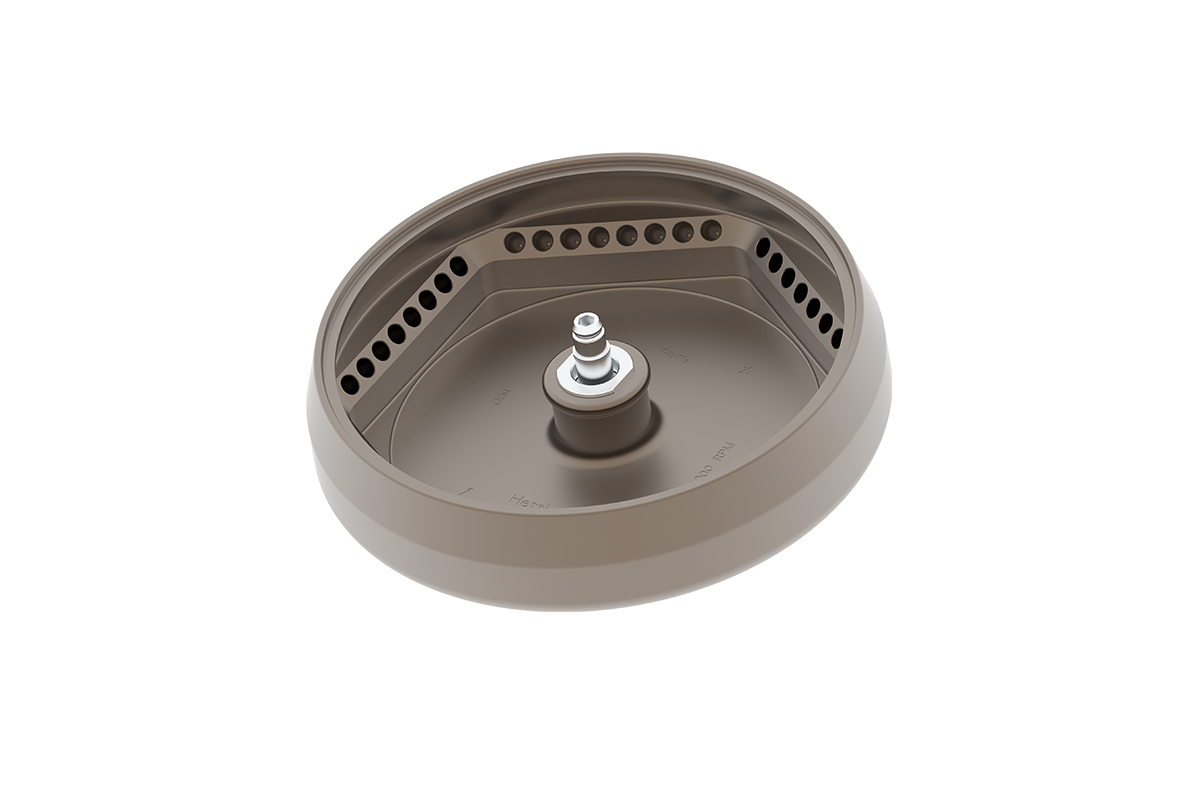

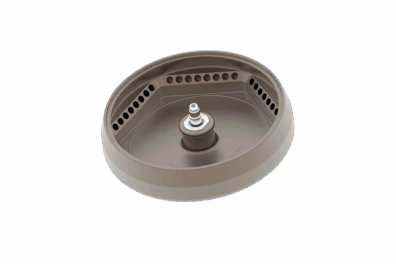

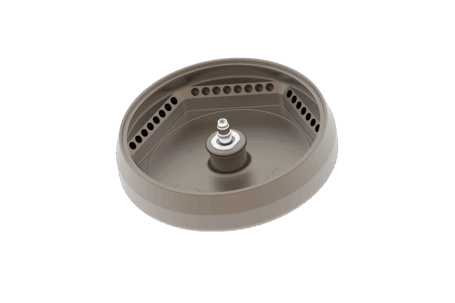

MICROLITER TUBE PACKAGE - STRIP
The MIKRO 220 Microliter Tube Strip Package comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge and fixed-angle rotor. In addition to this package, many a-la-carte options are available, contact us for more details.
STRIP QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
PCR strip: (8) 0.2
--
≤ 14,000
≤ 18,845
MIKRO 220 / MIKRO 220 R
CRYO TUBE Package
The MIKRO 220 Cryo Tube Package comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, fixed-angle rotor and optional bio-containment lid. In addition to this package, many a-la-carte options are available, contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
20
1.8
--
≤ 14,000
≤ 18,407
Package Contents:
(1) Centrifuge, (1) Fixed-angle Rotor, (1) Bio-containment Lid (optional)
Request more information
MIKRO 220 R

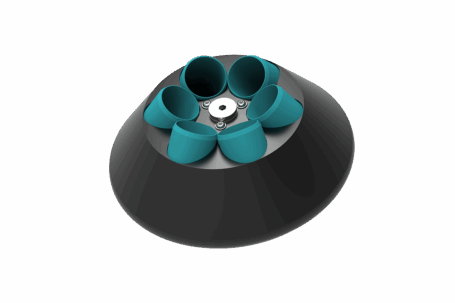

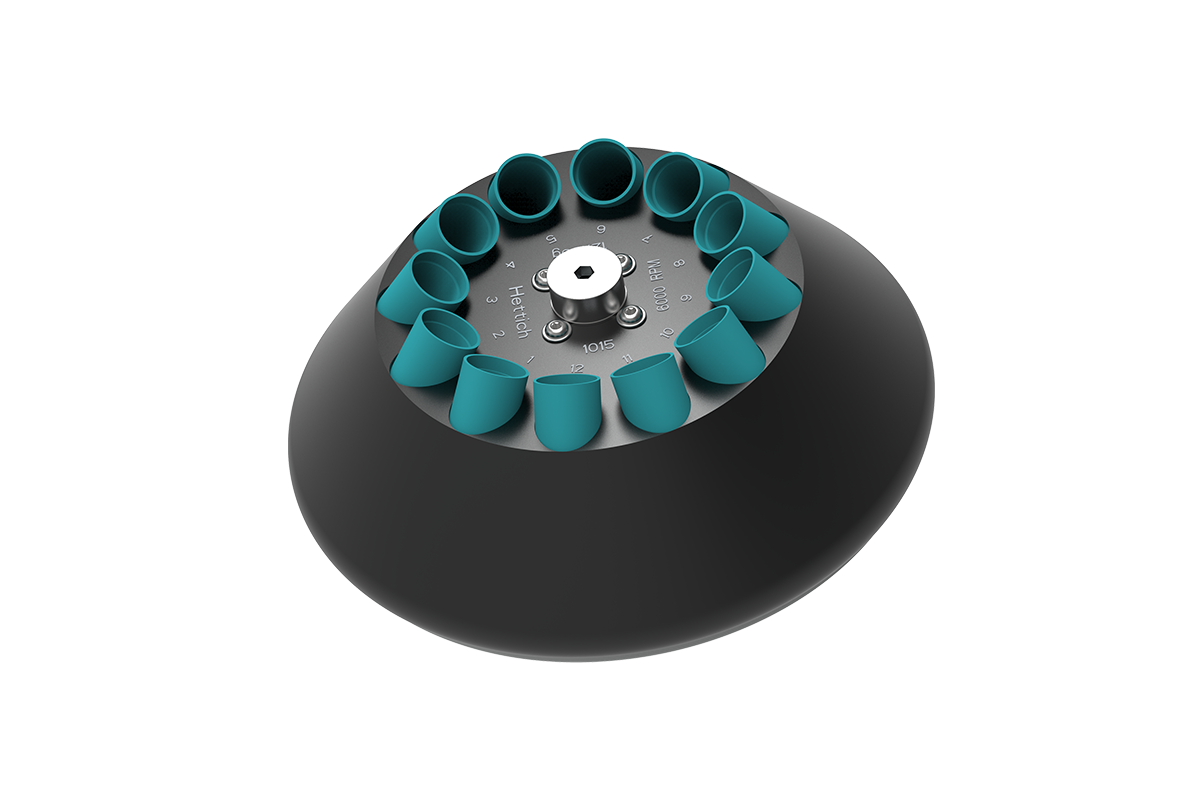

CELL CULTURE Package
The MIKRO 220 Cell Culture Package comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, fixed-angle rotor and adapters for 15 and 50 mL tubes. In addition to this package, many a-la-carte options are available, contact us for more details.
TUBE QTY.
VOLUME (mL)
SIZE (mm)
RPM
RCF
6
15
17 x 120
≤ 6,000
≤ 3,824
3
50
29 x 115
≤ 6,000
≤ 3,824
Package Contents:
(1) Centrifuge, (1) Fixed-angle Rotor, (6) Adapters 15 mL, (3) Adapters 50 mL
Request more informationSupports Over
82Application Configurations
TUBE OPTIONS
microliter, cryo, PCR strips, pediatric, blood, standard and conical up to 50 mL, hematology
MIKRO 220 | R Package
Hettich offers a complete centrifuge product range from small microliter centrifuges, compact tabletop centrifuges, medium to large benchtop centrifuges, high capacity benchtop centrifuges and floor standing centrifuges for general purpose and specialty applications. If you need a centrifuge, we have it, contact us to find the correct solutions for your lab.
Inquire for more infoSpecifications
MIKRO 220
MIKRO 200 R
Max. Capacity
48 x 1.5/2.0 ml, 6 x 50 ml
30 x 1.5/2.0 ml
Max. RPM/RCF
18,000/31,514
15,000/21,382
Temp. Control
Ambient
-10 to +40 °C
Dims. (HxWxD) mm
313 x 330 x 420
260 x 281 x 553
Dims. (HxWxD) in
12 x 13 x 16.5
10 x 11 x 22
Weight (kg)
21
28
Weight (lbs.)
46
62
Power supply
120 V
120 V
Warranty
5-years
5-years
Rotor Type(s)
Fixed-angle, Swing-out
Fixed-angle
Specifications
You may also consider...

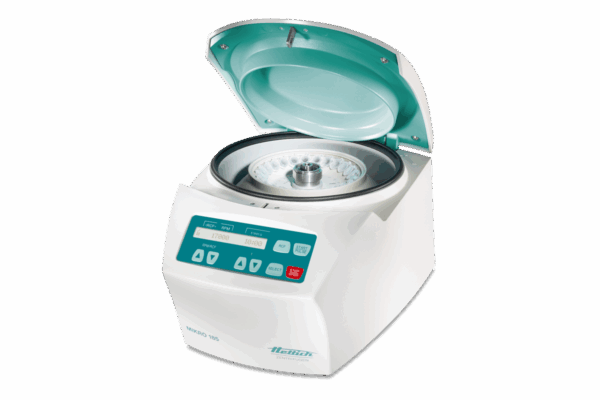

MIKRO 185
Run up to 24 microliter tubes, 12 pediatric tubes, or 18 spin column kits in a compact frame. High-performance with a max RCF of up to 18,845.
MIKRO 200
Up to 30 micro tubes with high RCF for best sample results. Specialty rotor designed for spin-column kits. 4-place PCR strip rotor available.
Resources

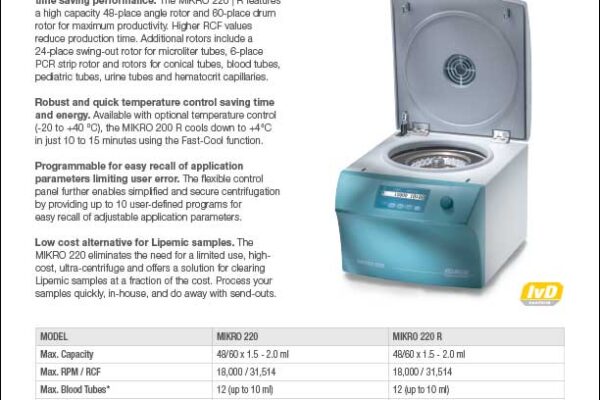

MIKRO 220 | R Product Sheet
